Safety Warnings
Assembly / User Instructions
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
Wall light with terminal connection block.
BH17 7BY

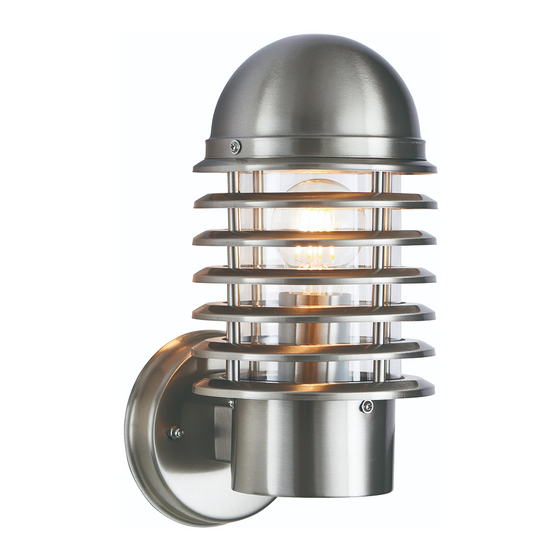

Louvre Outdoor Wall Fitting
INSTRUCTION MANUAL
(91792)
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
91792 Louvre
Advertisement
Table of Contents
Related Manuals for Saxby Lighting Louvre Outdoor Wall Fitting
Summary of Contents for Saxby Lighting Louvre Outdoor Wall Fitting
- Page 1 Louvre Outdoor Wall Fitting (91792) INSTRUCTION MANUAL Safety Warnings Assembly / User Instructions Check the packaging and make sure that you have all the required parts. Follow each assembly step in order to prevent incorrect assembly Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
- Page 2 Assembly / User Instructions Continued 1. Determine the position of your light fitting taking into account the exit position of the cable. Ensure that the mounting surface is solid, preferably a brick or block wall and ensure that there are no other cables or pipes beneath the surface.
