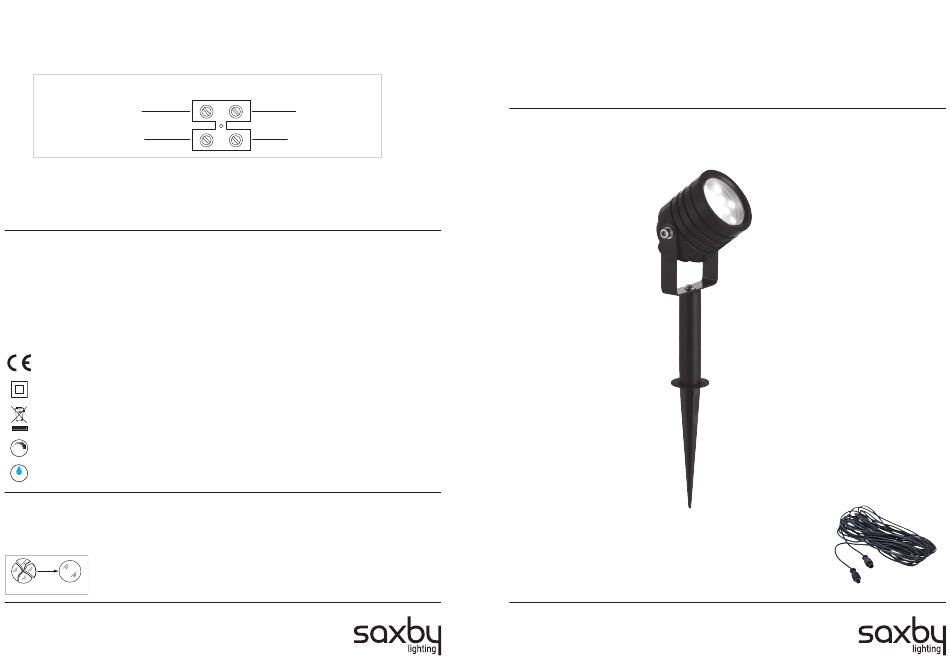

Wiring - Terminal Block
If not fitting to a plug then the product must be wired to a IP68 outdoor rated terminal block. We recommend item
90131/ 90132 (ourtdoor rated terminal block).
Having correctly identified the wiring from your existing light fitting, connect to the approved outdoor rated or
approved double insulated terminal block (not supplied) in the following way:
SUPPLY
NEUTRAL
SWITCHED LIVE
Check that...
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
Technical data
Supply
240V~, 50Hz
Voltage:
Output:
12V DC 5W Max. Constant voltage
Bulb
2.5W LED module (SMD) RGB
Type:
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is suitable for dimming.
This product is rated at IP65
65
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
LED module of this luminaire is not replaceable, when the LED reaches its end of life the whole
luminaire shall be replaced.
Replace Cracked Shade
V1 23/10/2020
Saxby Lighting. BH17 7BY
LIGHT FITTING
BLUE (N)
BROWN (L)
• Ensure that all cord grips are tightly secured.
• Ensure that all seals are re-fitted correctly.
Instruction manual

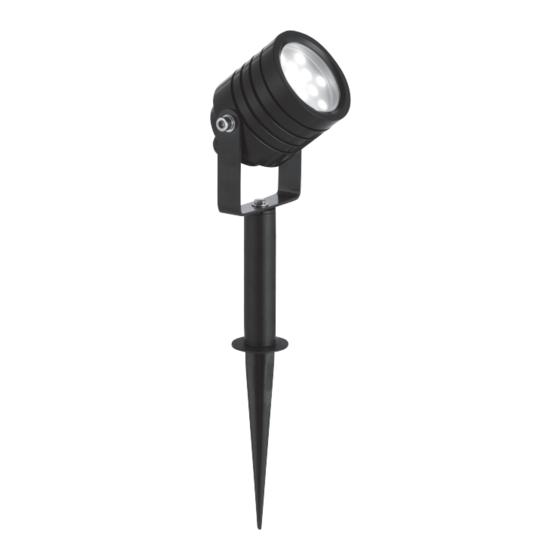

Luminatra Smart RGB
91963
www.saxbylighting.com
Accessory
92019 10m cable
(purchased separately)
