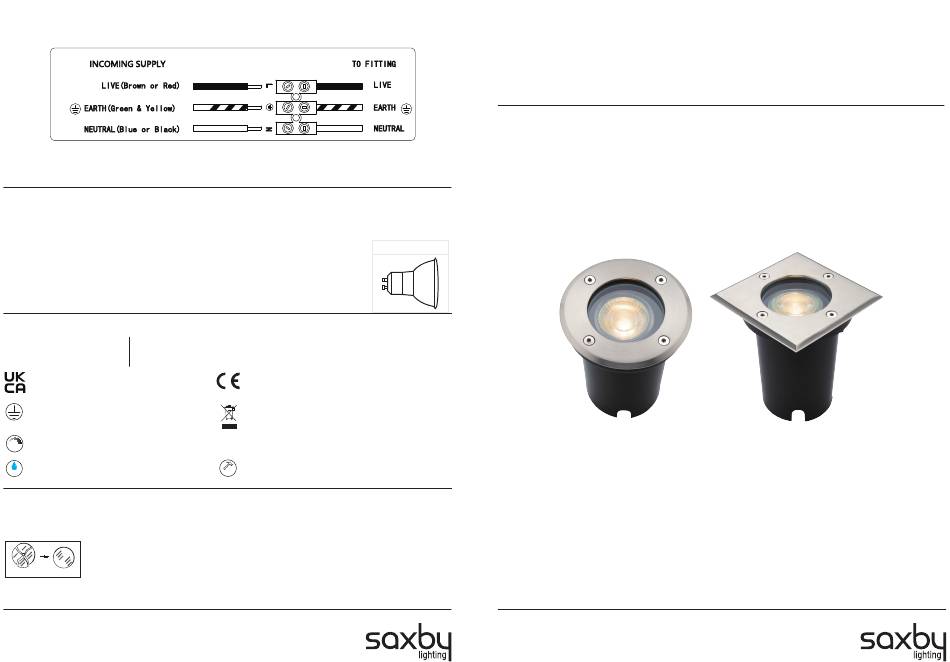

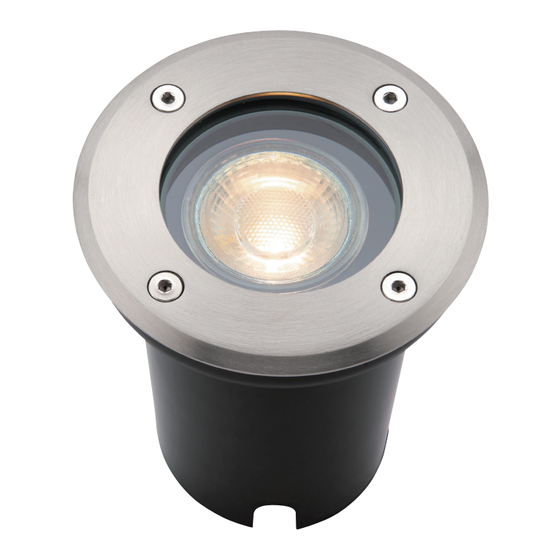

Saxby Lighting Pillar 114578 Instruction Manual

Wiring
The product must be wired to an outdoor rated junction box.
Check that...
You have correctly identified the wires. The connections are tight. No loose strands have been left out of the connection block.
Fitting/Replacing the bulb: Max. 7W LED GU10
When changing a bulb, always switch off at the mains and allow the bulb to cool before handling. Dispose of used
bulbs carefully and responsibly. Use a soft cloth to handle bulbs, avoid directly touching the bulbs as this will shorten
their life. Do not exceed the wattage stated or use a different shape bulb from that indicated on
the fitting. Use of the incorrect bulb will damage the product and invalidate the guarantee.
Check with your retailer re bulb dimming capability before purchasing replacement bulbs.
1. Unscrew the glass shape and the bezel.
2. Remove the shade and the old bulb by turning anti-clockwise. Then insert the new bulb and the shade.
3. Replace the the shade galss and the bezel ensuring that it is tightly secured.
Technical data
Supply Bulb
220-240V~, 50Hz
Max. 7W LED GU10 (required)
Voltage: Type:
Conformity with all relevant UKCA
Directive requirements.
This is a Class 1 product and must be earthed.
This product is suitable for dimming.
This product is rated at IP67.
67
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
The glass shade must be replaced immediately should the glass shade become cracked or damaged.
This fitting must not be used without the glass shade in place.
Replace Cracked Glass
V1 10/10/2024
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Max. 7W LED GU10
Conformity with all relevant EC
Directive requirements.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling
advice.
This product is rated at IK10.
10
IK
Instruction manual
