Having correctly identified the wiring from your existing light fitting, connect to the approved IP67 (or higher rated) terminal
block in the following way (recommended terminal block Ref. 90131/90132)
SUPPLY
NEUTRAL
SWITCHED LIVE
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
75527 / 78644--2W LED module (SMD), 4000K
Type:
78639 / 78640--3.5W LED module (SMD), 4000K
78637 / 78638--3.5W LED module (SMD), 4000K
78641-----------3.5W LED module (SMD), 3000K
99563-----------3.5W LED module (SMD), Blue
Except the 99563, these products contain a light source of energy efficiency class G.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
The LED module is protected by a shade. This part must be replaced immediately should the
shade become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/75527
V5 06/12/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
LIGHT FITTING
Check that...
BLUE (N)
You have correctly identified the wires.
The connections are tight.
BROWN (L)
No loose strands have been left out of the
connection block.
Non-replaceable control gear
Instruction manual

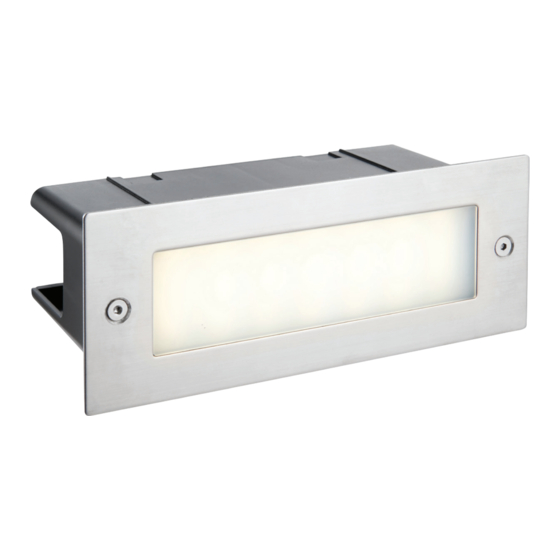

Seina
75527, 78644, 78639, 78640, 78637, 78638, 78641, 99563
75527
78639
78637
99563
www.saxbylighting.com
78644
78640
78638
78641
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Saxby Lighting Seina
Summary of Contents for Saxby Lighting Seina

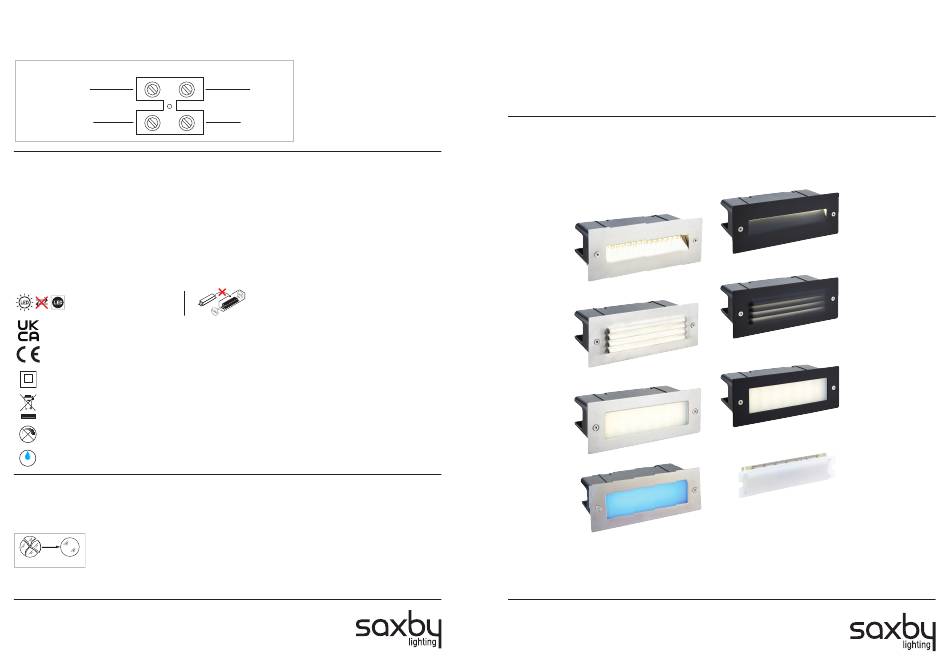

- Page 1 Wiring Instruction manual Having correctly identified the wiring from your existing light fitting, connect to the approved IP67 (or higher rated) terminal block in the following way (recommended terminal block Ref. 90131/90132) Seina SUPPLY LIGHT FITTING Check that... 75527, 78644, 78639, 78640, 78637, 78638, 78641, 99563...
