Saxby Lighting Kios 2 Instruction Manual

Connectors
make sure that arrows molded on
connectors facing each other.
Check that...
You have to correctly identified the wires.
The connections are tight.
Technical data
Supply
240 V~, 50 Hz
Voltage:
75530-10 x 0.45W LED module (SMD), 6500K
Bulb
Type: 94422-10 x 0.45W LED module (SMD), Blue
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Class III product - designed to be supplied from a SELV
(Separated or Safety Extra-Low Voltage) power source.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
To prolong the life and condition of the product, it is recommended that periodically it is cleaned using a
soft cloth followed by the application of a light coating of oil, such as WD40.
Do not clean the units with a pressure washer.
V1 13/08/2020
Saxby Lighting. BH17 7BY
BS Plug-in LED driver Rico Electronic
Model: RKP-UK1200500DP-1
Input: 100-240V~, 50/60 Hz
Output: CV 12V, 500 mA 6W max IP20 TUV CE approved
Instruction manual

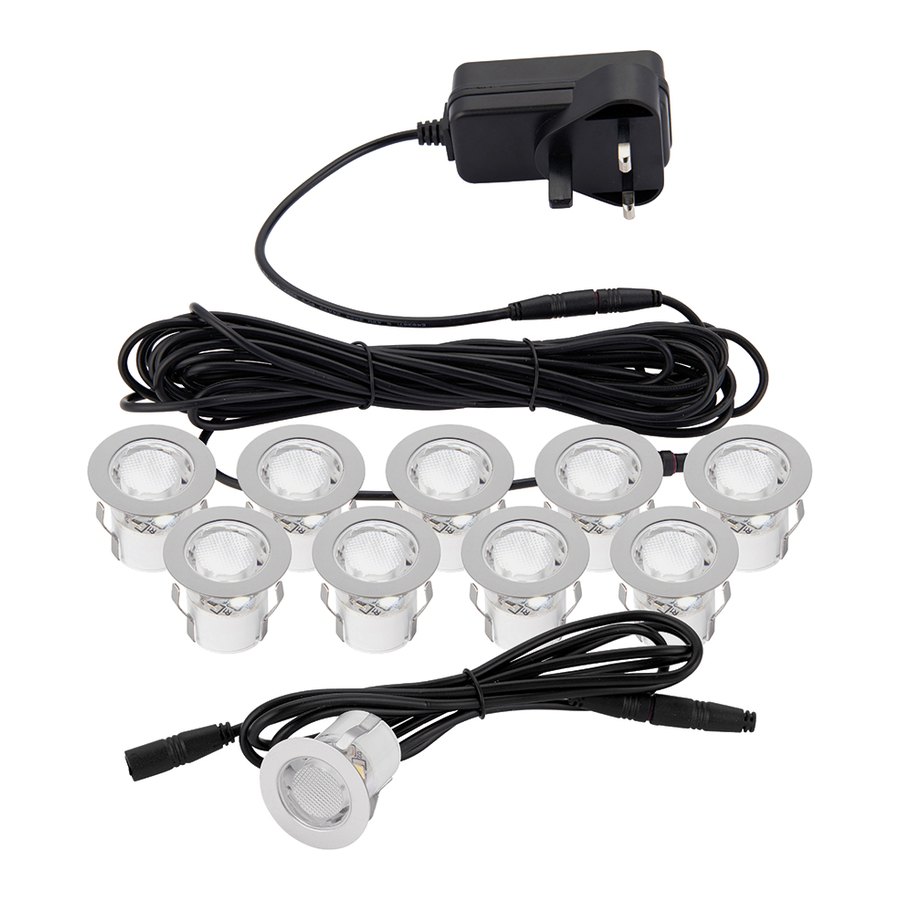

Kios 2 LED Kit
75530, 94422
www.saxbylighting.com
