Saxby Lighting HOXTON RECESSED Instruction Manual

Wiring
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
connection block inside the product in the following way:
SUPPLY
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
Check that...
• You have to correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
Technical data
Supply
240 V~, 50 Hz
Voltage:
Bulb
10.5W LED module (COB), 4000K
Type:
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP67.
67
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This LED's are protected by a plastic lens. The lens part must be replaced immediately should
it become cracked or damaged. This fitting must not be used without the plastic lens in place.
Replace Cracked Shade
V1 05/12/2019
Saxby Lighting. BH17 7BY
LIGHT FITTING
BLUE (N)
GREEN/YELLOW
BROWN (L)
• When completed, ensure that there are no bare or loose
strands of wire exposed, and cover all exposed areas of
the connection block with 2 layers of insulation tape.
Instruction manual

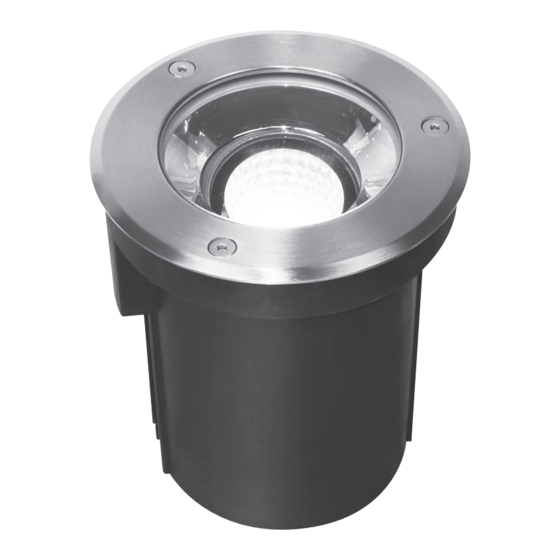

HOXTON RECESSED
90963
