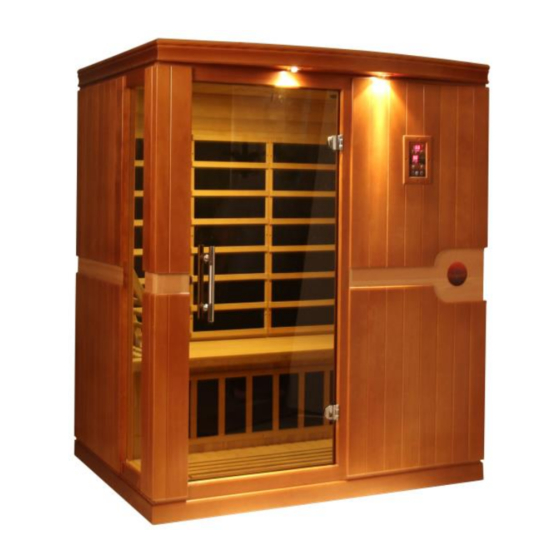

Dynamic Saunas DYN6210 Owner's Manual

1 person, 2 person, and 3 person saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

DYN6210 / DYN6310
1 Person, 2 Person, and 3 Person Saunas
OWNER'S MANUAL
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
DYN6110 & DYN6210 - 120V 15 AMP / DYN6310 - 120V 20 AMP
DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYN6210 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynamic Saunas DYN6210

Summary of Contents for Dynamic Saunas DYN6210

  • Page 1 OWNER’S MANUAL FOR CARBON MODEL SAUNAS FOR INDOOR USE ONLY DYN6110 & DYN6210 - 120V 15 AMP / DYN6310 - 120V 20 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
  • Page 2 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 4 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increases blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 6: Parts Description

    PARTS DESCRIPTION...
  • Page 7 I. Power Supply (Control Box) The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see Figure 1) Figure 1 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cords...
  • Page 8 III. Buckles A. External Buckles The external buckles are used to connect the REAR WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. (see Figure 2) Figure 2 B. Metal Guide Insert Brackets The Metal Guide Insert Brackets connect the FRONT WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL.
  • Page 9 IV. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When you place the FLOOR PANEL at its designated location, leave enough space so that you are able to move around the FLOOR PANEL in order to install the sauna wall panels. To identify the front of the FLOOR PANEL, locate the FLOOR HEAT EMITTER PANEL (with the wood grid cover).

  • Page 10: Assembly Instructions

    C. Roof Panel The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and reading lamp. Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the roof. Assembly Instructions Choose a good location to assemble the sauna The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation...
  • Page 11 Tools Required: Philips Screwdriver and Ladder Installing the FLOOR PANEL Place the FLOOR PANEL on the floor. (Note: The floor heater cord is located on the left side and to the rear of the sauna room.) (see Figure 8) Wood Guide Inserts Figure 8 C.
  • Page 12 D. Installing the REAR PANEL Remove the protection paper from the buckles on the REAR WALL PANEL. Place the REAR WALL PANEL up onto the FLOOR PANEL. Next, attach the REAR WALL PANEL to the RIGHT SIDE WALL PANEL and use the buckles to latch together. Do the same for the LEFT SIDE WALL PANEL.
  • Page 13 Figure 11 F. Installing the FRONT GLASS DOOR HANDLE Now that the FRONT WALL PANEL has already been installed, the inner and outer door handles need to be mounted to the FRONT GLASS DOOR. According to Figure 12 and Figure 13, the FRONT GLASS DOOR must sit between the (2) white washers. The screws are inserted from the inside of the FRONT GLASS DOOR and screwed into the outer handle.
  • Page 14 Figure 13 Figure 14 Figure 12 G. Installing the ROOF PANEL The side of the ROOF PANEL with the power supply (control box) is the top side of the ROOF PANEL. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the panels.
  • Page 15 Figure 15 H. Connecting the plugs on the ROOF PANEL Connect the plugs according to their respective labels. (see Figure 16) Connect the CTRL plug from the power supply box to the CTRL plug from the control panel. Then screw together. (see Figure 17) Connect the buzzer connection.
  • Page 16 (Models with Bluetooth) Installing the TEMPERATURE SENSOR and Optional SHELF Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 19) Figure 19...
  • Page 17 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged during transit. The manufacturer decides this according to sauna models and packaging. 2. If your sauna comes with the optional MP3 shelf, use the two screws provided to mount the self on either the side panels or front panel.

  • Page 18: Operating The Sauna

    Figure 23 Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 19 don’t press the button for 5 seconds, the control panel will stop flashing and the set-up values will be memorized. The WORK and HEAT lights will now be on and the emitters will now be generating heat. You will need to pre-heat the sauna room to the set temperature before entering. Please keep in mind that you will increase the time it takes for the sauna room to reach the set temperature if you enter the sauna room before it has reached the set temperature.
  • Page 20 Control Panel (Standard) Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...
  • Page 21 Heating times do vary. Generally, it will take approximately twenty to thirty minutes to preheat the sauna to 50 degrees Celsius / 122 degrees Fahrenheit. When the ambient temperature is low, heating requires additional time. For the first few times of use, you may use 46 degrees Celsius /115 degrees Fahrenheit as a reference starting point for a time period of about 15 minutes (this represents the actual time you are in the sauna at the desired temperature).

  • Page 22: Tips For Using Your Sauna

    Control Panel (Optional) Power On/Off: Press to control the main power of the sauna Work Start/Stop: Press to control the working functions of the sauna Light: Press to control the lighting function Time Function: Press to get into the timer function Time Adjust: Press to adjust the timer setting Temperature Display: Press to get into the temperature function Temperature Adjust: Press to adjust the temperature setting...

  • Page 23: Safety Instructions

    Safety Instructions Read and follow all instructions carefully before using the sauna. When installing and using the electrical equipment, safety precautions should always be followed. To reduce the risk of injury, do not allow children to use the sauna unless they are closely supervised at all times by an adult.

  • Page 24: Safeguards For Your Sauna

    Safeguards For Your Sauna 1. Do not install the sauna near water, near a bathtub, near a shower, in a wet basement, or near a swimming pool. Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall outlet before cleaning.
  • Page 25 3. Sauna Shows Signs Of No Power Solution: There could be one of a few problems causing this. First, check to see if the cord from the power supply is plugged into the wall outlet. Also check your main circuit breaker to confirm that it has not tripped.

  • Page 26: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.

  • Page 27: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.

This manual is also suitable for:

Dyn6310
