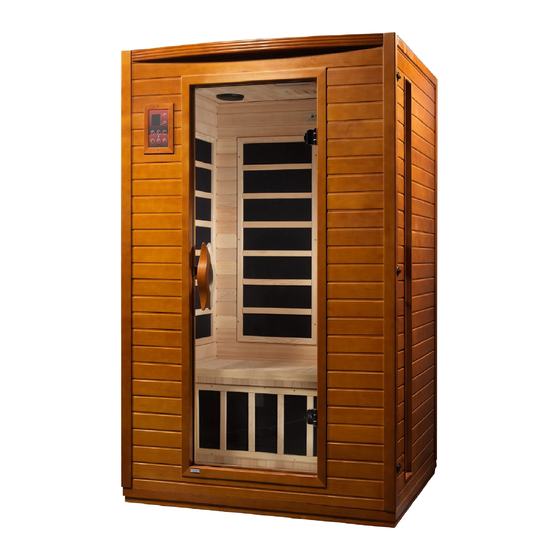

Dynamic Saunas DYN6202 Owner's Manual

2-4 person sauna
Hide thumbs Also See for DYN6202:

Advertisement

Table of Contents

Meijer.com
DYN6202 / DYN6434 / DYN6444
2 ‐ 4 Person Sauna
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP (2-PERSON MODELS) DEDICATED CIRCUIT
120VAC 20 AMP (3 & 4 PERSON MODELS) DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYN6202 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynamic Saunas DYN6202

Summary of Contents for Dynamic Saunas DYN6202

  • Page 1 Meijer.com DYN6202 / DYN6434 / DYN6444 2 ‐ 4 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP (2-PERSON MODELS) DEDICATED CIRCUIT 120VAC 20 AMP (3 & 4 PERSON MODELS) DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality.
  • Page 2 Meijer.com *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* DYN-6202 DYN-6434 *The above assembly diagrams are quick reference visual guides only. All sauna models are not shown. Model types, parts, and accessories may vary.
  • Page 3 Meijer.com WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 Meijer.com HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 5 Meijer.com Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 6: Table Of Contents

    Meijer.com TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.

  • Page 7: Parts Description

    Meijer.com PARTS DESCRIPTION A.FRONT OF SAUNA (see figure 1) B.INSIDE OF SAUNA (see figure 2) Figure 1 Figure 2 1) Control Panel 2) Door Handle 3) Tempered Glass Door 4) Speaker 5) Temperature Sensor 6) Ventilation Grid 7) Back Protection Grid 8) MP3 Auxiliary Socket...
  • Page 8 Meijer.com I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 3) Figure 3 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cords LIGHT...
  • Page 9 Meijer.com III. Component Labeling POWER Power Cord HT1, HT2, HT3, HT4 Emitter (heater) power cords LIGHT Reading lamp connector CTRL Control panel connector CD/SIG For CD/temperature sensor/buzzer/etc. connectors L/SPEAKER Left speaker connector R/SPEAKER Right speaker connector TEMP SENSOR Temperature sensor BUZZER Buzzer connector MP3 AUX INPUT...
  • Page 10 Meijer.com Figure 6 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When the floor panel faces upward, you will find (4) raised moldings with (2) notches. The rear and front of the floor panel have no notches. The notches are on the right and left sides of the floor.

  • Page 11: Assembly Instructions

    Meijer.com Rear Panel The rear panel has the three heat emitter panels side-by-side. (see figure 9) Figure 9 Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitters on the inside of the rear panels. Assembly Instructions Choose a good location to install the sauna The location must be dry, leveled, and away from any source of water...
  • Page 12 Meijer.com Installing the REAR PANEL and SIDE PANELS Remove the protection paper from the buckles. Place the REAR PANEL onto the recessed area on the FLOOR PANEL. Attach the REAR PANEL to the SIDE PANELS and buckle together. (see figure 10) Figure 10 D.
  • Page 13 Meijer.com Installing the BENCH EMITTER PANEL and BENCH Slide down the BENCH EMITTER PANEL by lining up its sides with the vertical guides on each side panel. The emitter grid will face outward. Push the BENCH EMITTER PANEL all the way down until it is touching the FLOOR PANEL and is secured in place. Plug in the BENCH EMITTER connector to the inlet located on the REAR or SIDE PANEL depending on your model sauna.
  • Page 14 Meijer.com G. Connecting the plugs on the ROOF PANEL Connect the plugs according to the respective labels. (see figure 13 – 15) Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then screw together. Connect the buzzer connection.
  • Page 15 Meijer.com Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit. The manufacturer decides this according to sauna models and packaging. Installing the Radio (optional) 1. Remove the two screws from the top of the CD player and discard. Put in the CD/radio from the outside.
  • Page 16 Meijer.com Screw the RADIO BOX to the FRONT PANEL. The back opening on the RADIO BOX will face the FRONT PANEL. Figure 22 Figure 23 Figure 24 K. Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Take care in pulling the power cord through the hole in the roof cover.

  • Page 17: Operating The Sauna

    Meijer.com Figure 26 Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 18 Meijer.com Heating times do vary. Generally, it will take approximately twenty to thirty minutes to preheat the sauna to 50 degrees Celsius / 122 degrees Fahrenheit. When the ambient temperature is low, heating requires additional time. For the first few times of use, you may use 46 degrees Celsius / 115 degrees Fahrenheit as a reference starting point for a time period of about 15 minutes (this represents the actual time you are in the sauna at the desired temperature).

  • Page 19: Tips For Using Your Sauna

    Meijer.com CONTROL PANEL Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicate the working status of the sauna Heat Indicator: Indicate the status of heating function Light: Press to control the lighting function Time Display: Display the heating time of the sauna in minutes...

  • Page 20: Safety Instructions

    Meijer.com immune system and decreasing the reproductive rate of viruses. 6) To help relieve sore and tense muscles, massage the affected areas during your sauna session. 7) To treat your ankles and feet more effectively, you can elevate them and move them close to one of the heat emitters to achieve a deep heating effect.

  • Page 21: Safeguards For Your Sauna

    Meijer.com of electric shock. Never touch the metal prongs of the plug. 18) Do not attempt to make any repairs yourself. If a problem occurs with the sauna, please contact seller, distributor, or the manufacturer to avoid safety risks. Unauthorized repair attempts will void manufacturer’s warranty.
  • Page 22 Meijer.com “TEMP SENSOR” (you just connected) down the vent on the roof so that it is now inside the sauna. Then go to the control panel and press the power button. If the heat emitters now have heat, then the “TEMP SENSOR”...

  • Page 23: Warranty

    Extent of Warranty This limited warranty applies to products manufactured or distributed by Golden Designs, Inc. under the Dynamic brand name, delivered in the continental United States or Canada and extends to the original purchaser at the original site of installation only.
  • Page 24 Meijer.com PAGE INTENTIONALLY LEFT BLANK...

  • Page 25: Warranty Card

    Meijer.com WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
