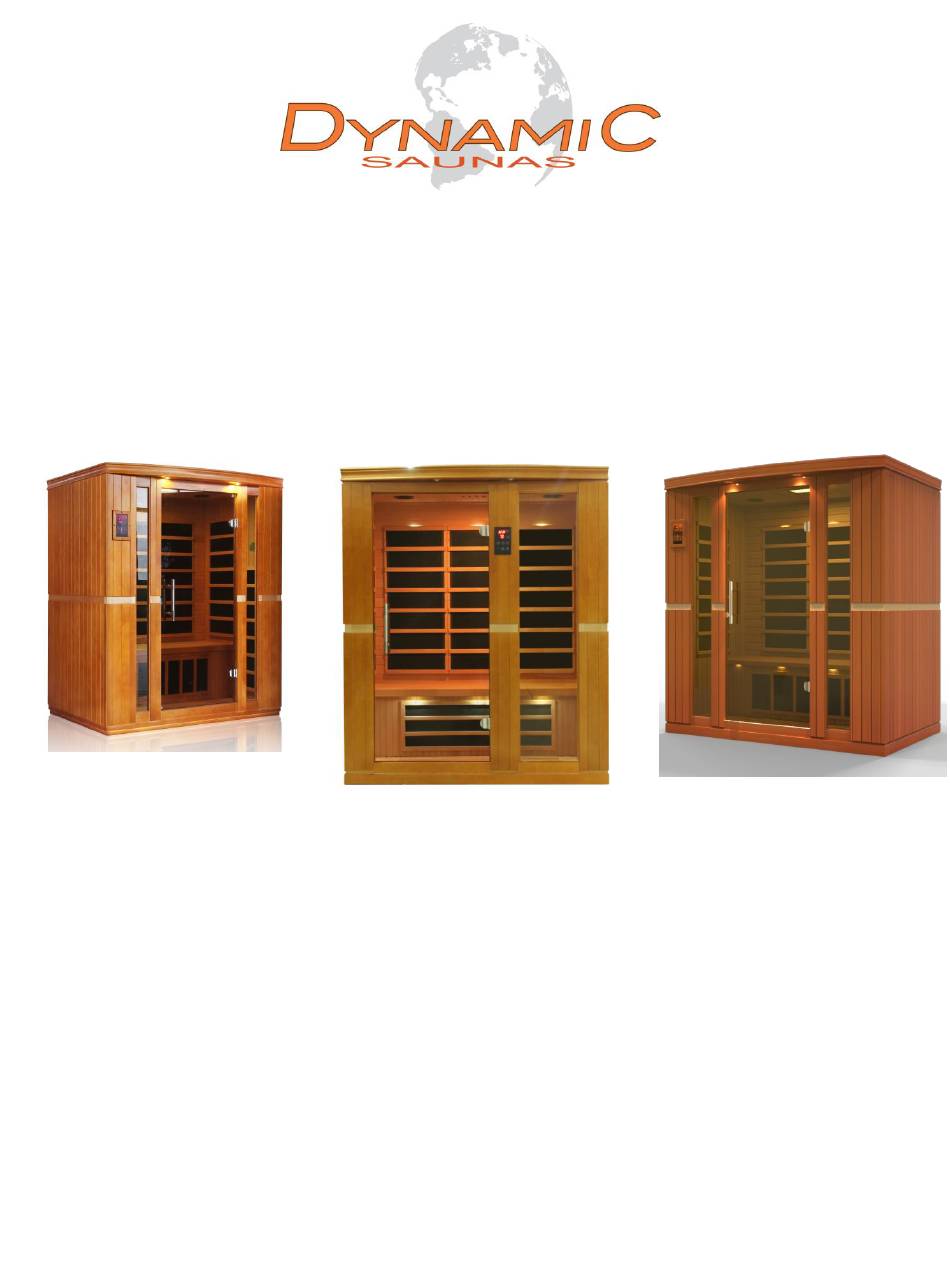

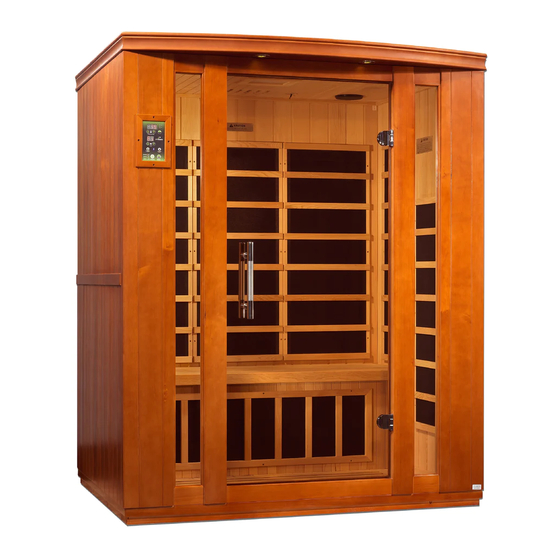

DYN-6220-01 / DYN-6306-01 /DYN-
6330-01/DYN-6440-01
2 Person, 3 Person & 4 Person Saunas
OWNER'S MANUAL
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
DYN-6220-01 requires 120V 15 AMP DEDICATED CIRCUIT
DYN-6306-01/DYN-6330-01/DYN-6440-01 requires 120V 20 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.
1
Advertisement
Table of Contents
Related Manuals for Dynamic Saunas DYN-6306-01
Summary of Contents for Dynamic Saunas DYN-6306-01
- Page 1 FOR INDOOR USE ONLY DYN-6220-01 requires 120V 15 AMP DEDICATED CIRCUIT DYN-6306-01/DYN-6330-01/DYN-6440-01 requires 120V 20 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
- Page 2 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
- Page 3 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
- Page 4 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increases blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. -
Page 6: Parts Description
PARTS DESCRIPTION DYN-6220-01 DYN-6306-01... - Page 7 PARTS DESCRIPTION DYN-6330-01 DYN-6440-01...
- Page 8 I. Power Supply (Control Box) The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see Figure 1) Power Supply 1 Power Supply 2 Figure 1 Figure 1A MAIN POWER - main power of the sauna room...
- Page 9 III. Buckles A. External Buckles The external buckles are used to connect the REAR WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. (see Figure 2) Figure 2 B. Metal Guide Insert Brackets The Metal Guide Insert Brackets connect the FRONT WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL.
- Page 10 IV. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When you place the FLOOR PANEL at its designated location, leave enough space so that you are able to move around the FLOOR PANEL in order to install the sauna wall panels. To identify the front of the FLOOR PANEL, locate the FLOOR HEAT EMITTER PANEL (with the wood grid cover).
-
Page 11: Assembly Instructions
C. Roof Panel The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and reading lamp. Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the roof. Assembly Instructions Choose a good location to assemble the sauna The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation... - Page 12 Installing the FLOOR PANEL Place the FLOOR PANEL on the floor. (Note: The floor heater cord is located on the left side and to the rear of the sauna room.) (see Figure 8) Wood Guide Inserts Figure 8 C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANEL Place the FRONT WALL PANEL up onto the FLOOR PANEL.
- Page 13 D. Installing the REAR PANEL Remove the protection paper from the buckles on the REAR WALL PANEL. Place the REAR WALL PANEL up onto the FLOOR PANEL. Next, attach the REAR WALL PANEL to the LEFT SIDE WALL PANEL and use the buckles to latch together. Do the same for the RIGHT SIDE WALL PANEL.
- Page 14 REAR WALL PANEL for sauna model DYN-6220-01 and to the corresponding inlet located on the RIGHT SIDE WALL PANEL for sauna models DYN-6306-01/DYN-6330- 01/DYN-6440-01. Also plug the FLOOR HEAT EMITTER PANEL into the left side of the REAR WALL PANEL for sauna model DYN-6220-01 and into the LEFT SIDE WALL PANEL on sauna models DYN-6306-01/DYN-6330-01/DYN-6440-01.
- Page 15 PLEASE NOTE: If your sauna has the optional LED Accent Lighting above the REAR WALL HEAT EMITTER PANELS and below the BENCH, you will need to connect the connector from the black/white wires coming from the BENCH (located underneath the bench) to the black/white wire connector at the REAR WALL PANEL.
- Page 16 Figure 16 Figure 17 Figure 17a (Models with Bluetooth)
- Page 17 (POWER SUPPLY 2) Connect the plugs according to their respective labels. (see Figure 18) You will need to connect the right and left speaker connectors, the MP3 connector, and the CTRL harness wire connector. Before Connecting After Connecting Figure 18 Installing the TEMPERATURE SENSOR and Optional SHELF Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.
- Page 18 2. If your sauna comes with the optional MP3 shelf, use the two screws provided to mount the self on either the side panels or front panel. This shelf is not offered on all models (see figure Figure 20 3. If your sauna comes with the optional Magazine Rack and/or optional Towel Rack, use the screws provided to mount the Magazine Rack in the lower left hand side of the interior FRONT WALL PANEL (in front of the glass window panel) and the Towel Rack to the interior RIGHT SIDE WALL PANEL.
-
Page 19: Operating The Sauna
Figure 23 Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit). - Page 20 Heating times do vary. Generally, it will take approximately twenty to thirty minutes to preheat the sauna to 50 degrees Celsius / 122 degrees Fahrenheit. When the ambient temperature is low, heating requires additional time. For the first few times of use, you may use 46 degrees Celsius /115 degrees Fahrenheit as a reference starting point for a time period of about 15 minutes (this represents the actual time you are in the sauna at the desired temperature).
- Page 21 Control Panel (Optional) (Power Supply 1) Power On/Off: Press to control the main power of the sauna Work Start/Stop: Press to control the working functions of the sauna Light: Press to control the lighting function Time Function: Press to get into the timer function Time Adjust: Press to adjust the timer setting Temperature Display: Press to get into the temperature function Temperature Adjust: Press to adjust the temperature setting...
-
Page 22: Tips For Using Your Sauna
Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation or leave the door open slightly. -
Page 23: Safeguards For Your Sauna
Persons using medications should consult a physician before using the sauna. Some medications may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation. 10. Exercise care before and after sauna use. 11. Never sleep inside the sauna. 12. -
Page 24: Troubleshooting Guide
Troubleshooting Guide 1. No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power supply. - Page 25 inside the sauna. Then go to the control panel and press the power button. If the heat emitters now heat, then the temperature sensor was the cause of the problem. You may have to wait about five minutes to confirm if the heat emitters are generating heat. Remove the original temperature sensor from its hole and replace it with the spare one.
-
Page 26: Warranty
Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty. -
Page 27: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
