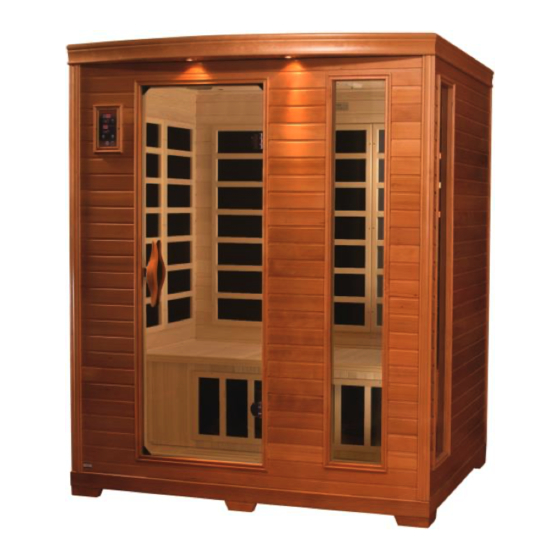

Dynamic Saunas DYN6434 Owner's Manual

2-4 person sauna
Hide thumbs Also See for DYN6434:
Table of Contents

Advertisement

Quick Links

Download this manual

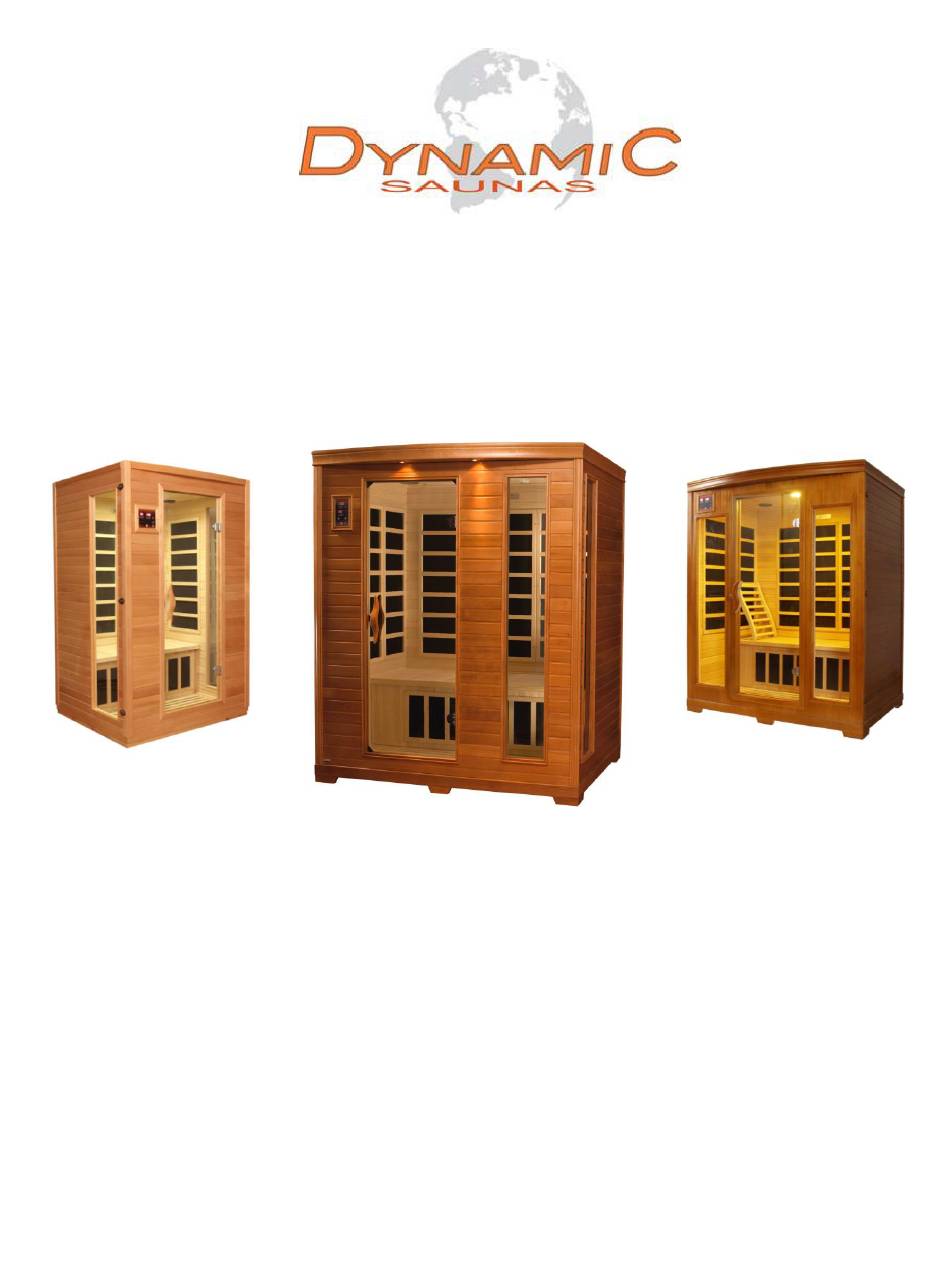

DYN6202 / DYN6434 / DYN6444
2 ‐ 4 Person Sauna
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP (2-PERSON MODELS) DEDICATED CIRCUIT
120VAC 20 AMP (3 & 4 PERSON MODELS) DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYN6434 and is the answer not in the manual?

Questions and answers

Gloria Ego
February 14, 2025

Looking for a replacement restart button

0

Related Manuals for Dynamic Saunas DYN6434

Summary of Contents for Dynamic Saunas DYN6434

  • Page 1 DYN6202 / DYN6434 / DYN6444 2 ‐ 4 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP (2-PERSON MODELS) DEDICATED CIRCUIT 120VAC 20 AMP (3 & 4 PERSON MODELS) DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality.
  • Page 2 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 4 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.

  • Page 6: Parts Description

    PARTS DESCRIPTION DYN6202 DYN6444...
  • Page 7 DYN6434 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 1) Figure 1 MAIN POWER main power of the sauna room...
  • Page 8 II. Component Labeling POWER Power Cord HT1, HT2, HT3, HT4 Emitter (heater) power cords LIGHT Reading lamp connector CTRL Control panel connector CD/SIG For CD/temperature sensor/buzzer/etc. connectors L/SPEAKER Left speaker connector R/SPEAKER Right speaker connector TEMP SENSOR Temperature sensor BUZZER Buzzer connector MP3 AUX INPUT MP3 /radio connection...
  • Page 9 B. Guide and Guide Inserts The guide and guide inserts are used to connect the FRONT PANEL to the RIGHT SIDE PANEL and the LEFT SIDE PANEL. (see figure 4) Figure 4 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A.
  • Page 10 Understanding The Difference Between The Top And Bottom Of The Wall Panels The (4) panels are in the upright position when the moldings are at the top. The moldings will face inward. (see figure 6) Figure 6 Understanding The Wall Panels The REAR WALL PANEL and the FRONT WALL PANEL with the GLASS DOOR are the largest of the wall panels.

  • Page 11: Assembly Instructions

    Figure 9 Assembly Instructions Choose a good location to install the sauna The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation Wood cabin installation order: Floor Panel Front Panel Left Side Panel Right Side...
  • Page 12 C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANEL 1. Place the FRONT WALL PANEL up onto the FLOOR PANEL. Align the Metal Guide Insert Brackets on the FRONT WALL PANEL and the LEFT SIDE WALL PANEL. The LEFT SIDE WALL PANEL will need to be lifted in order to lock the Metal Guide Insert Brackets onto the FRONT WALL PANEL.
  • Page 13 Installing the BENCH EMITTER PANEL and BENCH 1. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will need to slide the BENCH HEAT EMITTER PANEL into place at an angle as indicated in the pictures below. (see Figure 12) 2.
  • Page 14 Figure 13 G. Connecting the plugs on the ROOF PANEL Connect the plugs according to the respective labels. (see figure 14 – 16) Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then screw together.
  • Page 15 H. Installing the TEMPERATURE SENSOR and Optional MAGAZINE RACK/TOWEL RACK/SHELF 1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure Figure 18 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit.

  • Page 16: Operating The Sauna

    I. Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Take care in pulling the power cord through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel.
  • Page 17 arrows under the TEMPERATURE DISPLAY to adjust the temperature setting. Once you have set these adjustments to the desired settings, press the START/WORK button. If you don’t press the button for 5 seconds, the control panel will stop flashing and the set-up values will be memorized.
  • Page 18 To operate the radio, press the power button to turn on the CD/RADIO player. Press the band to choose between the FM/AM frequency on the radio. You must place the radio antenna above the roof cover to receive a radio station signal. To use the CD function, insert the CD disk into the top (into the CD slot) of the radio.

  • Page 19: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation or leave the door open slightly.

  • Page 20: Safeguards For Your Sauna

    9.) Persons using medications should consult a physician before using the sauna. Some medications may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation. 10) Exercise care before and after sauna use. 11) Never sleep inside the sauna. 12) Do not use any type of cleaning agents on the interior of the sauna.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide 1. No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power supply.
  • Page 22 black wire near the air vent towards the rear of the sauna. After you have located the red and black wires labeled “TEMP SENSOR”, disconnect them. Connect the spare temperature sensor. For testing purposes, insert the “TEMP SENSOR” (you just connected) down the vent on the roof so that it is now inside the sauna.

  • Page 23: Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 24 PAGE INTENTIONALLY LEFT BLANK...

  • Page 25: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
