DYN-6240-02 / DYN6340-02

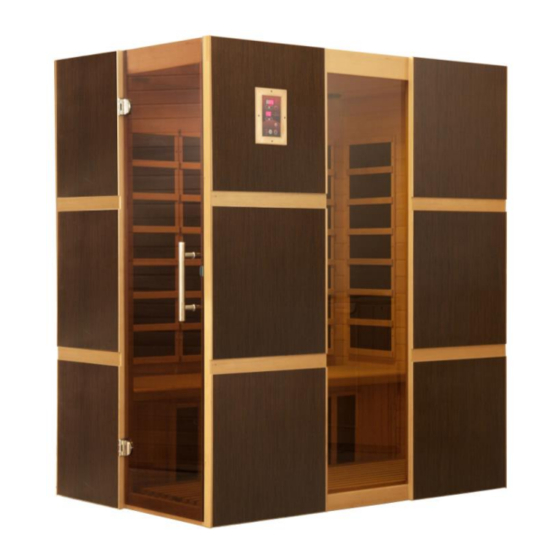

2 and 3 Person Model Saunas
OWNER'S MANUAL
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
DYN-6240-02 - 120V 15 AMP DEDICATED CIRCUIT
DYN-6340-02 - 120V 20 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.
1
Advertisement
Table of Contents
Related Manuals for Dynamic Saunas DYN-6240-02
Summary of Contents for Dynamic Saunas DYN-6240-02
- Page 1 OWNER’S MANUAL FOR CARBON MODEL SAUNAS FOR INDOOR USE ONLY DYN-6240-02 - 120V 15 AMP DEDICATED CIRCUIT DYN-6340-02 - 120V 20 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
-
Page 2: Table Of Contents
TABLE OF CONTENTS What Are Infrared Rays Are Infrared Rays Safe How It Works Benefits Sauna Maintenance Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. -
Page 3: What Are Infrared Rays
WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum. -
Page 4: How It Works
HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire. -
Page 5: Sauna Maintenance
- Increases blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little maintenance. -
Page 6: Parts Description
PARTS DESCRIPTION DYN-6240-02... - Page 7 I. Power Supply (Control Box) The POWER SUPPLY/CONTROL BOX is the control center of the sauna room. It is installed on the ROOF PANEL near the LEFT SIDE WALL PANEL with GLASS DOOR of the sauna room and has input/outputs connected to it as seen below.
- Page 8 III. Buckles A. External Buckles The external buckles are used to connect the side wall panels to the REAR WALL PANEL. (see figure 2) Figure 2 B. Guide and Guide Inserts The guide and guide inserts are used to connect the FRONT PANEL to the RIGHT SIDE PANEL and the LEFT SIDE PANEL.
- Page 9 6. The REAR WALL PANEL has been added in Figure 7. Please note that the REAR WALL PANEL has two heat emitter panels for model DYN-6240-02 and three heat emitter panels for model DYN-6340-02 which are towards the top of the wall panel. The ROOF PANEL has been added in Figure 8.
-
Page 10: Assembly Instructions
C. Roof Panel The ROOF PANEL houses the control box/power supply, speakers, MP3 AUX jack, and chromotherapy/color therapy lighting. Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the roof. (see Figure 9) Figure 9 Assembly Instructions... - Page 11 Choose a good location to assemble the sauna The location must be dry, leveled, and away from any source of water POWER outlet must be easily accessible in order to plug the sauna cord in Two adults are required for installation Wood cabin installation order: FLOOR PANEL ...
- Page 12 PANEL is the bottom. The slot is for the FLOOR HEAT EMITTER PANEL cord to travel underneath the BENCH HEAT EMITTER PANEL in order to be plugged into the outlet on the REAR WALL PANEL. Proceed to plugging in the BENCH HEAT EMITTER PANEL. Figure 16 (DYN-6240-02) Figure 17 (DYN-6340-02)
- Page 13 Install the BENCH at an angle as seen in Figure 18. Then slide it over the horizontal bench guides on the side panels. Slide the BENCH all the way in and against the REAR WALL PANEL. Make sure to install the BENCH with the flat side up against the REAR WALL PANEL.
- Page 14 Installing the ROOF PANEL The side of the ROOF PANEL with the power supply (control box) is the top side of the ROOF PANEL. The edge nearest the power supply is the LEFT SIDE WALL PANEL. Be careful of the cords coming up from the SIDE WALL PANELS and REAR PANEL to the ROOF PANEL when you set the ROOF PANEL down onto the wall panels.
- Page 15 Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering (tape) from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 26) Figure 26 Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in the case that the TEMPERATURE SENSOR is damaged during transit.
-
Page 16: Operating The Sauna
Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit). - Page 17 on and heat will again be generated by the emitters. With the digital control, the inside temperature will always remain around the set-up value. Chromotherapy/Color Therapy Lighting (optional) can be operated as follows. First, you will need to install the battery. Once the battery has been inserted into the remote, you are ready to operate the chromotherapy/color therapy lighting system.
-
Page 18: Tips For Using Your Sauna
Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation or leave the door open slightly. -
Page 19: Safeguards For Your Sauna
pressure, circulatory system problems, or diabetes should consult a physician prior to using the sauna. Persons using medications should consult a physician before using the sauna. Some medications may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation. 10. -
Page 20: Troubleshooting Guide
Troubleshooting Guide 1. No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power supply. -
Page 21: Warranty
Limited Lifetime Warranty Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty. - Page 22 PAGE INTENTIONALLY LEFT BLANK...
-
Page 23: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
