Analog Devices DC1198B-A Demo Manual

Description
Demonstration circuit DC1198B-A features the
LTM 4605EV, the high efficiency, high density switch
®
mode buck-boost µModule
regulate its output voltage from an input voltage above,
below, or equal to the output. The input voltage range
of DC1198B-A is from 4.5V to 20V with a preset output
voltage of 12V. The rated load current is 5A, although
derating is necessary for certain V
conditions. The switching frequency may be synchronized
to an external clock from 200kHz to 400kHz. This PLL
perForMAnce sUMMArY
PARAMETER
Input Voltage Range V
Output Voltage V
OUT
Maximum Continuous Output Current
Default Operating Frequency
Efficiency
Load Transient

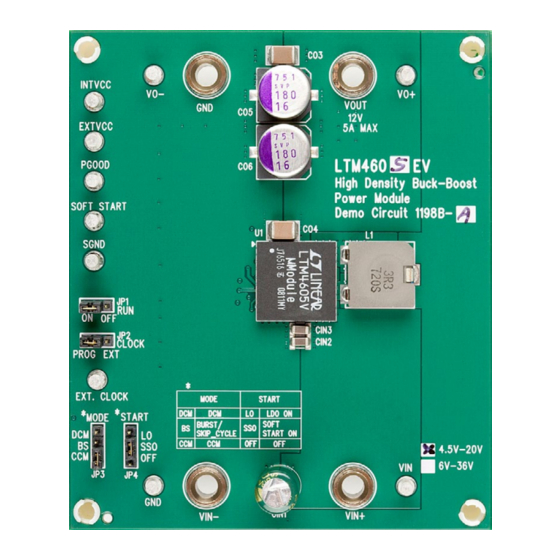

BoArD photo
Arrow.com.
Downloaded from
regulator. The LTM4605EV can
®
, V , and thermal
IN OUT
CONDITIONS
IN
V = 12V, I
IN
Derating Is Necessary for Certain V
Thermal Conditions
V = 12V, V
IN
V = 5V, V
IN
DEMO MANUAL DC1198B-A
20V, 5A High Efficiency
Buck-Boost µModule Regulator
can be used not only to reduce undesirable frequency
harmonics but also to parallel LTM4605 to provide high
output current. The LTM4605 data sheet must be read in
conjunction with this demo manual prior to working on
or modifying DC1198B-A.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
(T = 25°C)
A
= 5A.
OUT
, V , and
IN OUT
= 12V, I = 5A
OUT OUT
= 12V
OUT
LTM4605
VALUE
4.5V to 20V
12V ± 2%
5A at 5V
DC IN
12A at V > V
DC IN OUT
300kHz
97.6%, See Figure 3 for More Information
See Figure 4 for Details
dc1198bafa
1
