MINI 3D Scanner User Manual

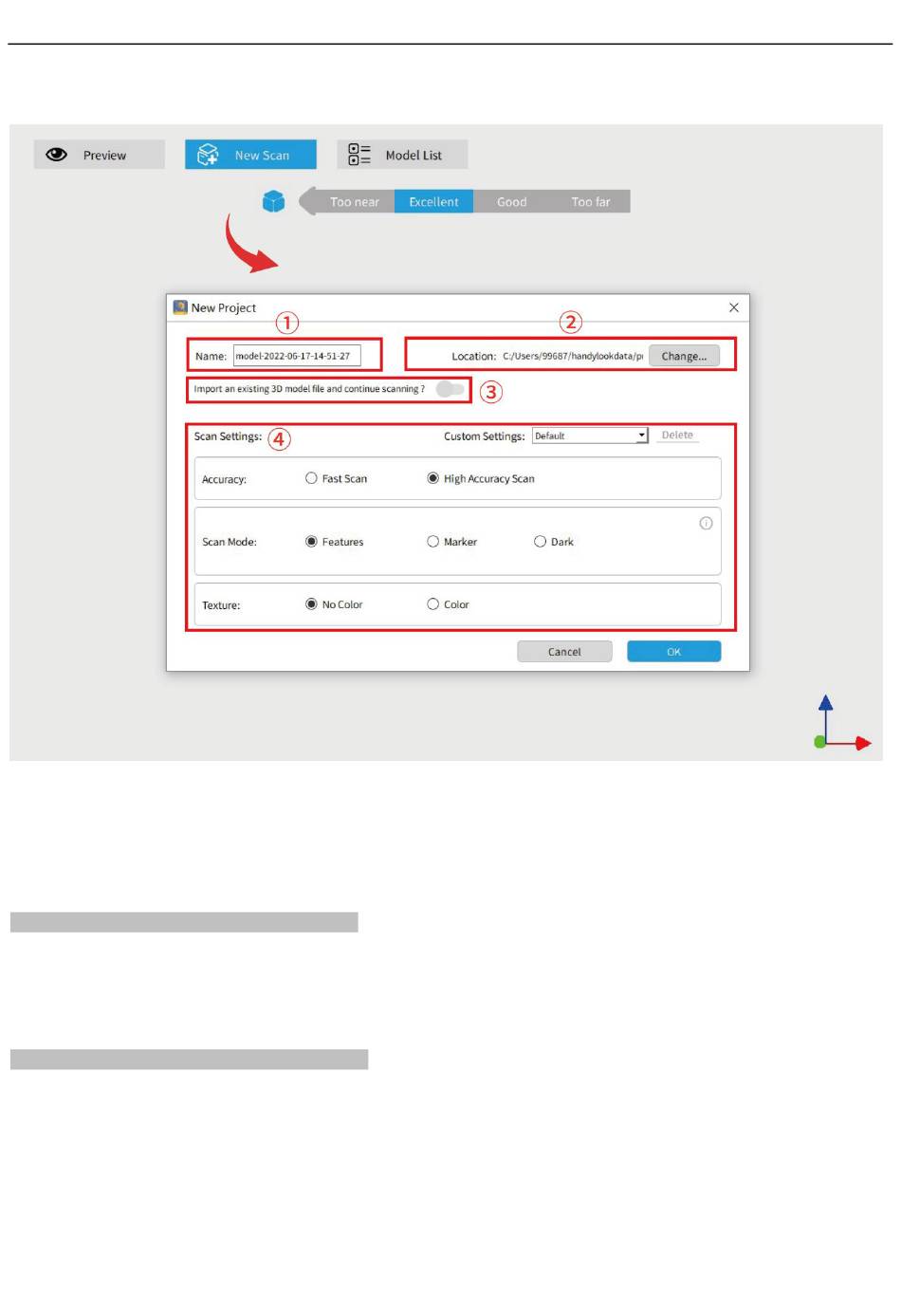

2. New Scan

① Name:

Display the default name of the model to be created. Rename as needed.

② Location:

Display the file folder of the model to be saved. Change as needed.

③ Import an external model:

④ Scan Settings:

Accuracy: Fast Scan and High-Accuracy Scan

Fast Scan:

High Accuracy Scan: Added to meet users' needs for higher-precision data capturing. In High Accuracy mode, the

Scan Mode: Include Feature, Marker and Dark

Feature:

Designed to scan objects with unique shapes such as sculptures and easily identifiable features.

Marker:

Designed to scan objects that have large, smooth areas or regularly-repeating features. Flat planes like a board

or symmetrical objects like balls or bowls are usually suitable to scan with this mode. Models scanned in

handheld mode should have tracking markers distributed across the object irregularly to avoid repeating

patterns. The scanner determines the relative location of each frame of the point cloud by identifying the

unique patterns formed by the markers. It's recommended to keep three or more tracking markers (red dots in

Turn on and click "Browse" to import a 3D model in .PLY, .OBJ or .STL formats

into Revo Scan to continue scanning and capture more details.

Faster scanning, but the accuracy in this mode is relatively lower than with High-Accuracy scans.

processing time for point cloud fusion/mesh/texture operations will be relatively longer.
