Nameplate

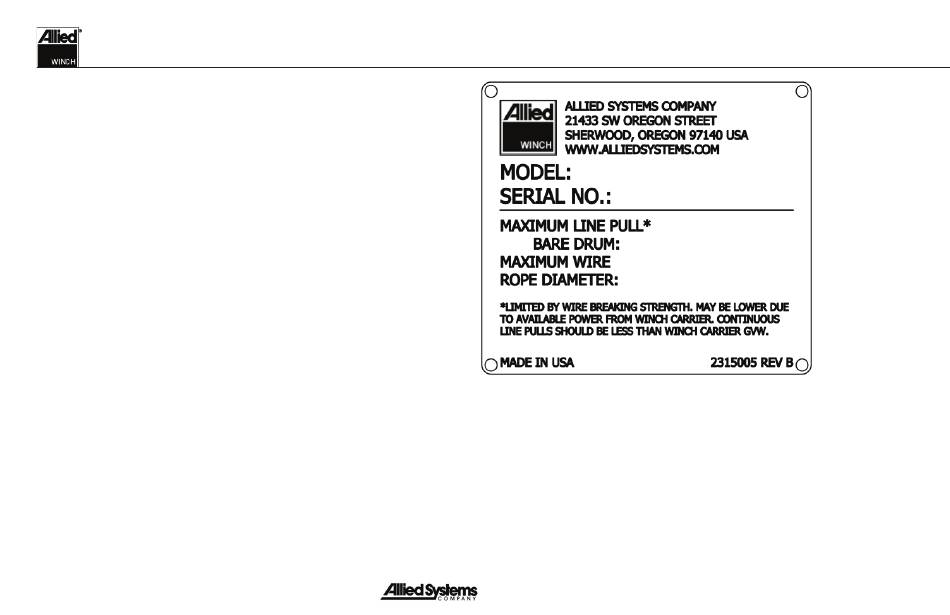

Each winch is shipped from the factory with a nameplate
as shown in Figure 1. The nameplate is stamped with:
• winch model
• winch serial number
• maximum bare drum line pull
• maximum wire rope diameter
DO NOT operate the winch with larger diameter wire rope.
If the nameplate is missing, DO NOT operate the winch
until its capacity is known.
The serial number for the winch is also stamped into the
frame next to the nameplate.
2
Figure 1 - Nameplate
