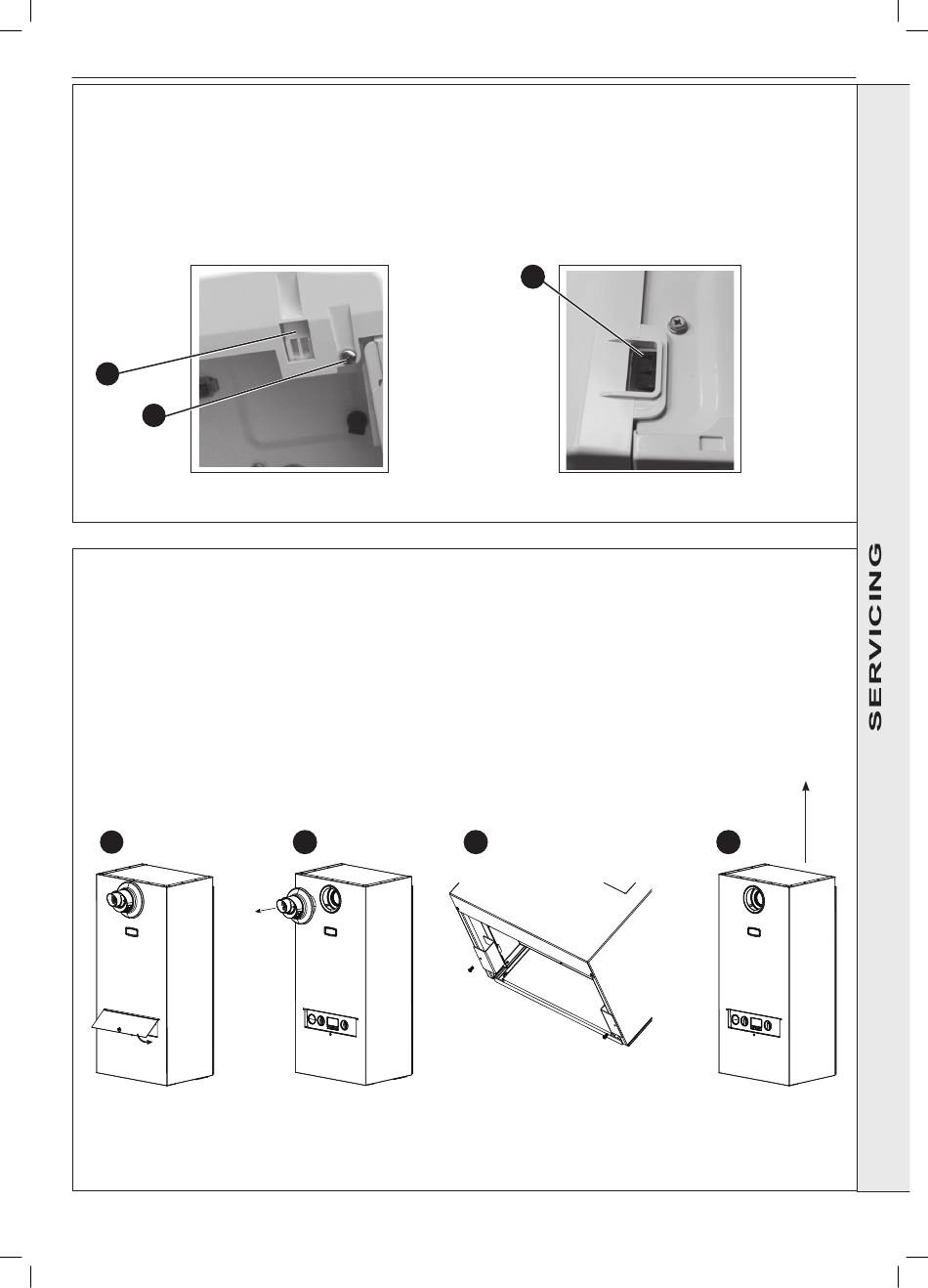

3.2 BOILER FRONT PANEL REMOVAL / REPLACEMENT

REMOVAL
1. Loosen the two screws retaining the front panel.
2. Pull the two clips down to disengage and pull panel forward
and upward and remove.
2
1
view from bottom of boiler

3.3 WEATHER SHIELD REMOVAL / REPLACEMENT

IMPORTANT: The Weather Shield must only be removed by the service engineer.
1. Unscrew the front removable panel using the securing knob.
2. Turn the boiler off and isolate the power.
3.
Remove the flue and external black flue seal.
4. Remove the two securing tabs on the bottom of the appliance.
5. Slide up and lift the weather shield over the appliance.
1
Installation and Servicing
SECTION 3 - SERVICING
REPLACEMENT
3. Hook the panel onto the top retaining clips.
4. Push the panel until the 2 bottom spring clips engage
5. Re-tighten the two retaining screws.
3 4
ensuring the 4 control knobs line up with the holes in the
front panel.
3
view from top of boiler
5
