SECTION 1 - GENERAL

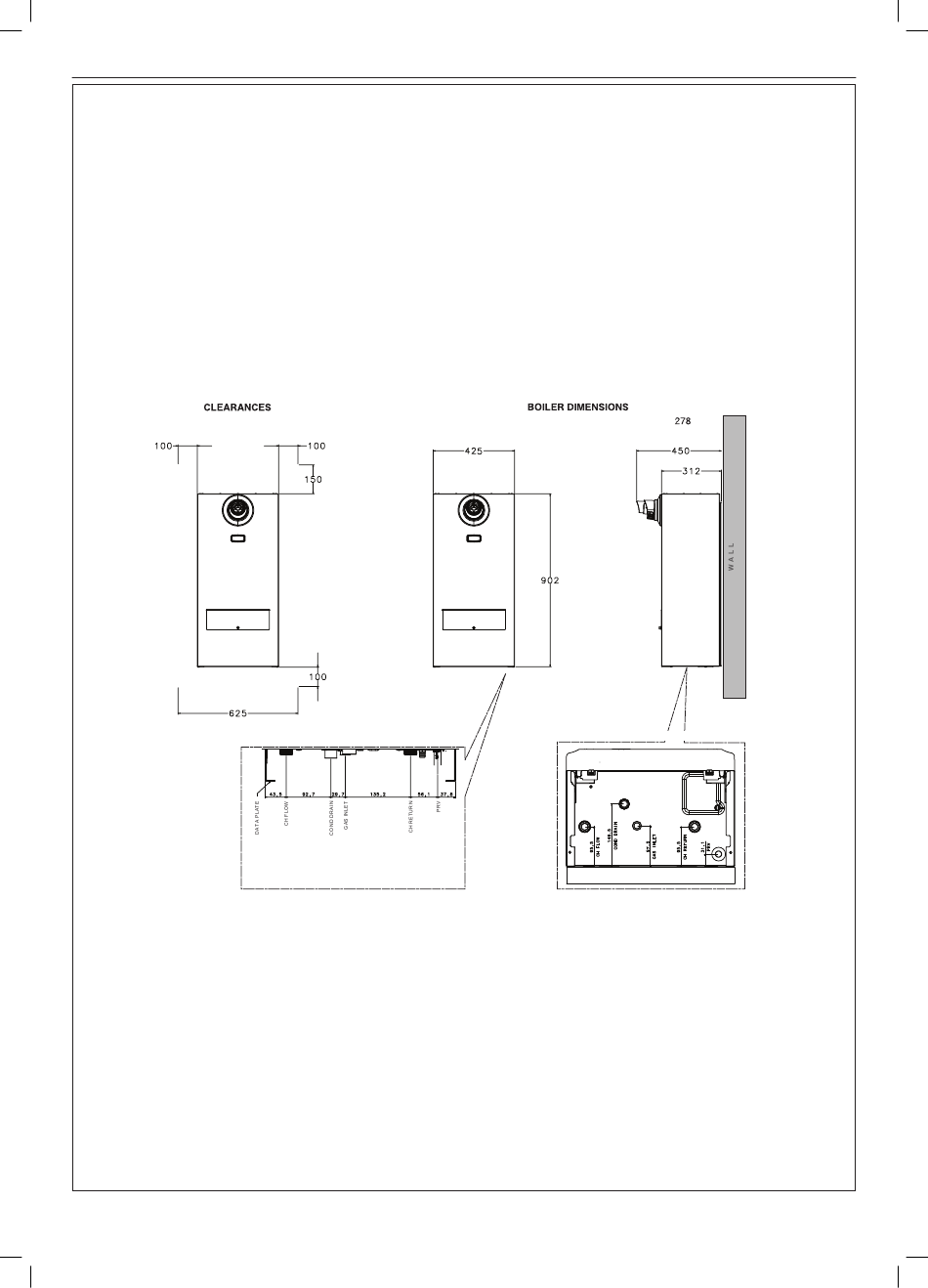

1.17 BOILER DIMENSIONS, SERVICES & CLEARANCES - EXTERNAL
The boiler connections are made on the boiler connection tails.
Refer to Section 2.19.
The following minimum clearances must be maintained for
operation and servicing.
Additional space will be required for installation, depending upon
site conditions.
all dimensions in mm
Underside View - Pipe Dimensions to Wall
Water Connections and Gas Connection
EXTERNAL ENCLOSURE
12
Installation and Servicing
