Gigabit Ethernet Connector J1 (RJ-45)

The XPMC-6710 has one front panel accessible Gigabit Ethernet connection using an RJ-45
Connector. The Pinout and diagram of the connector are shown in Table 1 and Figure 1-9.
Short for Registered Jack-45, the RJ-45 is an eight-wire connector used commonly to connect
computers onto a local-area networks (LAN), especially Ethernet. RJ-45 connectors look
similar to the ubiquitous RJ-11 connectors used for connecting telephone equipment, but are
somewhat wider.
Document Number: 646710

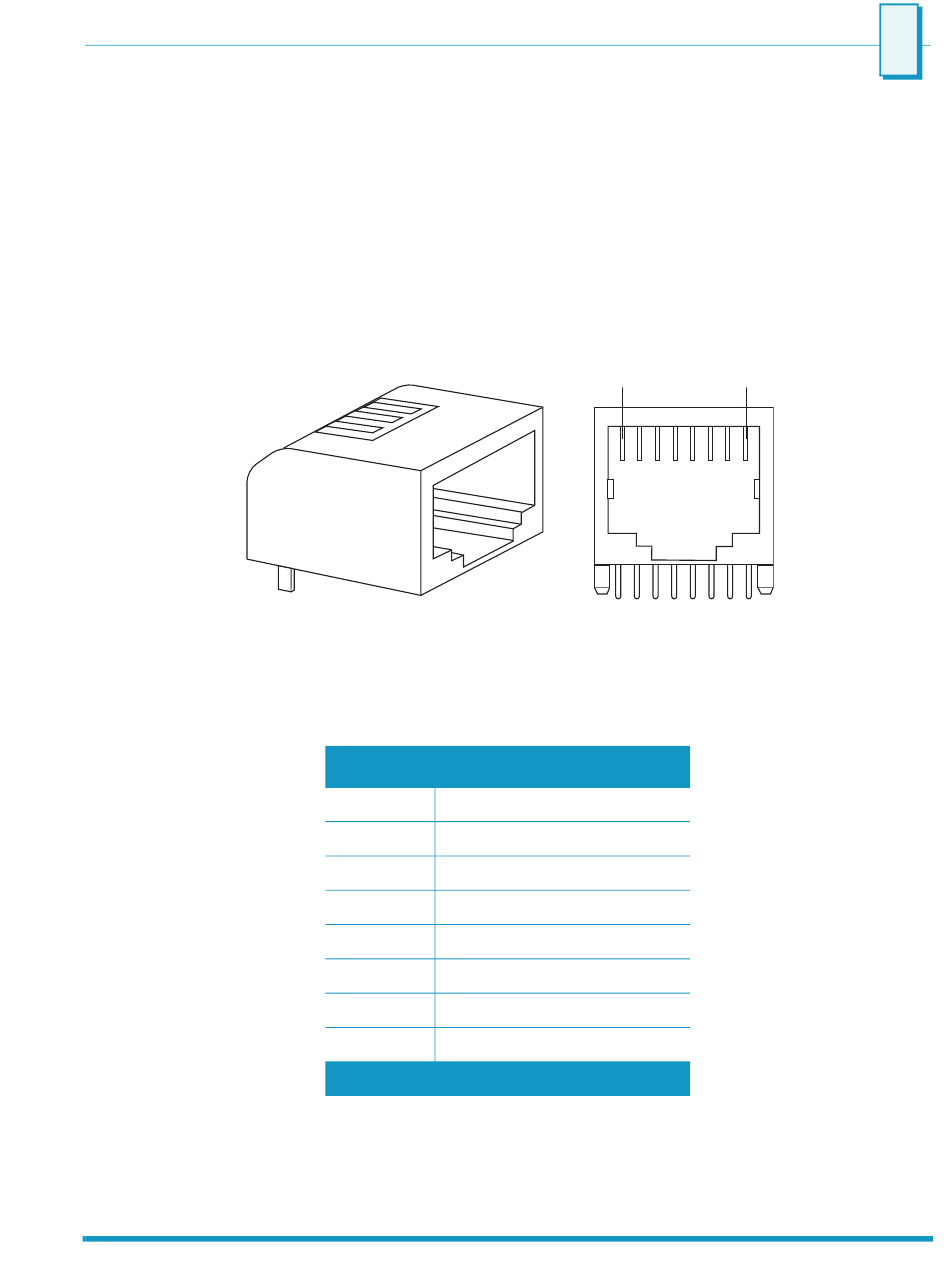

Figure 1-9 Gigabit Ethernet RJ-45 J1 Connector Diagram
Table 1-7 Gigabit Ethernet Connector J1 Pinout
Pin No.
8 TRD3-/0R
7 TRD3+/0R
6 TRD1-/0R
5 TRD2-/0R
4 TRD2+/0R
3 TRD1+/0R
2 TRD0-/0R
1 TRD0+/0R
Pin 1
Signal
1
PMC Connectors
Pin 8
