Front Panel I/O

The front Bezel for the XPMC-6710 consist of an RJ-45 connector for the Gigabit Ethernet
port with LEDs for Link and Activity. A mini USB connector for the RS-232 Serial port and
four user defined LEDs for the GPIOs. Figure 1-1 is a drawing depicting the front Bezel. The
four user defined LEDs are OFF by default.
LAN0 and LAN1 LEDs (DS9)
Activity0 Activity1
Link0 Link1
Serial Port
RS-232
(Mini USB)
NOTE: LAN1 is the rear I/O LAN interface.
Document Number: 646710
PMC710
LAN0 Gigabit
Ethernet Port (RJ-45)
User Defined LEDs
LED0
LED1
LED2
LED3

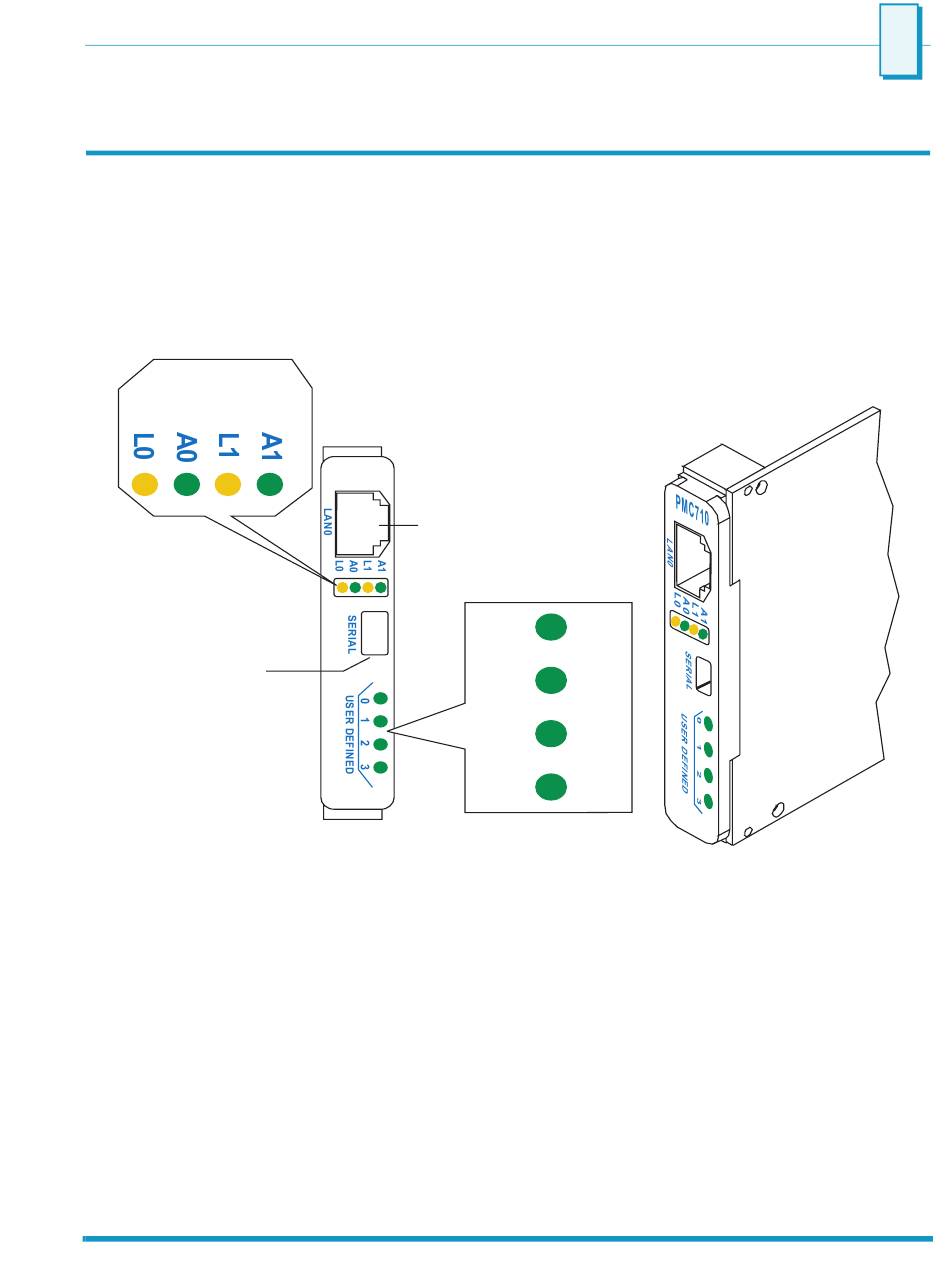

Figure 1-1 XPMC-6710 Front Panel
Front Panel I/O
DS1
DS2
DS3
DS4
