PMC Site Connector J2

Pin 1 Pin 2
Pin 63 Pin 64

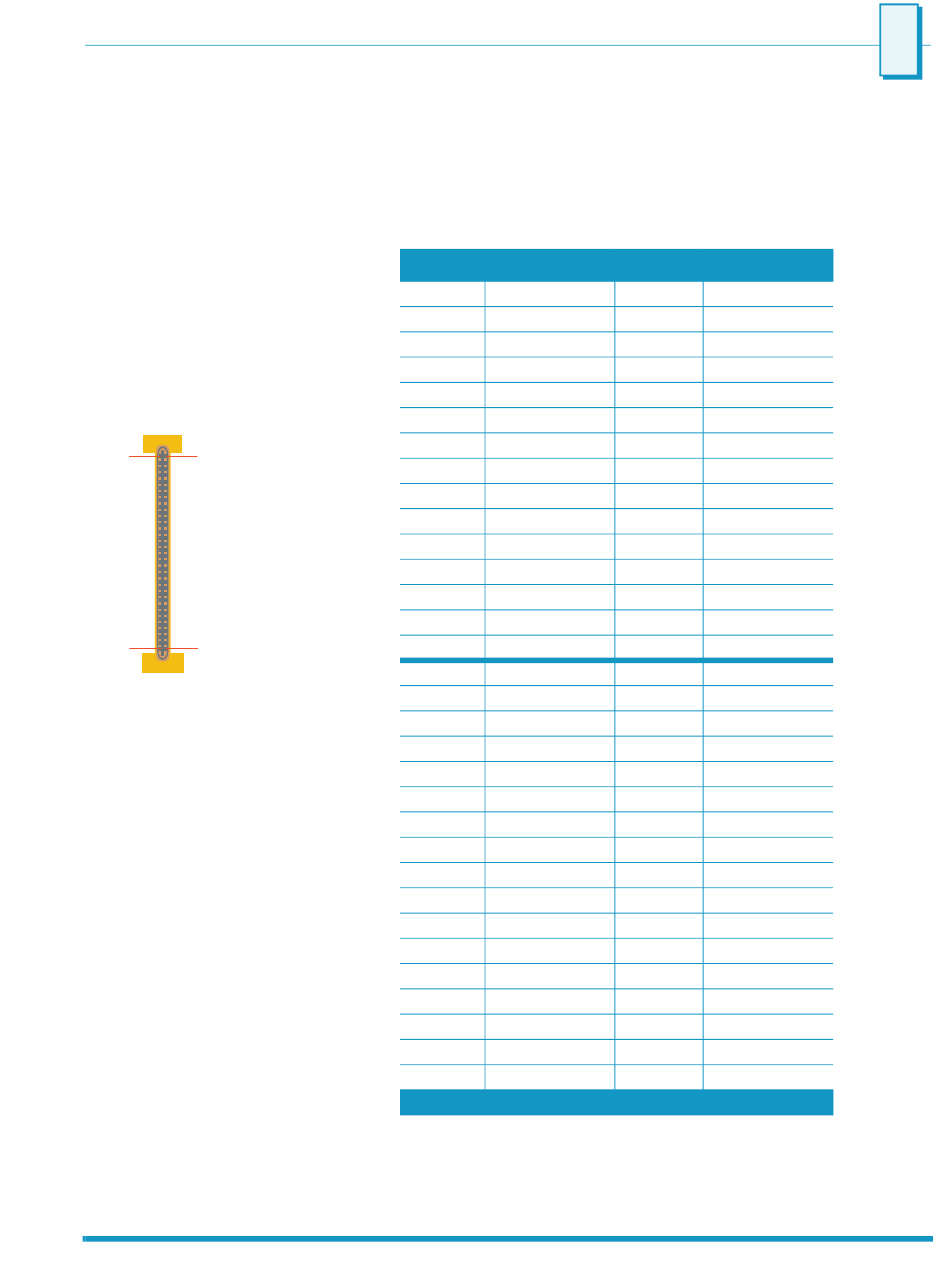

Figure 1-5 J2 Connector
Document Number: 646710
Table 1-3 PMC Connector J2 Pinout
Pin No. Signal
1 N/C
3 N/C
5 TD1
7 GND
9 N/C
11 N/C
13 *PCI_RST
15 +3.3V
17 *PCI_PME
19 PCI_AD30
21 GND
23 PCI_AD18
25 PCI_IDSEL
27 +3.3V
29 PCI_AD18
31 PCI_AD16
33 GND
35 *PCI_TRDY
37 GND
39 *PCI_PERR
41 +3.3V
43 *PCI_C/BE1
45 PCI_AD14
47 PCI_M66EN
49 PCI_AD08
51 PCI_AD07
53 +3.3V
55 N/C
57 N/C
59 GND
61 *PCI_ACK64
63 GND
PMC Connectors
Pin No. Signal
2 N/C
4 TD0
6 GND
8 N/C
10 N/C
12 +3.3V
14 N/C
16 N/C
18 GND
20 PCI_AD29
22 PCI_AD26
24 +3.3V
26 PCI_AD23
28 PCI_AD20
30 GND
32 *PCI_C/BE2
34 N/C
36 +3.3V
38 *PCI_STOP
40 GND
42 *PCI_SERR
44 GND
46 PCI_AD13
48 PCI_AD10
50 +3.3V
52 N/C
54 N/C
56 GND
58 EREADY
60 *RSTOUT
62 +3.3V
64 *MONARCH
