PMC Site Connector J4

Pin 1 Pin 2
Pin 63 Pin 64

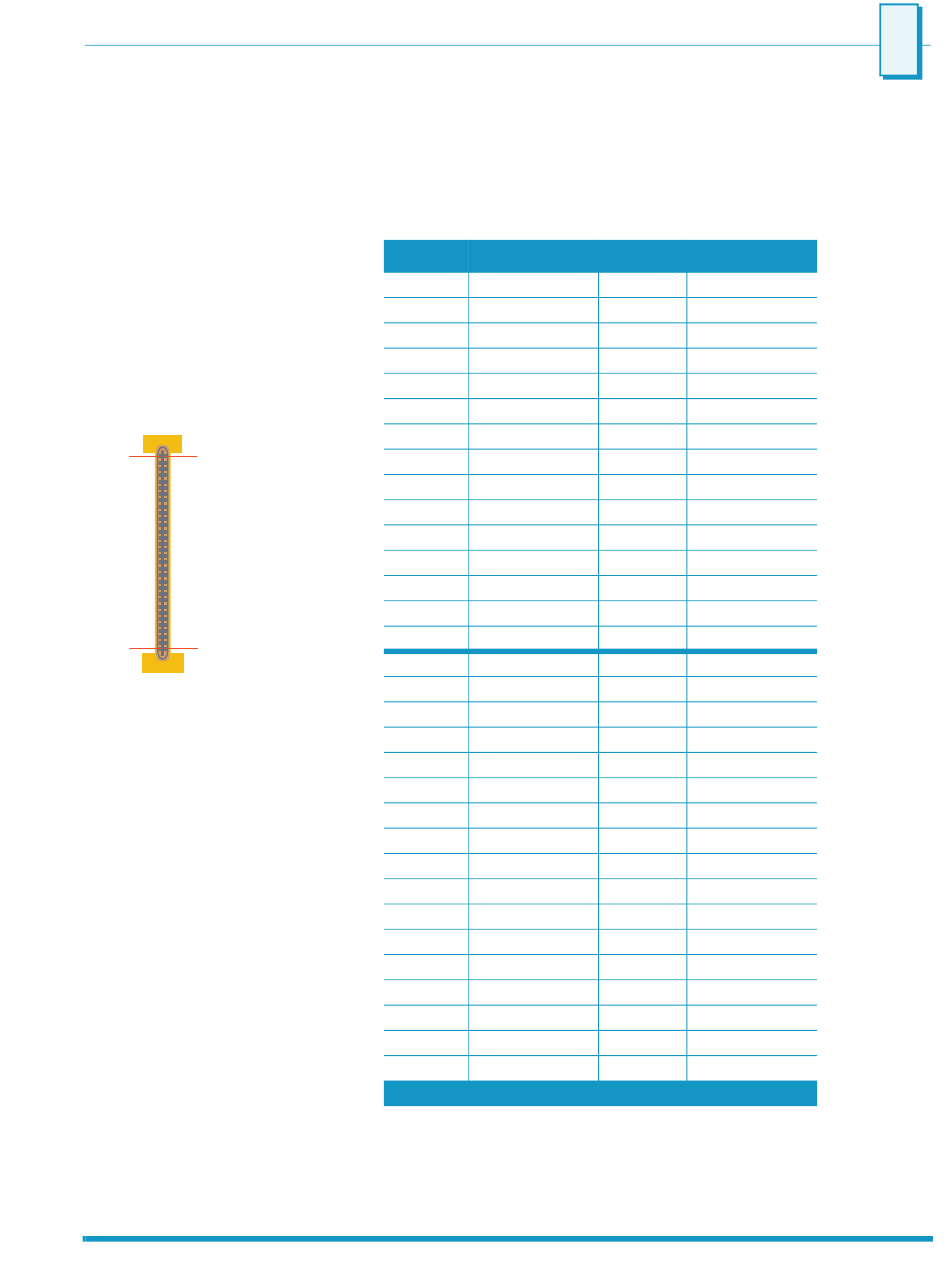

Figure 1-7 J4 Connector
Document Number: 646710
Table 1-5 PMC Connector J4 Pinout
Pin No. Signal
1 TRD0+/0M
3 TRD0-/0M
5 GND
7 TRD1+/0M
9 TRD1-/0M
11 GND
13 TRD0+/1M
15 TRD0-/1M
17 GND
19 TRD1+/1M
21 TRD1-/1M
23 GND
25 GND
27 U0TX/C
29 U0RX/C
31 GND
33 SCL
35 GPIO0
37 GPIO2
39 GPIO4
41 GPIO6
43 N/C
45 N/C
47 N/C
49 N/C
51 N/C
53 N/C
55 *Link/0B
57 *ActivityLED/0B 58
59 GND
61 CPLDTCK
63 CPLDTD1
PMC Connectors
Pin No. Signal
2 TRD2+/0M
4 TRD2-/0M
6 GND
8 TRD3+/0M
10 TRD3-/0M
12 GND
14 TRD2+/1M
16 TRD2-/1M
18 GND
20 TRD3+/1M
22 TRD3-/1M
24 GND
26 GND
28 U1TX/C
30 U1RX/C
32 GND
34 SDA
36 GPIO1
38 GPIO3
40 GPIO5
42 GPIO7
44 N/C
46 N/C
48 N/C
50 N/C
52 N/C
54 N/C
56 *Link/1B
*ActivityLED/1B
60 GND
62 CPLDTDO
64 CPLDTMS
