XPMC-6710 Reference Manual

PMC Connectors

There are four PMC connectors on the XPMC-6710. J1 through J3 carry the PMC specifiy
signals and J4 carrys the rear I/O signals. Table 1 through Table 1 list the pinouts for the J1
through J4 connectors. Figure 1-4 below through Figure 1-7 on page 33 illustrator the
connectors.

PMC Site Connector J1

Pin 1 Pin 2
Pin 63 Pin 64

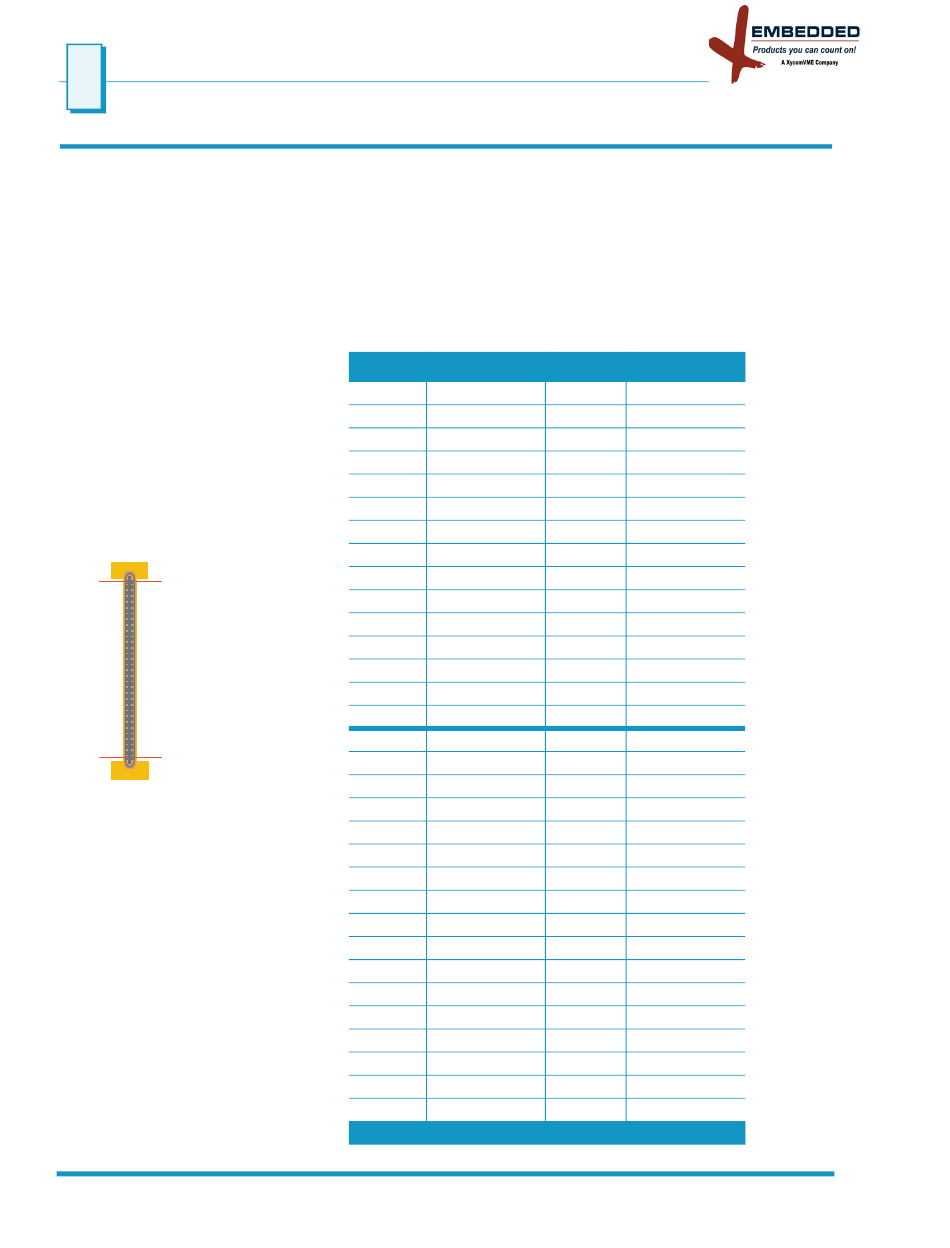

Figure 1-4 J1 Connector
30
Table 1-2 PMC Connector J1 Pinout
Pin No. Signal
1 N/C
3 GND
5 *PCI_INTB
7 *Present
9 *PCI_INTD
11 GND
13 PCI_CLK
15 GND
17 *PCI_REQ1
19 N/C
21 PCI_AD28
23 PCI_AD25
25 GND
27 PCI_AD22
29 PCI_AD19
31 N/C
33 *Frame
35 GND
37 *PCI_DEVSEL
39 PCI_PCIXCAP
41 N/C
43 PCI_PWR
45 N/C
47 PCI_AD12
49 PCI_AD09
51 GND
53 PCI_AD06
55 PCI_AD04
57 N/C
59 PCI_AD02
61 PCI_AD00
63 GND
Pin No. Signal
2 N/C
4 *PCI_INTA
6 *PCI_INTC
8 +5V
10 N/C
12 N/C
14 GND
16 PCI_GNT1
18 +5V
20 PCI_AD31
22 PCI_AD27
24 GND
26 PCI_C/BE3
28 PCI_AD21
30 +5V
32 PCI_AD17
34 GND
36 *PCI_IRDY
38 +5V
40 N/C
42 N/C
44 GND
46 PCI_AD15
48 PCI_AD11
50 +5V
52 PCI_C/BE0
54 PCI_AD05
56 GND
58 PCI_AD03
60 PCI_AD01
62 +5V
64 *PCI_REQ4
Document Number: 646710
