UG-548

EVAL-ADM1075-ISOZ

The ADM1075 isolation board (EVAL-ADM1075-ISOZ) includes
the following isolators:

The ADuM1250 is used to demonstrate the I
and the digital signal.

The ADuM5404 provides quad-channel digital isolation
with isoPower®. When the isolated section is powered,
the isoPower device powers the 5 V components on the
primary side of the board.
The push-buttons and switch on the isolation board
ADM1075-ISOZ) allow the user to control the mini evaluation
board (EVAL-ADM1075MEBZ). The three on-board LEDs
provide users with a direct visual indication of IC power good,
2
C isolation
latch event occurrence, and 5 V power supply from
CABLEZ. The 8-way connector is used to connect the mini
evaluation board (EVAL-ADM1075MEBZ) to the isolation board
(EVAL-ADM1075-ISOZ), and the 10-way connector is used
with the
board (EVAL-ADM1075-ISOZ) to a PC.

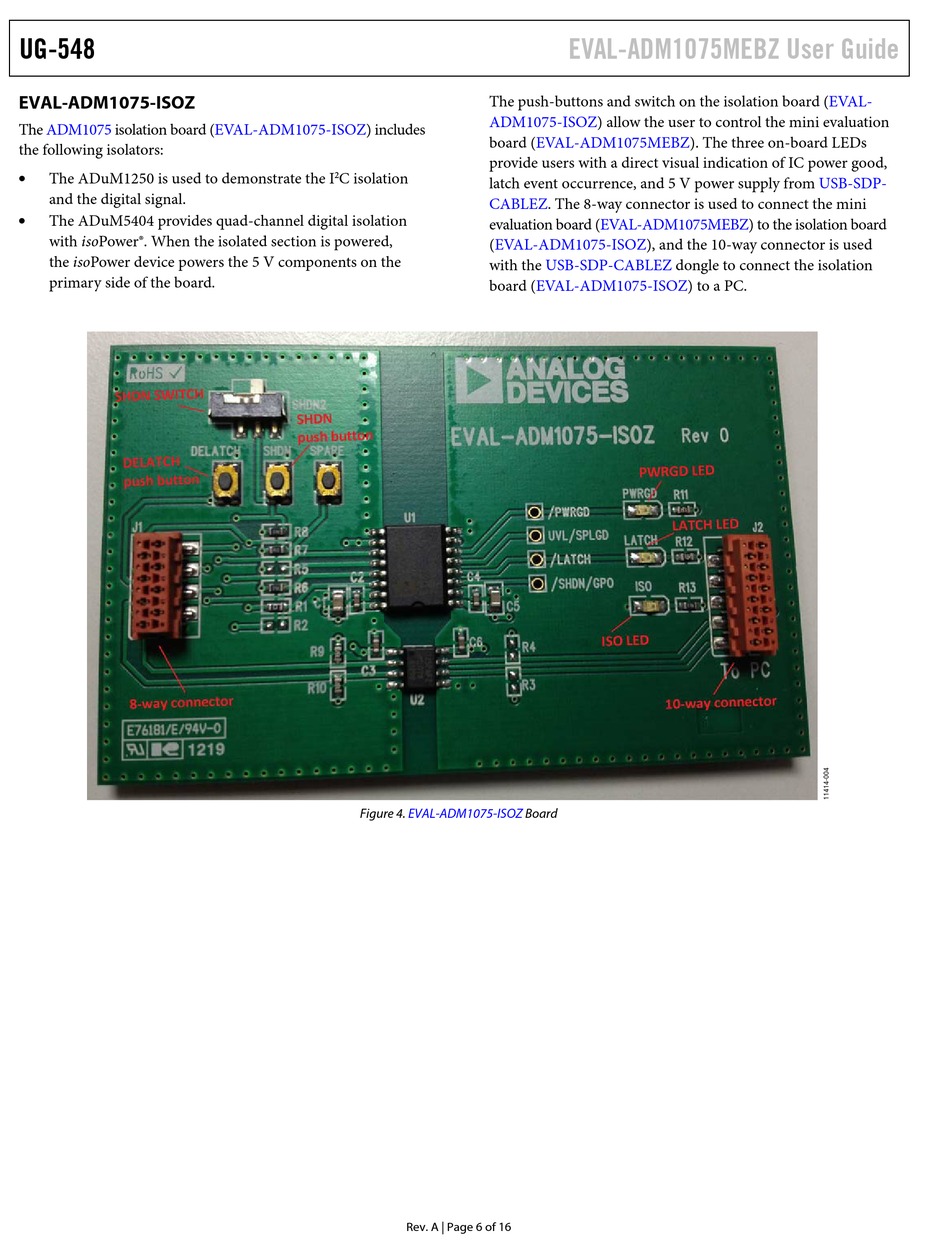

Figure 4. EVAL-ADM1075-ISOZ
Rev. A | Page 6 of 16
EVAL-ADM1075MEBZ User Guide
USB-SDP-CABLEZ dongle to connect the isolation
Board
(EVAL-
USB-SDP-
