Mounting the Controller using the Exciter
Mounting Clip
To mount the Controller in the center of a ceiling tile using the Exciter
Mounting Clip, Figure 12, you must order an EX5500 Mounting Clip Kit, sold
separately (SKU: EXAC-141). The Kit can be used to mount the Controller in
deployments where mounting on the ceiling grid is not possible.

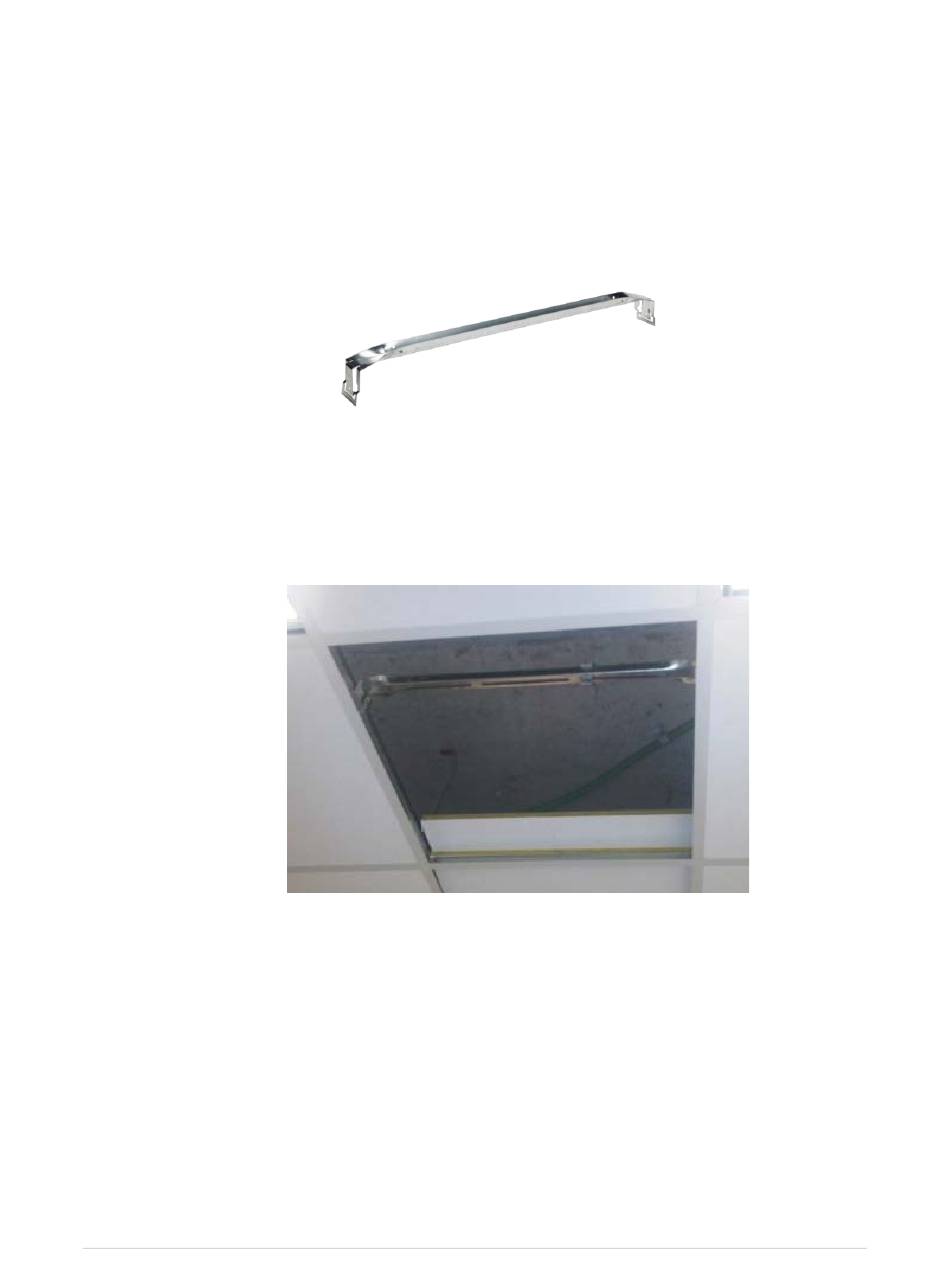

Figure 12: Mounting Clip for EX5500 (SKU: EXAC-141)
1.
Position the Mounting Clip on a standard 60cm (24") grid false ceiling.
2.
Snap the Mounting Clip onto the topside of the T-Grid using the 'snaps' on
the ends of the clip.
Figure 13: Mounting Clip positioned on a grid of a false cieling
3.
Attached the two screws and spacers that are supplied with the EX5500
Mounting Clip Kit to the center slot of the mounting clip and position
them at both ends of the slot.
