EX5200 Exciter Deployment Guide

Mounting the Exciter

Position and mount each EX5500 Controller in the site according to the site
survey recommendations.

Fixing the Controller to a Floating Ceiling:

Attach the device to the false ceiling using the ceiling mounts located on the
bottom casing of the device.

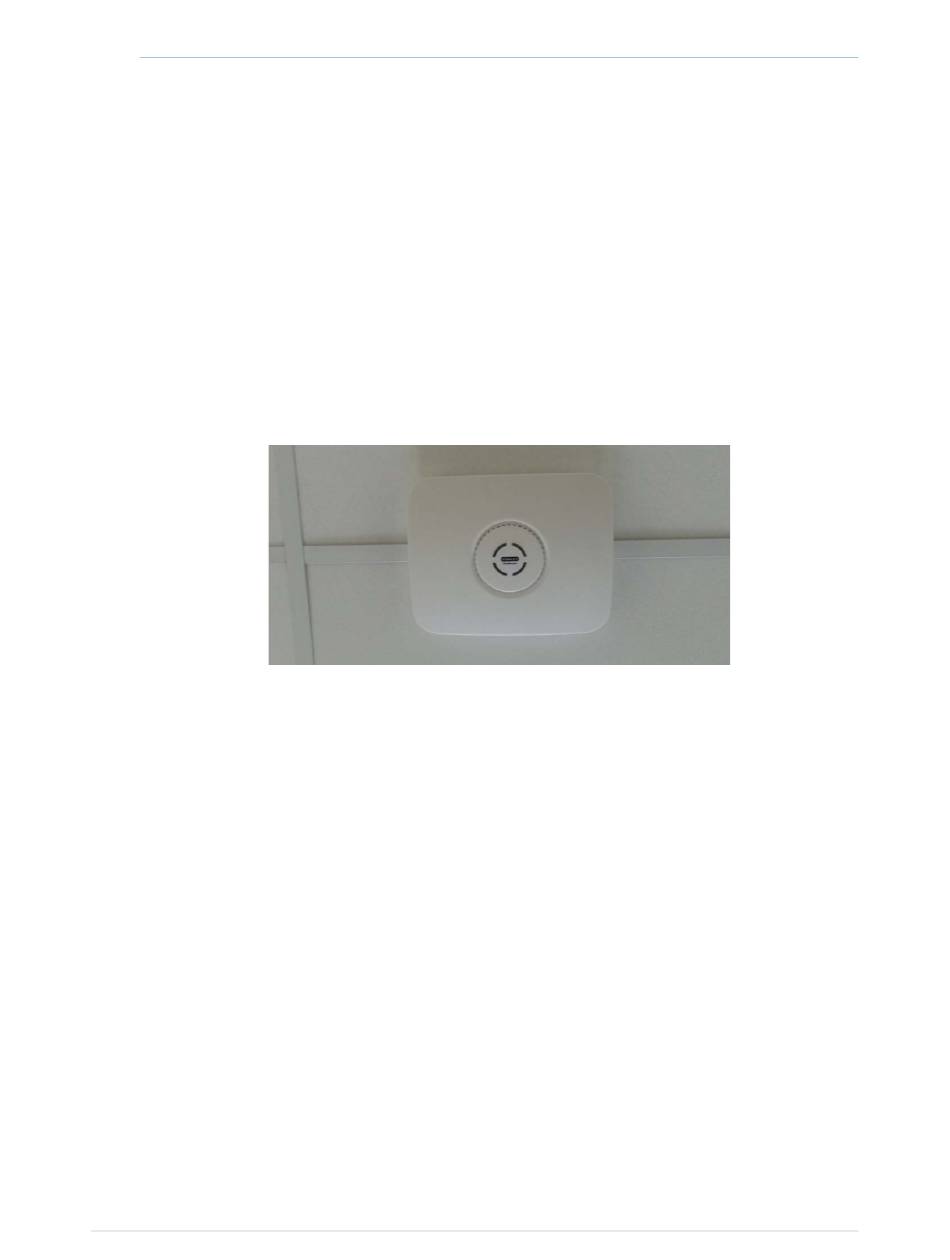

Figure 10: Controller mounted on a Floating Ceilings

Mounting the Controller on a Wall

The EX5500 Controller is shipped with a mounting template which can be used
to measure the holes for mounting the Controller on a wall. See Figure 11. The
mounting plate supplied with the Controller is not required for this type of
mounting.
