110/220 VAC to 48 VDC PoE Single-Port Injector

The PoE Single Port Injector converts 110/220 VAC to 48 VDC. In addition, it can
receive a network connection and you can run a single cable to the Exciter's LAN
connector, thus supplying both power and network connectivity.
When using this injector, the Exciter power jack is not used.

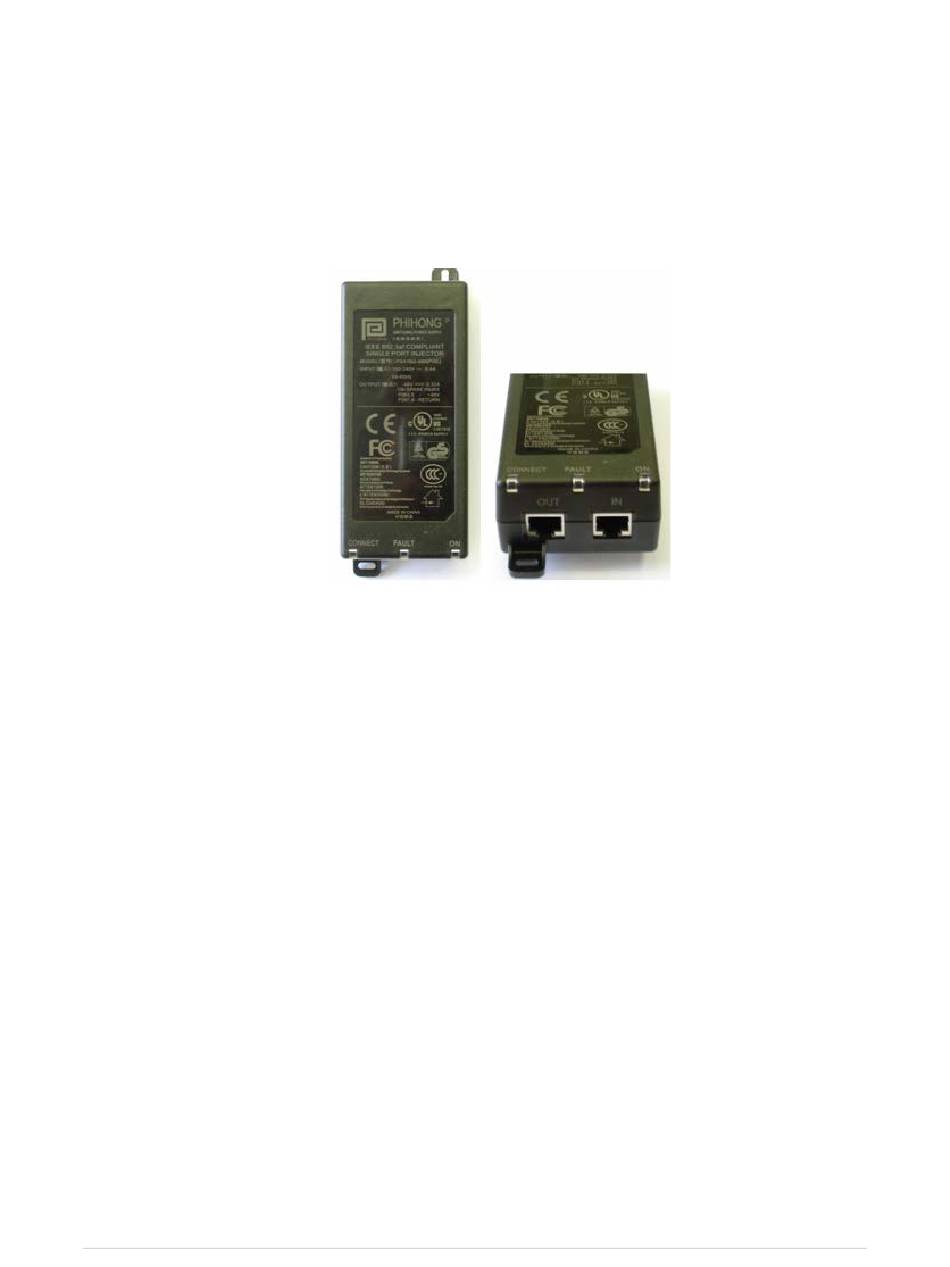

Figure 6: 110/220 VAC to 48VDC PoE Single-Port Injector
The injector's IN connector is connected to the network. The injector's OUT
connector is connected to the Exciter's LAN connector.
The injector can be used for both networked and non-networked Exciters. In the
case of a non-networked Exciters, the IN connector on the injector is not used.
