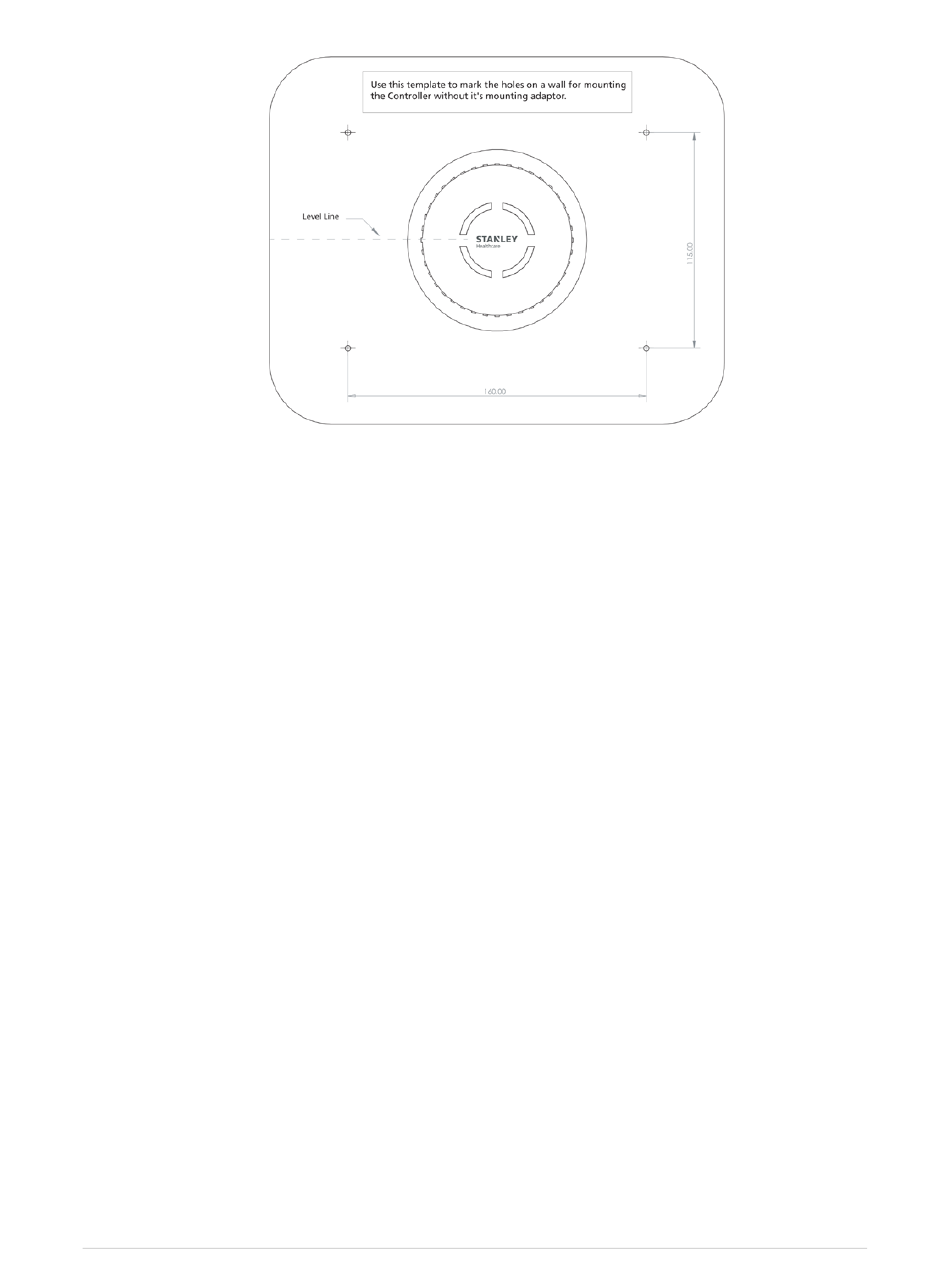

Figure 11: EX5500 mounting template (supplied with the Controller)
1.
Hold the template on the wall in the location you wish to mount the
Controller. Make sure the template is level.
2.
Mark the four holes for the screws through the template.
3.
Remove the template.
4.
Drill the holes for the screws.
5.
Anchor the screws into the wall, leaving 10mm of each of the screws
exposed. Use appropriate screws and or anchoring plugs.
6.
Mount the Controller with the STANLEY Healthcare logo facing up, onto
the 4 screws. The Controller's back panel has 4 mounting brackets for this
purpose.
