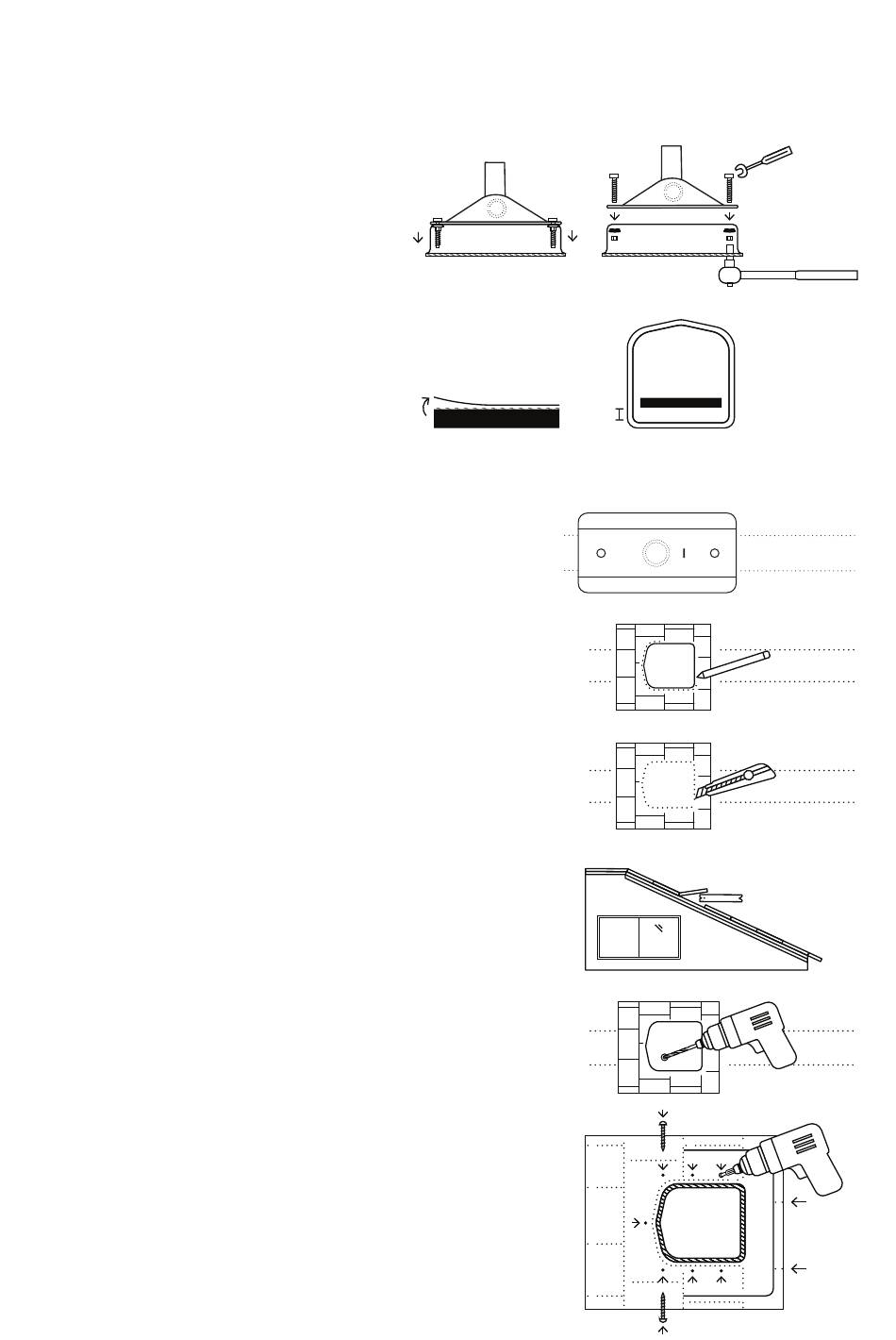

PART I: ATTACH PIVOT MOUNT TO MOUNT LID
1. Place Pivot Mount on top of mount lid. Insert a
1/4" screw through each of the two outer holes
on the top of the Pivot Mount. Tighten with the
two 7/16" wrenches.
2. Remove the foam gasket's backing and stick it
on the bottom inside of the mount, 1" from the
straight edge. Set aside for later use.
PART II: ATTACH ASSEMBLED FLASHING MOUNT TO ROOF
1. Find nearest roof beam.
*The image is horizontal.
2. Center tracing tool over beam, with bottom edge aligned with edge
of shingle. Trace outline of mount.
3. Use utility knife to cut mount's outline.
Do not cut through the bottom shingle layer.
4. Use pry bar to remove top layer of shingles only.
Do not remove the bottom layer.
5. For users not routing through attic, proceed to Step 6. If routing
cable through attic space, drill hole in area of removed section.
Take care to not drill into roof beam.
6. Slide lower half of mount into place, with bottom sliding under
top layer of shingles. Peel back shingles and install the 7 truss
head screws to attach lower half of mount to roof.
1"
2.5 cm 2,5 cm
