| STANDARD RIDGELINE MOUNT INSTALL GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the STANDARD RIDGELINE MOUNT and is the answer not in the manual?

Questions and answers

Related Manuals for STARLINK STANDARD RIDGELINE MOUNT

Summary of Contents for STARLINK STANDARD RIDGELINE MOUNT

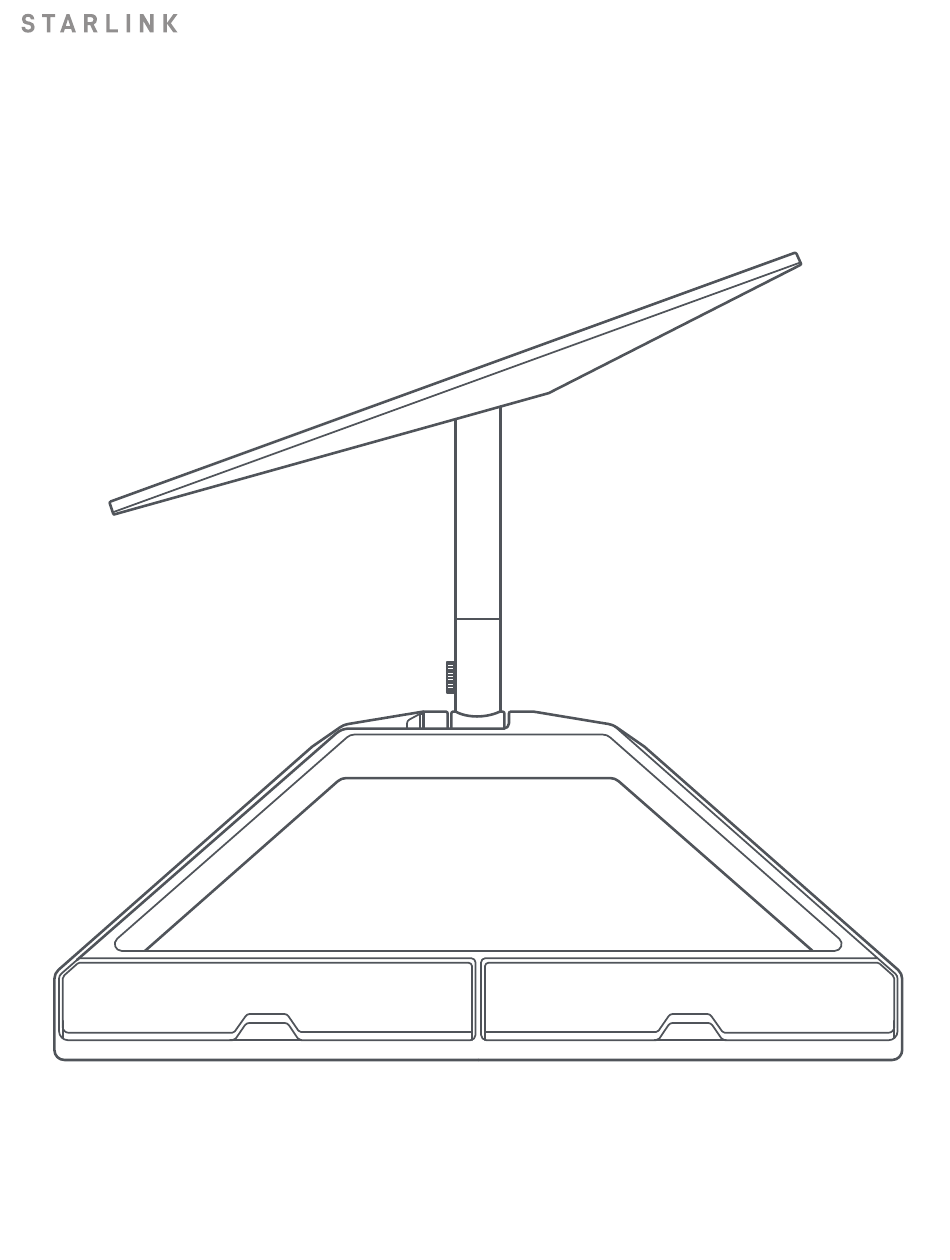

  • Page 1 | STANDARD RIDGELINE MOUNT INSTALL GUIDE...

  • Page 2: What's In The Box

    STANDARD RIDGELINE MOUNT KIT What’s in the Box Mast Adapter Mast Ridgeline Mount Ballast Weights Cable Routing Clips 0 - 180°...
  • Page 3 Find Mounting Location Your Starlink needs a clear view of the sky so it can stay connected with satellites as they move overhead. Objects that obstruct the connection between your Starlink and the satellite, such as a tree branch, pole, or roof, will cause service interruptions. Use the obstruction tool in the App to ensure you have selected a suitable mounting location.
  • Page 4 Insert the Starlink cable through the hole in the side of the mast and up through the slot in the adapter. Plug-In Cable and Install Mast Plug the cable into your Starlink. Ensure the plug is fully inserted such that the plug face is flush with the surface. Next, slide the mast in until it clicks into place.
  • Page 5 Next, install the 4 weights onto the mount by clicking them in place. Once the mount is installed, slide your Starlink mast into the mount and rotate your Starlink to face a clear view of the sky.
  • Page 6 Align and Lock Your Starlink An alert on the App will show if you need to rotate Starlink to be properly aligned. Click the alert to use the alignment tool. Once aligned, tighten the thumb-screw on the mast to prevent rotation.
