| POWER SUPPLY MOUNT INSTALL GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power Supply Mount and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STARLINK Power Supply Mount

Summary of Contents for STARLINK Power Supply Mount

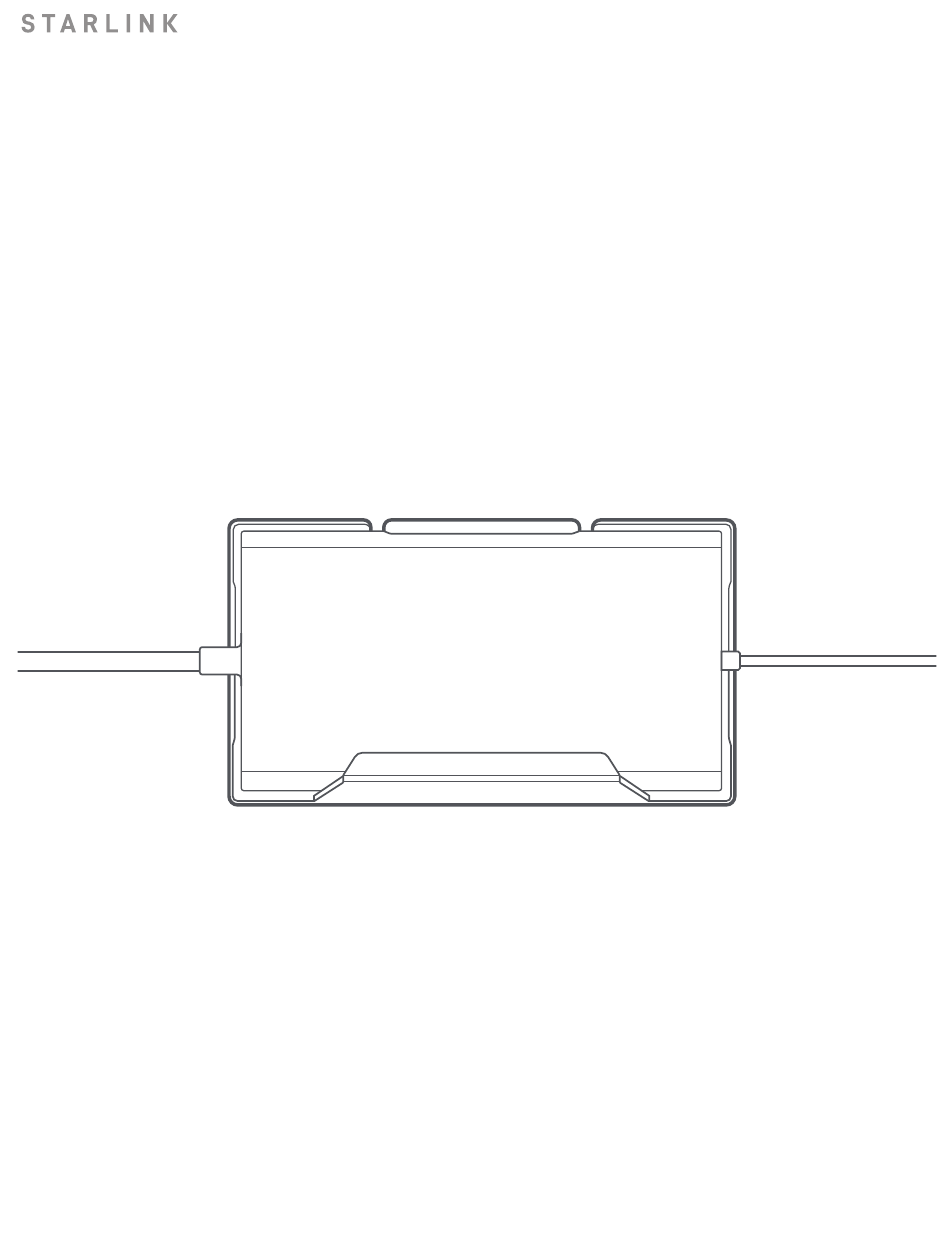

  • Page 1 | POWER SUPPLY MOUNT INSTALL GUIDE...
  • Page 2 POWER SUPPLY MOUNT KIT What’s in the Box Power Supply Mount Screws Wall Anchors Recommended Tools Drill / Impact Driver Drill Bit Drill Bit #2 Phillips Marker Level 4 mm (5/32 in) 7 mm (9/32 in) Screwdriver No Anchors With Anchors 102.4 mm...
  • Page 3 INSTALL NON-ANCHOR INSTALLATION Mark and Drill Mounting Holes Use the mount as a guide to mark the hole locations, then drill using a 4mm (5/32 in) diameter 4 mm (5/32 in) drill bit if not using the provided drywall anchors Screw Mount to Surface Secure the mount using the provided screws.
  • Page 4 INSTALL ANCHOR INSTALLATION Mark and Drill Mounting Holes Use the mount as a guide to mark the hole locations, then drill using a 7mm (9/32 in) diameter drill bit if intending to use the provided drywall anchors 7 mm (9/32 in) Screw Mount to Surface Install the drywall anchors into the holes, then secure the mount using the provided screws.
