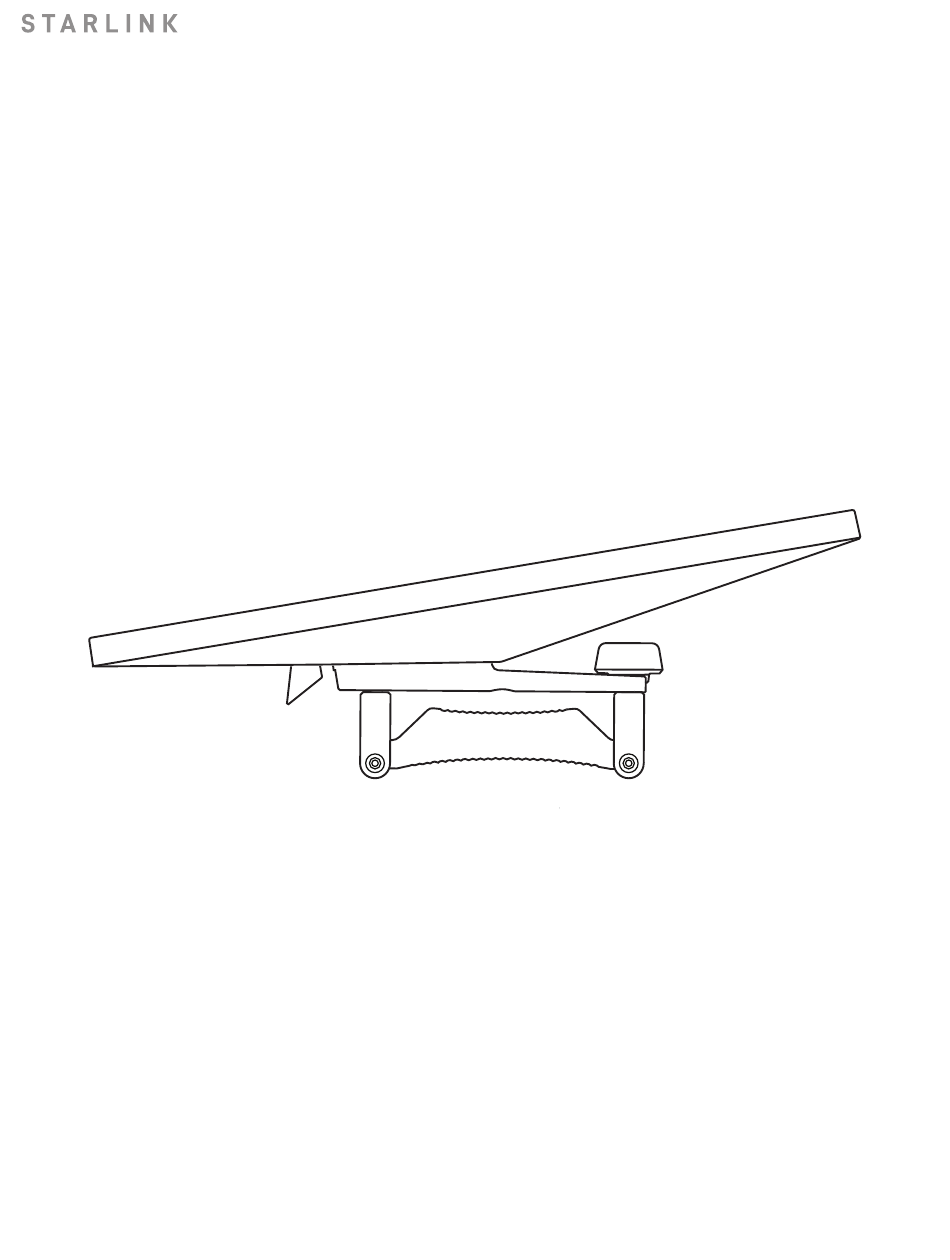

- Page 1 | MINI ROOF RACK MOUNT INSTALL GUIDE...
- Page 2 MINI ROOF RACK MOUNT What’s in the Box Roof Rack Mount 152 mm (5.98 in) 67 mm (2.64 in) 153 mm (6.02 in)
- Page 3 Find Mounting Location Your Starlink needs a clear view of the sky so it can stay connected with satellites as they move overheard. Objects that obstruct the connection between your Starlink and the satellite will cause service interruptions. Use the obstructions tool in your App to ensure you have selected a suitable mounting location.
- Page 4 Determine the correct grip pad orientation based on the thickness of the roof rack bar on your vehicle. The Mini Roof Rack Mount can accommodate bars up to 88 mm (3.5 in) wide. The short side should be used with bars 12 mm (0.47 in) to 32 mm (1.26 in) thick.
- Page 5 INSTALL 12 mm (0.47) - 32 mm (1.26 in) Thick Roof Racks 5a | Prepare Mount and Install on Roof Rack Loosen the 2 thumbs screws until mount is wide enough to wrap around your roof rack. Flip down mount arm and install mount onto your vehicle's roof rack.
- Page 6 INSTALL 28 mm (1.1 in) - 48 mm (1.89 in) Thick Roof Racks 5b | Prepare Mount and Install on Roof Rack Loosen the 2 thumbs screws until mount is wide enough to wrap around your roof rack. Flip down mount arm and install mount onto your vehicle's roof rack.
- Page 7 7 | Plug in Cable and Install Starlink Plug the ethernet cable into your Starlink and ensure the ethernet cable is fully inserted. Slide your Starlink into the mount until it clicks into place and ensure your Starlink is firmly attached.
