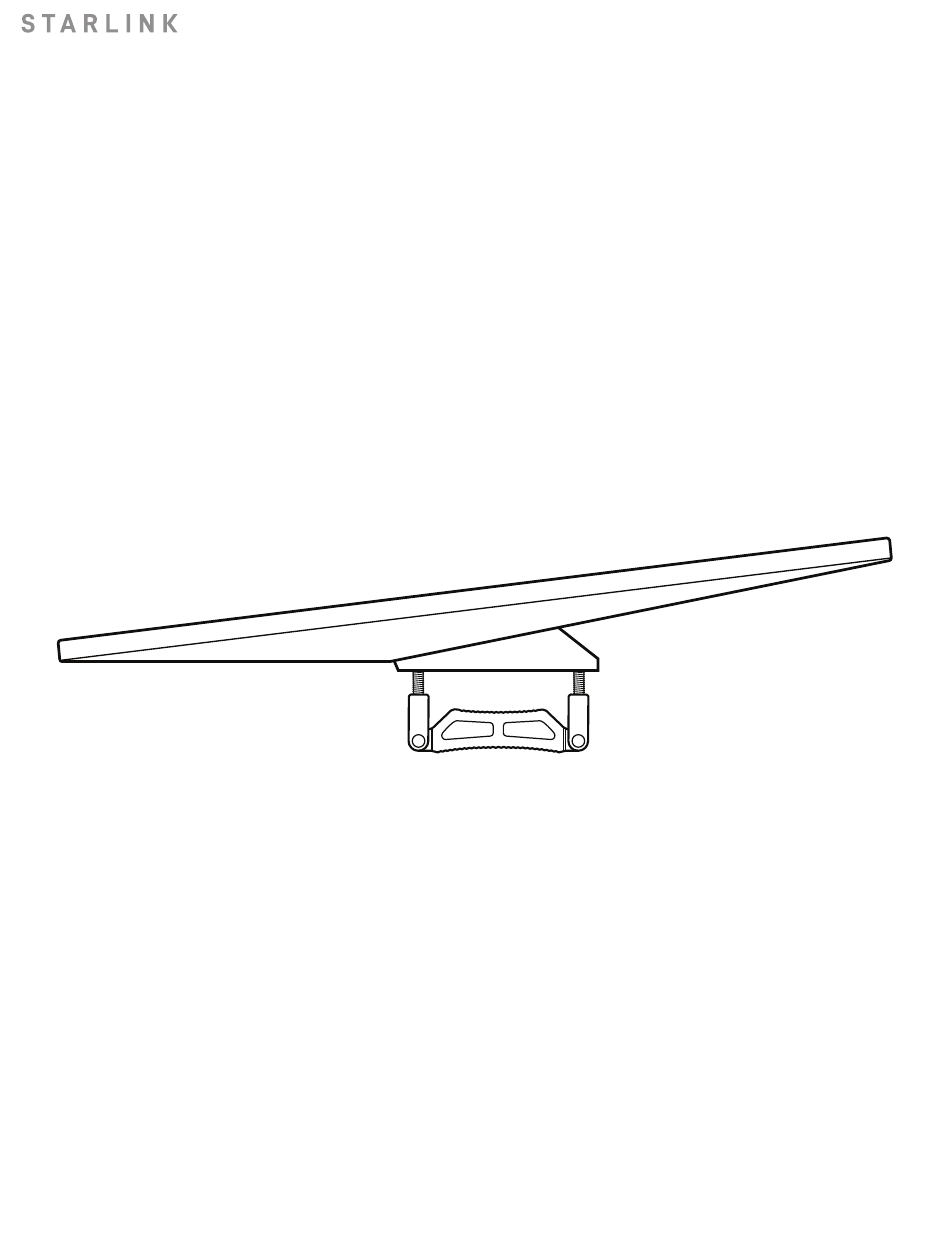

- Page 1 | STANDARD ROOF RACK MOUNT INSTALL GUIDE...
-
Page 2: What's In The Box
STANDARD ROOF RACK MOUNT What’s in the Box Mount Base Grip Pad M8 Flanged Screwdriver Allen Key Head Screws 165 mm (6.5 in) 185 mm (7.3 in) 95mm-125mm (3.7 in - 4.9in) - Page 3 Find Mounting Location Your Starlink needs a clear view of the sky so it can stay connected with satellites as they move overheard. Objects that obstruct the connection between your Starlink and the satellite will cause service interruptions. Use the obstructions tool in your App to ensure you have selected a suitable mounting location.
- Page 4 (0.59 in - 1.18 in) thickness of the roof rack bar on your vehicle. The Standard Roof Rack Mount can accommodate bars up to 95 mm (3.74 in) wide. The short side should be used with bars 15 mm (0.59 in) to 30 mm (1.18 in) thick. The long side should be used for all other bars up to 44.5 mm (1.75 in) thick.
- Page 5 INSTALL 6 | Install Mount onto Roof Rack Place mount onto cross bar and flip grip pad into latched position. Ensure the proper installation orientation of the mount on your vehicle. The arrow indicated on the mount points towards the front of the vehicle. 7.5 Nm (5.5 lb-ft) 7 | Secure Mount to Roof Rack...
- Page 6 9 | Plug in Cable and Install Starlink Plug the ethernet cable into your Starlink and ensure the ethernet cable is fully inserted. Slide your Starlink into the mount until it clicks into place.
- Page 7 INSTALL 10 | Secure Mount Using the screwdriver, drive in the two locking screws until hand tight.
