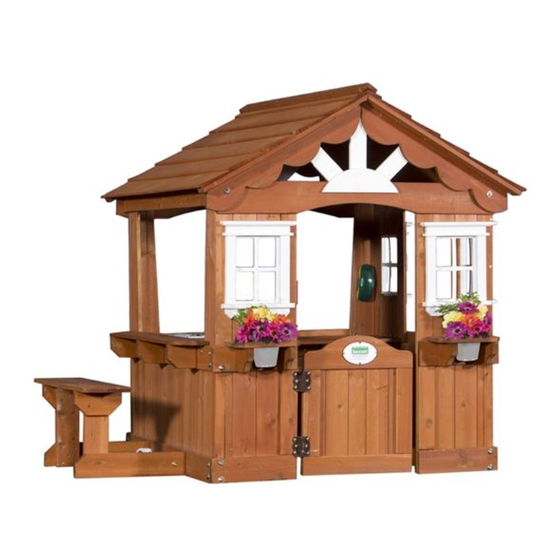

Backyard Discovery Lifespan Kids Scenic Owner's Manual

Play house
Hide thumbs

Advertisement

Quick Links

Download this manual
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Features the
Adult Assembly Required.
Not suitable for children under two years,
due to sharp points and small parts.

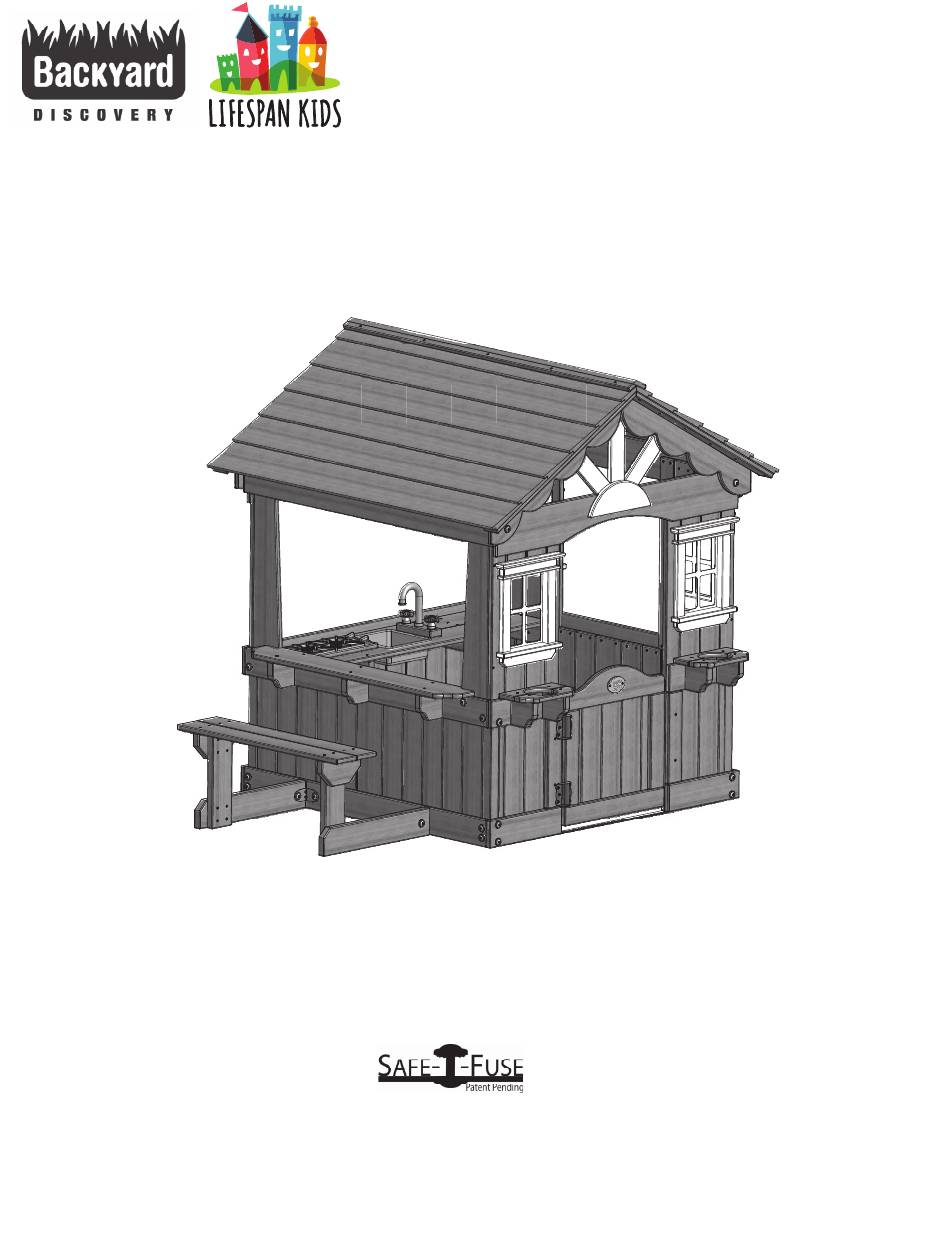

SCENIC
Model: #36013
Save this assembly manual for future reference in the event that
you need to order replacement parts.
Play House
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lifespan Kids Scenic and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery Lifespan Kids Scenic

Summary of Contents for Backyard Discovery Lifespan Kids Scenic

  • Page 1 SCENIC Play House Model: #36013 • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Features the fastening system. Save this assembly manual for future reference in the event that you need to order replacement parts. Adult Assembly Required. Not suitable for children under two years, due to sharp points and small parts.

  • Page 2: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS PURPOSE This product is intended for outdoor, domestic use only. It is not suitable for commercial or medical use. DANGER FOR CHILDREN  WARNING! No eating while using the product  This product may only be used with adult supervision at all times. ...

  • Page 3: Safety Instructions

     In certain areas during winter, snow buildup and the low temperatures can damage the product. It is recommended to remove snow buildup and to store the product indoor.  We strongly recommend visual inspections every 3 months to insure the integrity of the entire product. Replace any parts as necessary.
  • Page 4 Consumer Information Sheet for Playground Surfacing Materials The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment- related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.

  • Page 5: Wood Advice

    WOOD ADVICE Our products are manufactured from premium timber. Great care is taking in selecting, machining and treating the timber before it is sold to you. 1. Inspect wood parts monthly. The grain of the wood sometimes will lift in dry periods causing splinters to appear.
  • Page 6 2 – 10 years. 4. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar wood which is naturally bug resistant, decay and rot resistant. To help ensure your child’s safety, our wood is completely chemical free and we do not use pressure-treated wood.

  • Page 7: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Rubber Mallet - Optional) (Phillips Screw Driver) (Tape Measure) (Drill Attachments: Phillips Head) (3/16"...
  • Page 8 SAFETY AND ASSEMBLY INFORMATION SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY Dimensions: General Information: • The Scenic has one layout option. Your set has been designed and engineered for Layout Ground Dimension Safe Play Area*...

  • Page 9: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) H1 - SHELF SUPPORT - W103891 1"x3 3/8"x3 7/8" (24x86x98) H4 - BENCH SEAT SUPPORT - W104040 1"x3 3/8"x6 1/2" (24x86x166) H5 - BENCH UPRIGHT - W104041 1"x3 3/8"x11 3/4" (24x86x300) H6 - BENCH GROUND BOARD - W104042 1"x3 3/8"x18 1/8"...
  • Page 10 Parts Identification Wood Components (NOT TO SCALE) L1 - SIDE WALL HEADER - W103887 5/8"x4 3/8"x42 5/8" (16x112x1082) K6 - WALL HEADER - W103883 5/8"x5 1/4"x41 3/8" (16x134x1050) L3 - RAFTER - W104047 5/8"x4 1/4"x28 3/8" (16x108x692) K7 - ANGLED WALL BOARD - W103885 5/8"x4 5/8"x23 3/4"...
  • Page 11 Parts Identification Wood Components (NOT TO SCALE) N1 - WALL BOARD - W103880 5/8"x2 3/8"x40 1/8" (16x60x1020) N2 - WALL BOARD - W103882 5/8"x2 3/8"x40 1/8" (16x60x1020) N3 - WALL BOARD - W103888 5/8"x2 3/8"x23 3/4" (16x60x602) N4 - ROOF CAP - W104049 5/8"x2 3/8"x48 3/4"...
  • Page 12 Parts Identification Wood Components (NOT TO SCALE) WP3 - WALL PANEL - W103877 1 1/4"x18 1/8"x41 3/8" (32x460x1050) RP1 - ROOF PANEL - W104046 1 3/8"x28 1/8"x48 3/4" (34x715x1238) DP1 - DOOR PANEL - W104048 1 1/4"x16 7/8"x18 1/2" (32x430x470)
  • Page 13 Parts Identification Hardware (26) K - BOLT WH 5/16x2 - H100012 D - NUT BARREL WH 5/16x7/8 - H100005 H - BOLT WH 5/16x1 1/2 - H100010 (30) BG - T-NUT 5/16 - H100074 G - BOLT WH 5/16x1 1/4 - H100009 (35) AC - WASHER LOCK EXT 8x19 - H100030 AD - WASHER LOCK EXT 12x19 - H100031...
  • Page 14 Parts Identification Accessories (NOT TO SCALE) (1) JR - FAUCET KIT - A100125 (1) MS - PHONE KIT - A100132 JS - SQUARE SINK BOWL - A100129 TD - HINGE (DOOR, SPRING LOADED) - A100327 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 (1) JX - STOVE ASSEMBLY - A100136 TZ - L BRACKET 2.5x38x50x55 - A100340 SW - PLASTIC WINDOW 44x266x329 - A100320...
  • Page 15 M4 - WALL RAIL - W103879 H1 - SHELF SUPPORT - W103891 5/8"x3 3/8"x12 1/4" (16x86x310) 1"x3 3/8"x3 7/8" (24x86x98) Left and Right Pot Holder Assemblies Step 1 Pre-drilling 1/8" holes in the back edge of H1 is recommended. Use the existing holes in M4 as a guide. FLUSH (TOP &...
  • Page 16 K5 - REAR FLOWER POT SHELF - W103892 K4 - FRONT FLOWER POT SHELF - W104051 5/8"x2 5/8"x9 1/8" (16x67x232) 5/8"x2 5/8"x9 1/8" (16x67x232) Left and Right Pot Holder Assemblies Step 2 Pre-drilling 1/8" holes in the top edge of H1 is recommended. Use the existing holes in K5 and K4 as a guide.

  • Page 17: Bench Assembly

    H6 - BENCH GROUND BOARD - W104042 1"x3 3/8"x18 1/8" (24x86x460) TZ - L BRACKET 2.5x38x50x55 - A100340 Bench Assembly Step 1 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 BOLT WH 5/16x1/2 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 BOLT WH 5/16x1/2...
  • Page 18 H5 - BENCH UPRIGHT - W104041 1"x3 3/8"x11 3/4" (24x86x300) Bench Assembly Step 2 SCREW PFH 8x1-3/4 SCREW PFH 8x1-3/4 1 3/16...
  • Page 19 H4 - BENCH SEAT SUPPORT - W104040 1"x3 3/8"x6 1/2" (24x86x166) Bench Assembly Step 3 SCREW PFH 8x1-3/4 SCREW PFH 8x1-3/4 1 9/16 1 9/16...
  • Page 20 M2 - BENCH SEAT - W104044 5/8"x3 3/8"x27 3/8" (16x86x694) Bench Assembly Step 4 Pre-drilling 1/8" holes in the top edge of H4 is recommended. Use the existing holes in M2 as a guide. SCREW PFH 8x1 3/4 SCREW PFH 8x1 3/4 2 5/8...

  • Page 21: Door Assembly

    DP1 - DOOR PANEL - W104048 TD - HINGE (DOOR, SPRING LOADED) - A100327 1 1/4"x16 7/8"x18 1/2" (32x430x470) Door Assembly Step 1 SCREW PWH 8x3/4 SCREW PWH 8x3/4...
  • Page 22 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 Door Assembly Step 2 Center ID tag on door approx. as shown. SCREW PFH 6x5/8 SCREW PFH 6x5/8...
  • Page 23 P1 - CORNER POST - W103875 1 3/8"x1 3/8"x16 1/2" (36x36x418) PLAY HOUSE ASSEMBLY Step 1 In this step you will make four post assemblies. It is crucial to note the relationship of the ID (24) T-NUT 5/16 holes with the T-Nuts in each assembly as indicated below.
  • Page 24 WP1 - WALL PANEL - W103874 (1) RIGHT REAR POST ASSEMBLY (1) RIGHT FRONT POST ASSEMBLY 1 1/4"x18 1/8"x41 3/16" (32x460x1050) PLAY HOUSE ASSEMBLY Step 2 WASHER LOCK EXT 8x19 BOLT WH BOLT WH 5/16x2 5/16x2 RIGHT REAR POST ASSEMBLY WASHER LOCK EXT 8x19...
  • Page 25 WP2 - WALL PANEL - W103876 (1) LEFT REAR POST ASSEMBLY 1 1/4"x18 1/8"x42 5/8" (32x460x1082) PLAY HOUSE ASSEMBLY Step 3 WASHER LOCK EXT 8x19 BOLT WH 5/16x2 BOLT WH 5/16x2 WASHER LOCK EXT LEFT REAR 8x19 POST ASSEMBLY...
  • Page 26 WP3 - WALL PANEL - W103877 (1) LEFT FRONT POST ASSEMBLY 1 1/4"x18 1/8"x41 3/8" (32x460x1050) PLAY HOUSE ASSEMBLY Step 4 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 LEFT FRONT POST ASSEMBLY...
  • Page 27 M3 - WALL RAIL - W103878 5/8"x3 3/8"x12 1/4" (16x86x310) PLAY HOUSE ASSEMBLY Step 5 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 WASHER LOCK EXT 8x19 BOLT WH 5/16x2...
  • Page 28 L3 - RAFTER - W104047 5/8"x4 1/4"x28 3/8" (16x108x692) K6 - WALL HEADER - W103883 VB - PLASTIC SUNBURST - A100361 5/8"x5 1/4"x41 3/8" (16x134x1050) PLAY HOUSE ASSEMBLY Step 6 SCREW PFH In this step you will make two Gable Assemblies. Use 1 1/2"...
  • Page 29 N1 - WALL BOARD - W103880 5/8"x2 3/8"x40 1/8" (16x60x1020) (1) GABLE ASSEMBLY PLAY HOUSE ASSEMBLY Step 7 FROM STEP 6 SCREW PFH 8x1 1/8 GABLE ASSEMBLY NUT BARREL WH 5/16x7/8 WASHER LOCK EXT FROM STEP 6 12x19 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 SCREW PFH 8x1 1/8 !CAUTION!
  • Page 30 N2 - WALL BOARD - W103882 5/8"x2 3/8"x40 1/8" (16x60x1020) PLAY HOUSE ASSEMBLY Step 8 6 13/16 6 13/16 SCREW PFH 8x1 1/8 THESE HOLES ARE CLOSER TO THE GROUND FLUSH SCREW PFH 8x1 1/8...
  • Page 31 (1) LEFT POT HOLDER ASSEMBLY (1) RIGHT POT HOLDER ASSEMBLY PLAY HOUSE ASSEMBLY Step 9 WASHER LOCK EXT 8x19 SCREW PFH 8x1 1/8 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 LEFT POT BOLT WH HOLDER 5/16x2 ASSEMBLY SCREW PFH 8x1 1/8 RIGHT POT HOLDER ASSEMBLY...
  • Page 32 M1 - WALL BOARD - W103881 M6 - WALL BOARD - W103884 5/8"x3 3/8"x23 1/2" (16x86x596) 5/8"x3 3/8"x6 7/8" (16x86x175) PLAY HOUSE ASSEMBLY Step 10 SCREW PFH (20) 8x1-1/8 SCREW PFH 8x1-1/8...
  • Page 33 N6 - DOOR STOP - W104056 XP - METAL TIE STRAP - A100414 5/8"x2 3/8"x3 7/8" (16x60x100) PLAY HOUSE ASSEMBLY Step 11 Attach N6 approximately 2" up from ground and locate as shown. SCREW PWH 8x3/4 SCREW PFH 8x1 1/8 SCREW PWH 8x3/4 SCREW PFH 8x1 1/8...
  • Page 34 L5 - ANGLED WALL BOARD - W103886 5/8"x4 3/8"x23 3/4" (16x112x602) N5 - DOOR TRIM - W104055 (1) GABLE ASSEMBLY 5/8"x2 3/8"x11 1/4" (16x60x286) PLAY HOUSE ASSEMBLY Step 12 BOLT WH 5/16x1 1/4 WASHER LOCK EXT GABLE ASSEMBLY 8x19 FROM STEP 6 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19...
  • Page 35 L1 - SIDE WALL HEADER - W103887 5/8"x4 3/8"x42 5/8" (16x112x1082) K7 - ANGLED WALL BOARD - W103885 5/8"x4 5/8"x23 3/4" (16x117x602) PLAY HOUSE ASSEMBLY Step 13 BOLT WH 5/16x1 1/4 SCREW PFH SCREW PFH 8x1 1/4 8x1 1/8 SCREW PFH SCREW PFH 8x1 1/8 8x1 1/4 WASHER...
  • Page 36 L1 - SIDE WALL HEADER - W103887 5/8"x4 3/8"x42 5/8" (16x112x1082) N3 - WALL BOARD - W103888 5/8"x2 3/8"x23 3/4" (16x60x602) PLAY HOUSE ASSEMBLY Step 14 SCREW PFH 8x1-1/4 SCREW PFH 8x1-1/8 SCREW PFH 8x1-1/8 SCREW PFH 8x1-1/4 1 5/16...
  • Page 37 M5 - WALL BOARD - W103889 M6 - WALL BOARD - W103884 5/8"x3 3/8"x7" (16x86x178) 5/8"x3 3/8"x6 7/8" (16x86x175) N3 - WALL BOARD - W103888 5/8"x2 3/8"x23 3/4" (16x60x602) PLAY HOUSE ASSEMBLY Step 15 SCREW PFH (24) 8x1-1/8 SCREW PFH 8x1-1/8...
  • Page 38 J1 - SHELF SUPPORT - W103895 1"x2 3/8"x38 3/8" (24x60x976) PLAY HOUSE ASSEMBLY Step 16 SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2...
  • Page 39 J2 - SHELF SUPPORT - W103896 1"x2 3/8"x8 7/8" (24x60x224) PLAY HOUSE ASSEMBLY Step 17 SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2...
  • Page 40 K3 - REAR COUNTER TOP - W103894 K2 - FRONT COUNTER TOP - W103893 5/8"x5 1/4"x40 1/8" (16x134x1018) 5/8"x5 1/4"x40 3/4" (16x134x1034) PLAY HOUSE ASSEMBLY Step 18 SCREW PFH (11) 8x1 1/2 SCREW PFH 8x1 1/2 HOLES TO RIGHT OF SINK...
  • Page 41 J3 - SHELF SUPPORT - W103897 1"x2 3/8"x8 7/8" (24x60x224) PLAY HOUSE ASSEMBLY Step 19 SCREW PFH 8x1 1/2 SCREW PFH 8x3 SCREW PFH 8x1 1/2 SCREW PFH...
  • Page 42 WP - SMALL PLASTIC WINDOW INSIDE TRIM - A100364 SW - PLASTIC WINDOW 44x266x329 - A100320 PLAY HOUSE ASSEMBLY Step 20 Center windows in openings and attach as shown. Pre-drilling 3/16" holes using WP as a guide is recommended. SCREW PWH (16) 8x1-1/4 SCREW PWH 8x1-1/4...
  • Page 43 K1 - SERVING SHELF - W103890 H1 - SHELF SUPPORT - W103891 5/8"x5 1/4"x35 5/8" (16x134x906) 1"x3 3/8"x3 7/8" (24x86x98) PLAY HOUSE ASSEMBLY Step 21 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2...
  • Page 44 RP1 - ROOF PANEL - W104046 1 3/8"x28 1/8"x48 3/4" (34x715x1238) PLAY HOUSE ASSEMBLY Step 22 FLUSH SCREW PFH 8x1-1/2 SCREW PFH 8x1-1/2...
  • Page 45 RP1 - ROOF PANEL - W104046 1 3/8"x28 1/8"x48 3/4" (34x715x1238) PLAY HOUSE ASSEMBLY Step 23 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2...
  • Page 46 N4 - ROOF CAP - W104049 5/8"x2 3/8"x48 3/4" (16x60x1238) O1 - ROOF CAP - W104050 5/8"x1 3/8"x48 3/4" (16x34x1238) PLAY HOUSE ASSEMBLY Step 24 SCREW PFH (10) 8x1 1/8 SCREW PFH 8x1 1/8...
  • Page 47 (1) BENCH ASSEMBLY PLAY HOUSE ASSEMBLY Step 25 BOLT WH 5/16x1 WASHER LOCK EXT 12x19 NUT BARREL WH 5/16x7/8 BENCH ASSEMBLY WASHER LOCK EXT 12x19 BOLT WH 5/16x1 NUT BARREL WH 5/16x7/8...
  • Page 48 (1) JX - STOVE ASSEMBLY - A100136 JS - SQUARE SINK BOWL - A100129 PLAY HOUSE ASSEMBLY Step 26 SCREW PFH 8x1 1/8 SCREW PWH 8x3/4 SCREW PWH 8x3/4 SCREW PFH 8x1 1/8...
  • Page 49 (1) JR - FAUCET KIT - A100125 (1) MS - PHONE KIT - A100132 PLAY HOUSE ASSEMBLY Step 27 SCREW PFH 8x1-1/4 SCREW PFH 8x1/2 SCREW PFH 8x1/2 SCREW PFH 8x1-1/4...
  • Page 50 (1) DOOR ASSEMBLY PLAY HOUSE ASSEMBLY Step 28 Upon completion of this step, double check to make sure every bolt, screw and nut is tight. Make sure every SCREW PWH board is secure. Make sure the play 8x5/8 house is level. Enjoy your new playhouse! DOOR ASSEMBLY...
  • Page 51 Limited Warranty This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase.
