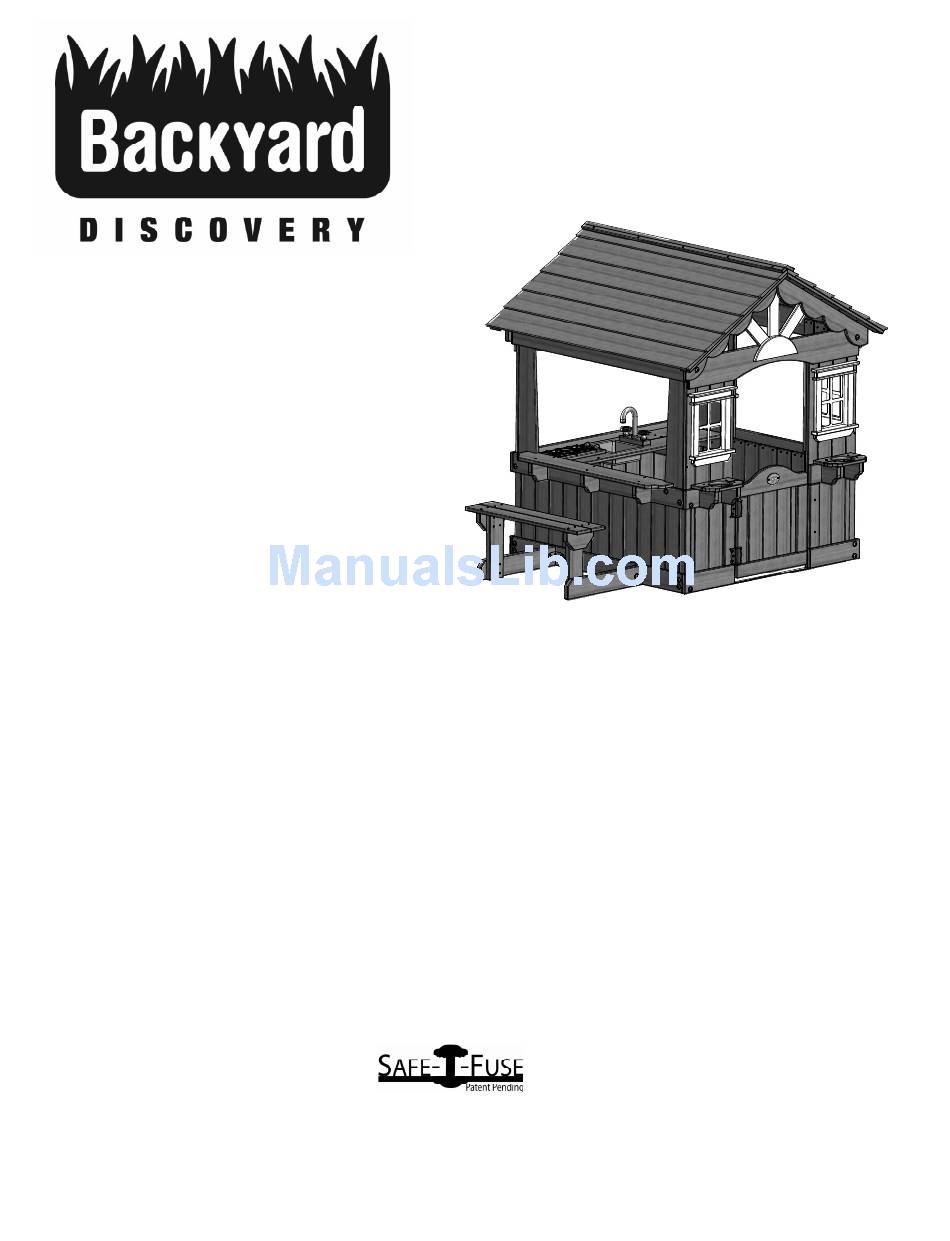

Backyard Discovery SCENIC 36013 Owner's Manual

Backyard Discovery SCENIC 36013 Owner's Manual

Play house
Hide thumbs Also See for SCENIC 36013:

Advertisement

Quick Links

Download this manual
WARNING
Adult Assembly Required.
Not suitable for children under two years,
due to sharp points and small parts.
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Register your new play house on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and
Features the
Save this assembly manual for future reference in the event that
INS-36013-A-SCENIC-ENG-12-13-12
Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
information to order replacement parts)
you need to order replacement parts.
SCENIC
Play House
Model: #36013
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCENIC 36013 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery SCENIC 36013

Summary of Contents for Backyard Discovery SCENIC 36013

  • Page 1 SCENIC Play House Model: #36013 WARNING Adult Assembly Required. Not suitable for children under two years, due to sharp points and small parts. • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Manufacturer: Backyard Discovery 3001 North Rouse...
  • Page 2 STOP Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com 1-800-856-4445 PLEASE READ THIS BEFORE STARTING ASSEMBLY...

  • Page 3: For Your Records

    Owner’s Manual Play House Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 2 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.

  • Page 4: Suggested Playground Surfacing

    Owner’s Manual Play House Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Play house 1. The Play house is designed to be installed on a level surface by an Adult with an Adult helper.

  • Page 5: Maintenance Instructions

    Owner’s Manual Play House The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12"...

  • Page 6: Disposal Instructions

    Owner’s Manual Play House Owner’s Manual Play House 4. For rusted areas on metallic members such as hand supports, brackets, etc., For rusted areas on metallic members such as hand supports, brackets, etc., For rusted areas on metallic members such as hand supports, brackets, etc., sand and repaint, using a non lead sand and repaint, using a non lead - based paint meeting the requirements of Title based paint meeting the requirements of Title...
  • Page 7 Owner’s Manual Play House APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html Select Protective Surfacing Loose-Fill Materials: Do not Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles...
  • Page 8 Owner’s Manual Play House OWNER PH-2011...
  • Page 9 Play House Assembly Manual FAQs: 1. Does the area for the play house need to be level? Yes. Backyard Discovery recommends the play house be positioned on a flat level area for maximum safety and durability. Any stakes provided should be used to secure it firmly to the ground.

  • Page 10: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Rubber Mallet - Optional) (Phillips Screw Driver) (Tape Measure) (Drill Attachments: Phillips Head) (3/16"...
  • Page 11 SAFETY AND ASSEMBLY INFORMATION SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY Dimensions: General Information: • The Scenic has one layout option. Your set has been designed and engineered for Layout Ground Dimension Safe Play Area*...

  • Page 12: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) H1 - SHELF SUPPORT - W103891 1"x3 3/8"x3 7/8" (24x86x98) H4 - BENCH SEAT SUPPORT - W104040 1"x3 3/8"x6 1/2" (24x86x166) H5 - BENCH UPRIGHT - W104041 1"x3 3/8"x11 3/4" (24x86x300) H6 - BENCH GROUND BOARD - W104042 1"x3 3/8"x18 1/8"...
  • Page 13 Parts Identification Wood Components (NOT TO SCALE) L1 - SIDE WALL HEADER - W103887 5/8"x4 3/8"x42 5/8" (16x112x1082) K6 - WALL HEADER - W103883 5/8"x5 1/4"x41 3/8" (16x134x1050) L3 - RAFTER - W104047 5/8"x4 1/4"x28 3/8" (16x108x692) K7 - ANGLED WALL BOARD - W103885 5/8"x4 5/8"x23 3/4"...
  • Page 14 Parts Identification Wood Components (NOT TO SCALE) N1 - WALL BOARD - W103880 5/8"x2 3/8"x40 1/8" (16x60x1020) N2 - WALL BOARD - W103882 5/8"x2 3/8"x40 1/8" (16x60x1020) N3 - WALL BOARD - W103888 5/8"x2 3/8"x23 3/4" (16x60x602) N4 - ROOF CAP - W104049 5/8"x2 3/8"x48 3/4"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) WP3 - WALL PANEL - W103877 1 1/4"x18 1/8"x41 3/8" (32x460x1050) RP1 - ROOF PANEL - W104046 1 3/8"x28 1/8"x48 3/4" (34x715x1238) DP1 - DOOR PANEL - W104048 1 1/4"x16 7/8"x18 1/2" (32x430x470)
  • Page 16 Parts Identification Hardware (26) K - BOLT WH 5/16x2 - H100012 D - NUT BARREL WH 5/16x7/8 - H100005 H - BOLT WH 5/16x1 1/2 - H100010 (30) BG - T-NUT 5/16 - H100074 G - BOLT WH 5/16x1 1/4 - H100009 (35) AC - WASHER LOCK EXT 8x19 - H100030 AD - WASHER LOCK EXT 12x19 - H100031...
  • Page 17 Parts Identification Accessories (NOT TO SCALE) (1) JR - FAUCET KIT - A100125 (1) MS - PHONE KIT - A100132 JS - SQUARE SINK BOWL - A100129 TD - HINGE (DOOR, SPRING LOADED) - A100327 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 (1) JX - STOVE ASSEMBLY - A100136 TZ - L BRACKET 2.5x38x50x55 - A100340 SW - PLASTIC WINDOW 44x266x329 - A100320...
  • Page 18 M4 - WALL RAIL - W103879 H1 - SHELF SUPPORT - W103891 5/8"x3 3/8"x12 1/4" (16x86x310) 1"x3 3/8"x3 7/8" (24x86x98) Left and Right Pot Holder Assemblies Step 1 Pre-drilling 1/8" holes in the back edge of H1 is recommended. Use the existing holes in M4 as a guide. FLUSH (TOP &...
  • Page 19 K5 - REAR FLOWER POT SHELF - W103892 K4 - FRONT FLOWER POT SHELF - W104051 5/8"x2 5/8"x9 1/8" (16x67x232) 5/8"x2 5/8"x9 1/8" (16x67x232) Left and Right Pot Holder Assemblies Step 2 Pre-drilling 1/8" holes in the top edge of H1 is recommended. Use the existing holes in K5 and K4 as a guide.

  • Page 20: Bench Assembly

    H6 - BENCH GROUND BOARD - W104042 1"x3 3/8"x18 1/8" (24x86x460) TZ - L BRACKET 2.5x38x50x55 - A100340 Bench Assembly Step 1 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 BOLT WH 5/16x1/2 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 BOLT WH 5/16x1/2...
  • Page 21 H5 - BENCH UPRIGHT - W104041 1"x3 3/8"x11 3/4" (24x86x300) Bench Assembly Step 2 SCREW PFH 8x1-3/4 SCREW PFH 8x1-3/4 1 3/16...
  • Page 22 H4 - BENCH SEAT SUPPORT - W104040 1"x3 3/8"x6 1/2" (24x86x166) Bench Assembly Step 3 SCREW PFH 8x1-3/4 SCREW PFH 8x1-3/4 1 9/16 1 9/16...
  • Page 23 M2 - BENCH SEAT - W104044 5/8"x3 3/8"x27 3/8" (16x86x694) Bench Assembly Step 4 Pre-drilling 1/8" holes in the top edge of H4 is recommended. Use the existing holes in M2 as a guide. SCREW PFH 8x1 3/4 SCREW PFH 8x1 3/4 2 5/8...

  • Page 24: Door Assembly

    DP1 - DOOR PANEL - W104048 TD - HINGE (DOOR, SPRING LOADED) - A100327 1 1/4"x16 7/8"x18 1/2" (32x430x470) Door Assembly Step 1 SCREW PWH 8x3/4 SCREW PWH 8x3/4...
  • Page 25 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 Door Assembly Step 2 Center ID tag on door approx. as shown. SCREW PFH 6x5/8 SCREW PFH 6x5/8...
  • Page 26 P1 - CORNER POST - W103875 1 3/8"x1 3/8"x16 1/2" (36x36x418) PLAY HOUSE ASSEMBLY Step 1 In this step you will make four post assemblies. It is crucial to note the relationship of the ID (24) T-NUT 5/16 holes with the T-Nuts in each assembly as indicated below.
  • Page 27 WP1 - WALL PANEL - W103874 (1) RIGHT REAR POST ASSEMBLY (1) RIGHT FRONT POST ASSEMBLY 1 1/4"x18 1/8"x41 3/16" (32x460x1050) PLAY HOUSE ASSEMBLY Step 2 WASHER LOCK EXT 8x19 BOLT WH BOLT WH 5/16x2 5/16x2 RIGHT REAR POST ASSEMBLY WASHER LOCK EXT 8x19...
  • Page 28 WP2 - WALL PANEL - W103876 (1) LEFT REAR POST ASSEMBLY 1 1/4"x18 1/8"x42 5/8" (32x460x1082) PLAY HOUSE ASSEMBLY Step 3 WASHER LOCK EXT 8x19 BOLT WH 5/16x2 BOLT WH 5/16x2 WASHER LOCK EXT LEFT REAR 8x19 POST ASSEMBLY...
  • Page 29 WP3 - WALL PANEL - W103877 (1) LEFT FRONT POST ASSEMBLY 1 1/4"x18 1/8"x41 3/8" (32x460x1050) PLAY HOUSE ASSEMBLY Step 4 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 LEFT FRONT POST ASSEMBLY...
  • Page 30 M3 - WALL RAIL - W103878 5/8"x3 3/8"x12 1/4" (16x86x310) PLAY HOUSE ASSEMBLY Step 5 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 WASHER LOCK EXT 8x19 BOLT WH 5/16x2...
  • Page 31 L3 - RAFTER - W104047 5/8"x4 1/4"x28 3/8" (16x108x692) K6 - WALL HEADER - W103883 VB - PLASTIC SUNBURST - A100361 5/8"x5 1/4"x41 3/8" (16x134x1050) PLAY HOUSE ASSEMBLY Step 6 SCREW PFH In this step you will make two Gable Assemblies. Use 1 1/2"...
  • Page 32 N1 - WALL BOARD - W103880 5/8"x2 3/8"x40 1/8" (16x60x1020) (1) GABLE ASSEMBLY PLAY HOUSE ASSEMBLY Step 7 FROM STEP 6 SCREW PFH 8x1 1/8 GABLE ASSEMBLY NUT BARREL WH 5/16x7/8 WASHER LOCK EXT FROM STEP 6 12x19 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 SCREW PFH 8x1 1/8 !CAUTION!
  • Page 33 N2 - WALL BOARD - W103882 5/8"x2 3/8"x40 1/8" (16x60x1020) PLAY HOUSE ASSEMBLY Step 8 6 13/16 6 13/16 SCREW PFH 8x1 1/8 THESE HOLES ARE CLOSER TO THE GROUND FLUSH SCREW PFH 8x1 1/8...
  • Page 34 (1) LEFT POT HOLDER ASSEMBLY (1) RIGHT POT HOLDER ASSEMBLY PLAY HOUSE ASSEMBLY Step 9 WASHER LOCK EXT 8x19 SCREW PFH 8x1 1/8 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 LEFT POT BOLT WH HOLDER 5/16x2 ASSEMBLY SCREW PFH 8x1 1/8 RIGHT POT HOLDER ASSEMBLY...
  • Page 35 M1 - WALL BOARD - W103881 M6 - WALL BOARD - W103884 5/8"x3 3/8"x23 1/2" (16x86x596) 5/8"x3 3/8"x6 7/8" (16x86x175) PLAY HOUSE ASSEMBLY Step 10 SCREW PFH (20) 8x1-1/8 SCREW PFH 8x1-1/8...
  • Page 36 N6 - DOOR STOP - W104056 XP - METAL TIE STRAP - A100414 5/8"x2 3/8"x3 7/8" (16x60x100) PLAY HOUSE ASSEMBLY Step 11 Attach N6 approximately 2" up from ground and locate as shown. SCREW PWH 8x3/4 SCREW PFH 8x1 1/8 SCREW PWH 8x3/4 SCREW PFH 8x1 1/8...
  • Page 37 L5 - ANGLED WALL BOARD - W103886 5/8"x4 3/8"x23 3/4" (16x112x602) N5 - DOOR TRIM - W104055 (1) GABLE ASSEMBLY 5/8"x2 3/8"x11 1/4" (16x60x286) PLAY HOUSE ASSEMBLY Step 12 BOLT WH 5/16x1 1/4 WASHER LOCK EXT GABLE ASSEMBLY 8x19 FROM STEP 6 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19...
  • Page 38 L1 - SIDE WALL HEADER - W103887 5/8"x4 3/8"x42 5/8" (16x112x1082) K7 - ANGLED WALL BOARD - W103885 5/8"x4 5/8"x23 3/4" (16x117x602) PLAY HOUSE ASSEMBLY Step 13 BOLT WH 5/16x1 1/4 SCREW PFH SCREW PFH 8x1 1/4 8x1 1/8 SCREW PFH SCREW PFH 8x1 1/8 8x1 1/4 WASHER...
  • Page 39 L1 - SIDE WALL HEADER - W103887 5/8"x4 3/8"x42 5/8" (16x112x1082) N3 - WALL BOARD - W103888 5/8"x2 3/8"x23 3/4" (16x60x602) PLAY HOUSE ASSEMBLY Step 14 SCREW PFH 8x1-1/4 SCREW PFH 8x1-1/8 SCREW PFH 8x1-1/8 SCREW PFH 8x1-1/4 1 5/16...
  • Page 40 M5 - WALL BOARD - W103889 M6 - WALL BOARD - W103884 5/8"x3 3/8"x7" (16x86x178) 5/8"x3 3/8"x6 7/8" (16x86x175) N3 - WALL BOARD - W103888 5/8"x2 3/8"x23 3/4" (16x60x602) PLAY HOUSE ASSEMBLY Step 15 SCREW PFH (24) 8x1-1/8 SCREW PFH 8x1-1/8...
  • Page 41 J1 - SHELF SUPPORT - W103895 1"x2 3/8"x38 3/8" (24x60x976) PLAY HOUSE ASSEMBLY Step 16 SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2...
  • Page 42 J2 - SHELF SUPPORT - W103896 1"x2 3/8"x8 7/8" (24x60x224) PLAY HOUSE ASSEMBLY Step 17 SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2...
  • Page 43 K3 - REAR COUNTER TOP - W103894 K2 - FRONT COUNTER TOP - W103893 5/8"x5 1/4"x40 1/8" (16x134x1018) 5/8"x5 1/4"x40 3/4" (16x134x1034) PLAY HOUSE ASSEMBLY Step 18 SCREW PFH (11) 8x1 1/2 SCREW PFH 8x1 1/2 HOLES TO RIGHT OF SINK...
  • Page 44 J3 - SHELF SUPPORT - W103897 1"x2 3/8"x8 7/8" (24x60x224) PLAY HOUSE ASSEMBLY Step 19 SCREW PFH 8x1 1/2 SCREW PFH 8x3 SCREW PFH 8x1 1/2 SCREW PFH...
  • Page 45 WP - SMALL PLASTIC WINDOW INSIDE TRIM - A100364 SW - PLASTIC WINDOW 44x266x329 - A100320 PLAY HOUSE ASSEMBLY Step 20 Center windows in openings and attach as shown. Pre-drilling 3/16" holes using WP as a guide is recommended. SCREW PWH (16) 8x1-1/4 SCREW PWH 8x1-1/4...
  • Page 46 K1 - SERVING SHELF - W103890 H1 - SHELF SUPPORT - W103891 5/8"x5 1/4"x35 5/8" (16x134x906) 1"x3 3/8"x3 7/8" (24x86x98) PLAY HOUSE ASSEMBLY Step 21 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2...
  • Page 47 RP1 - ROOF PANEL - W104046 1 3/8"x28 1/8"x48 3/4" (34x715x1238) PLAY HOUSE ASSEMBLY Step 22 FLUSH SCREW PFH 8x1-1/2 SCREW PFH 8x1-1/2...
  • Page 48 RP1 - ROOF PANEL - W104046 1 3/8"x28 1/8"x48 3/4" (34x715x1238) PLAY HOUSE ASSEMBLY Step 23 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2...
  • Page 49 N4 - ROOF CAP - W104049 5/8"x2 3/8"x48 3/4" (16x60x1238) O1 - ROOF CAP - W104050 5/8"x1 3/8"x48 3/4" (16x34x1238) PLAY HOUSE ASSEMBLY Step 24 SCREW PFH (10) 8x1 1/8 SCREW PFH 8x1 1/8...
  • Page 50 (1) BENCH ASSEMBLY PLAY HOUSE ASSEMBLY Step 25 BOLT WH 5/16x1 WASHER LOCK EXT 12x19 NUT BARREL WH 5/16x7/8 BENCH ASSEMBLY WASHER LOCK EXT 12x19 BOLT WH 5/16x1 NUT BARREL WH 5/16x7/8...
  • Page 51 (1) JX - STOVE ASSEMBLY - A100136 JS - SQUARE SINK BOWL - A100129 PLAY HOUSE ASSEMBLY Step 26 SCREW PFH 8x1 1/8 SCREW PWH 8x3/4 SCREW PWH 8x3/4 SCREW PFH 8x1 1/8...
  • Page 52 (1) JR - FAUCET KIT - A100125 (1) MS - PHONE KIT - A100132 PLAY HOUSE ASSEMBLY Step 27 SCREW PFH 8x1-1/4 SCREW PFH 8x1/2 SCREW PFH 8x1/2 SCREW PFH 8x1-1/4...
  • Page 53 (1) DOOR ASSEMBLY PLAY HOUSE ASSEMBLY Step 28 Upon completion of this step, double check to make sure every bolt, screw and nut is tight. Make sure every SCREW PWH board is secure. Make sure the play 8x5/8 house is level. Enjoy your new playhouse! DOOR ASSEMBLY...

  • Page 54: Limited Warranty

    Limited Warranty This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase.
  • Page 55 Backyard Discovery disclaims all other representations and warranties of any kind, express or implied. This Warranty gives you specific legal rights. You may have other rights as well which vary from state to state or province to province. This warranty excludes all...
