Installation

The P216 can be used for single or dual pressure input.
In the case of dual input the controller selects the input
with the greater cooling demand to control the fan speed.
There are four pressure ranges:
• 4 to 10 bar
• 8 to 14 bar
• 14 to 24 bar
• 22 to 42 bar
≥
50 mm
≥
50 mm
≥
50 mm
≥
50 mm

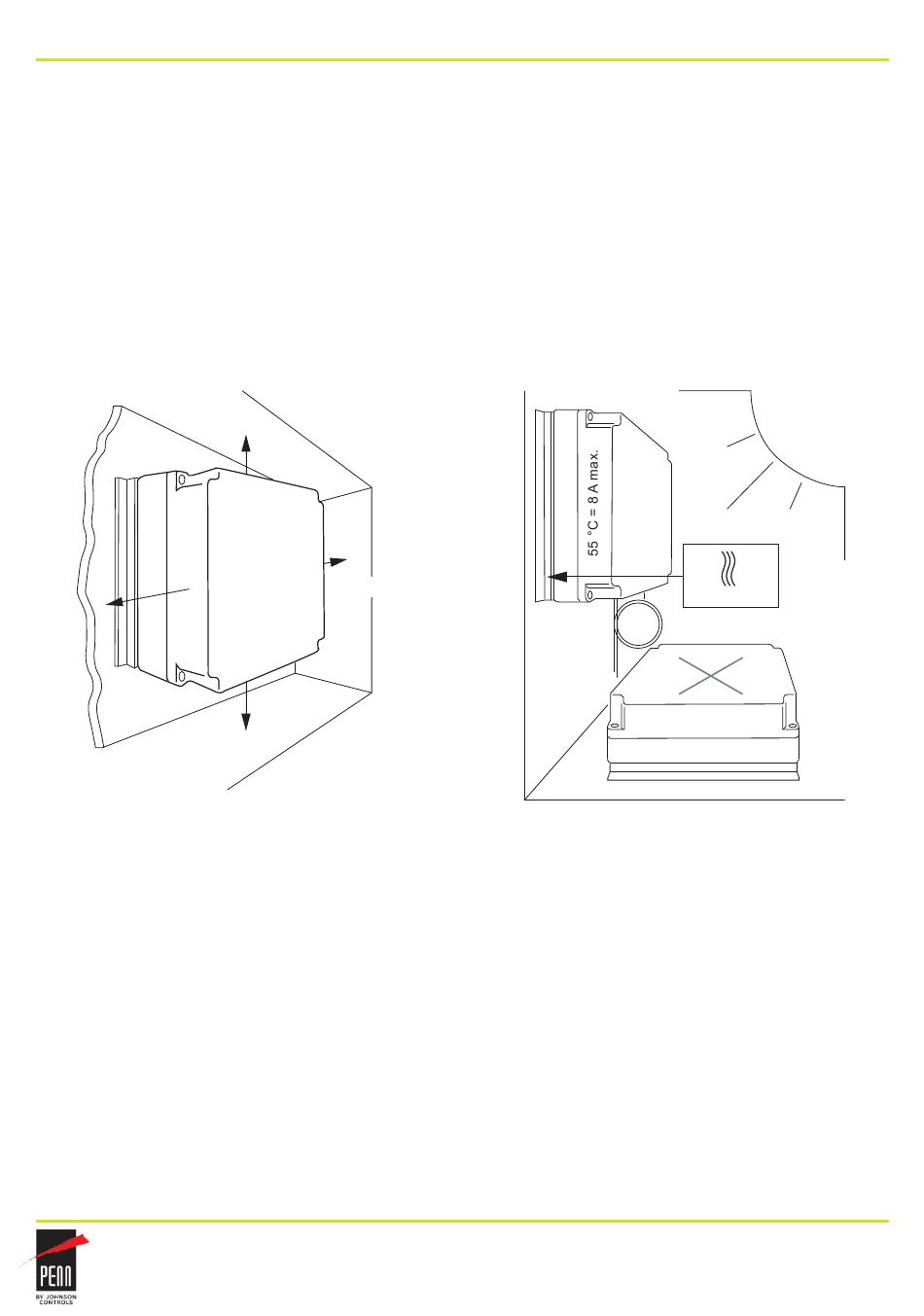

For proper aircirculation there should be a clearance
around the controller of at least 10 mm. When mounted
inside a cabinet, holes for air circulation should be
provided. If the P216 cannot be mounted vertically,
additional limitations apply.
Avoid mounting in direct sunlight the maximum allowable
current will be 8A instead of 12A or the maximum
allowable ambient temperature is reduced to 40 °C
instead of 55 °C.
If a pumpdown system is used the pressure connection
must be made at the high-pressure side of the system,
(before the solenoid valve).
IP54
55 °C = 6 A max.
40 °C = 8 A max.
PB_P216_08 2014
P = 8 W max.
IP54
