Installation

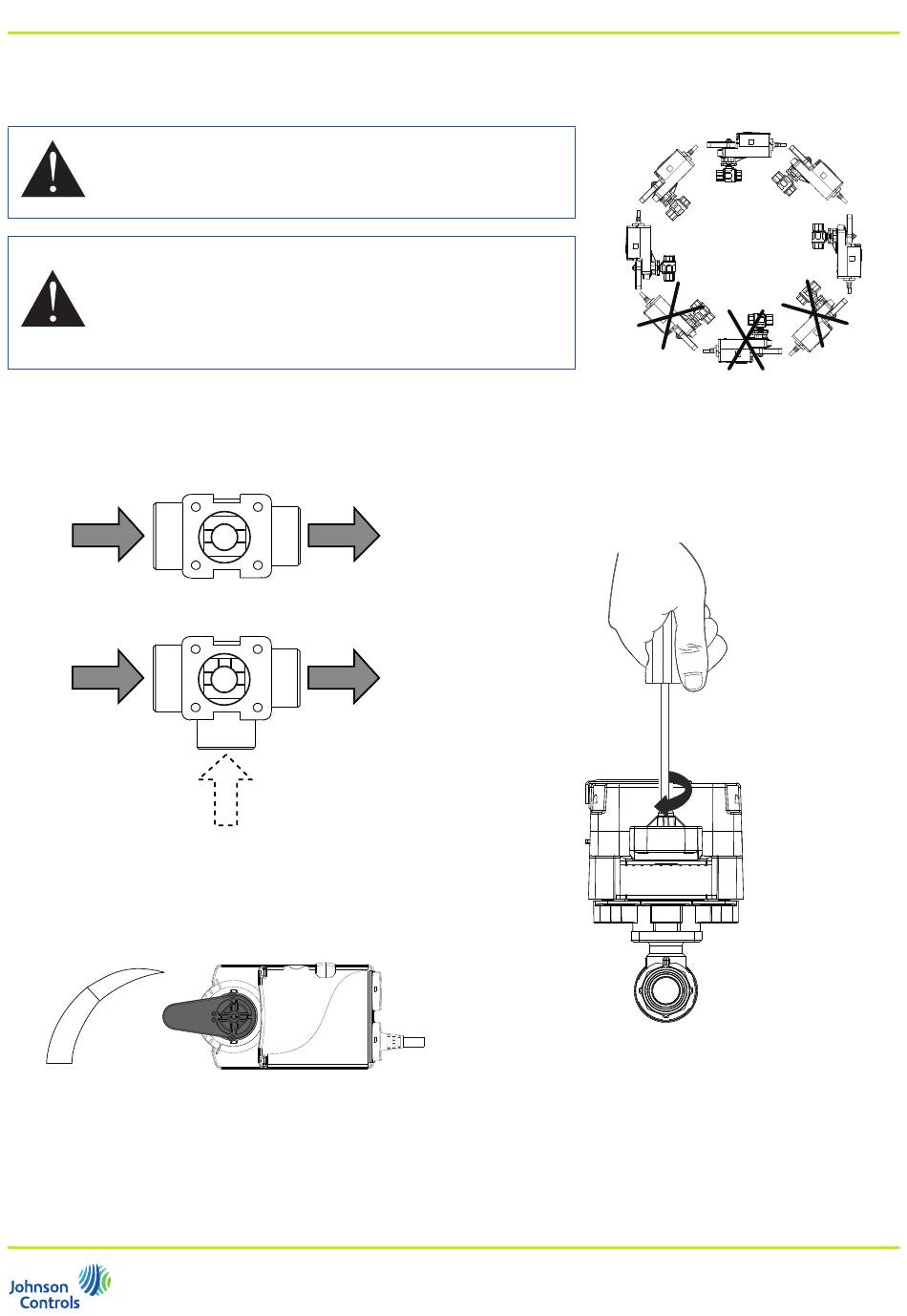

Install the ball valve with the actuator at or above the center line of the horizontal piping.
WARNING:
the stem horizontal to the piping.
Failure to follow this precaution may shorten the life of the
actuator.
WARNING:
environments where corrosive substances or vapors
could be present.
Exposure of the actuator to corrosive environments may
damage the device's internal components, and will void
the warranty.
Mounting the actuator Inline to the Valve
1. Make sure the valve stem is inline to the valve Openings.
A
A
2. Verify that the actuator handle is inline to the actuator.
0
50
100
In steam applications, install the valve with
Do not install or use this actuator in or near
B
3. Place the actuator inline into the valve.
4. Tighten the actuator handle to the valve.
C
C
