P216 Series Condenser Fan Speed Controller
Installation Instructions
P216xxx-x
Applications
IMPORTANT: Use this P216 Series Condenser
Fan Speed Controller only as an operating control.
Where failure or malfunction of the P216 Series Fan
Speed Controller could lead to personal injury or
property damage to the controlled equipment or
other property, additional precautions must be
designed into the control system. Incorporate and
maintain other devices, such as supervisory or
alarm systems or safety or limit controls, intended to
warn of or protect against failure or malfunction of
the P216 Series Fan Speed Controller.
CAUTION: Risk of Property Damage
Use only single-phase Permanent Split
Capacitor (PSC) motors approved by the
manufacturer for speed control
!
application with the P216 Series
controller. Failure to use a single-phase
PSC motor may damage the motor and
other property.
Mounting
Location and Mounting Considerations
Observe these guidelines when locating and mounting
a P216 Series Fan Speed Controller:
• Ensure that the mounting surface and mounting
hardware can support the control and wiring.
• Mount the P216 Series controller upright on a
vertical surface with the heat sink fins oriented
vertically and the conduit/electrical holes facing
down.
Refer to the QuickLIT website

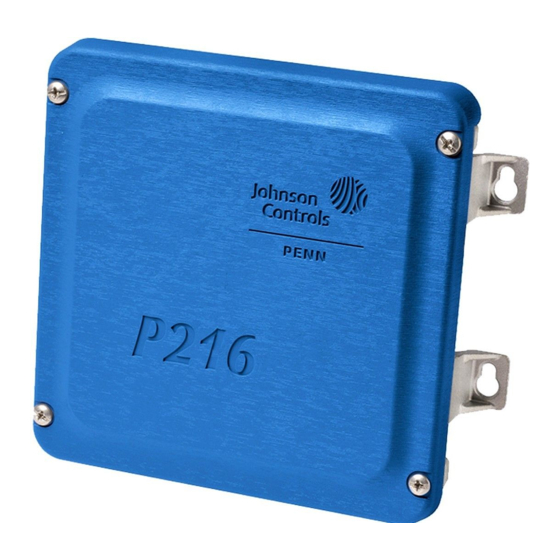

Figure 1: P216 Condenser Fan Speed Controller
•
•
P216 Series Condenser Fan Speed Controller Installation Instructions
Part No. 24-85895-18, Rev. D
for the most up-to-date version of this document.
178
165
Mounting Dimensions, mm
Ensure that air can flow through the heat sink fins
and provide 10 cm (4 in.) minimum clearance
around the heat sink.
Mount the P216 Series controller in a location
away from sources of excessive heat and within
the specified ambient operating conditions.
See Technical Specification for ambient operating
conditions.
Issued 27 August 2015
76
66
1
