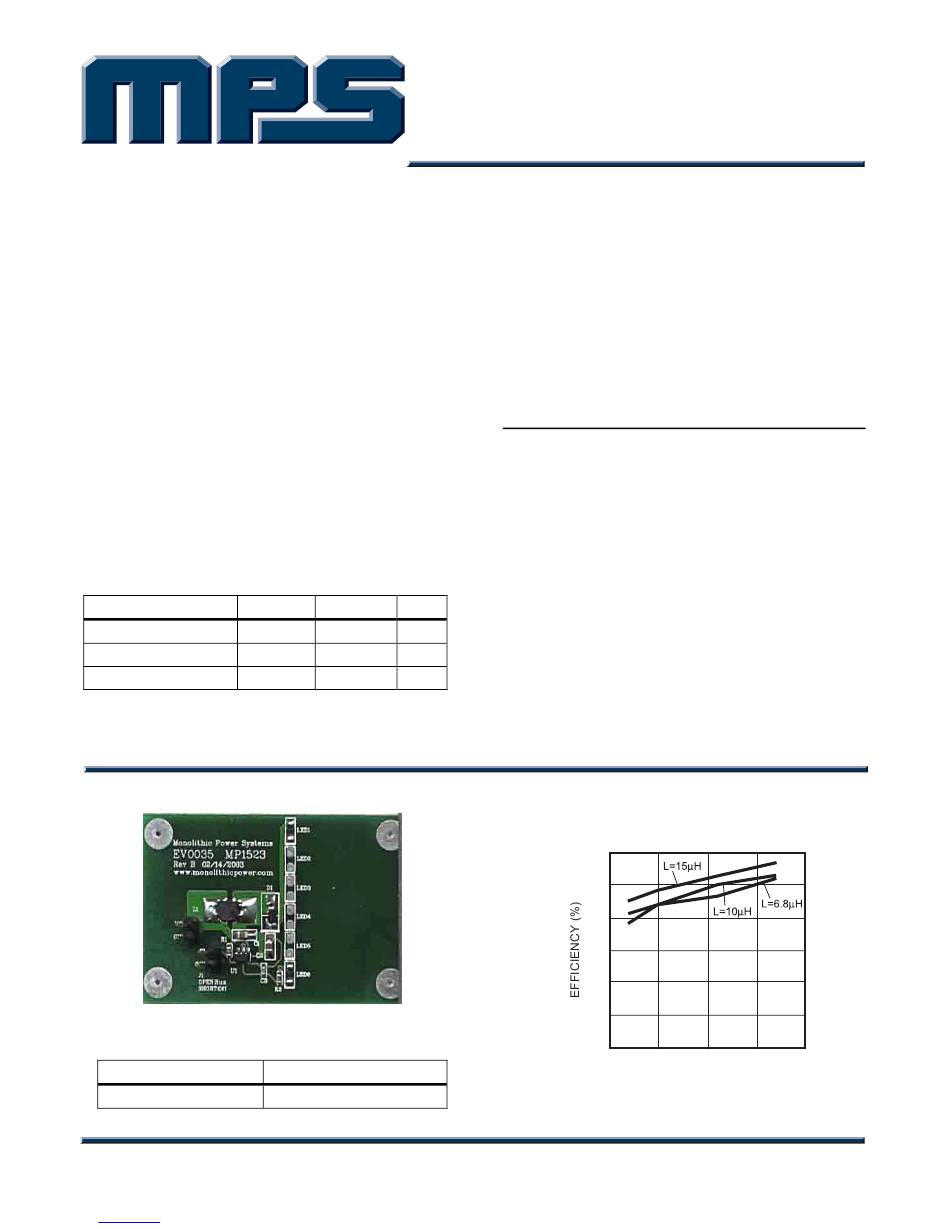

MPS EV0035 Quick Start Manual

The Future of Analog IC Technology
DESCRIPTION
The EV0035 is the evaluation board for the
MP1523, which is designed for driving up to six
(6) series WLEDs from a single cell Lithium Ion
battery. The board is set up to obtain 20mA
LED current. The current can be adjusted by
varying the resistor R2.
The MP1523 uses current limited, variable
frequency architecture to regulate the LED
current while maintaining high efficiency. The
BIAS pin measures the output voltage and turns
off the converter if an over voltage condition is
present to prevent damage due to an open
circuit condition. The LED current is measured
with an external current sense resistor. The low
0.4V full-scale regulation threshold and 0.5Ω
power switch minimize power loss to improve
efficiency.
ELECTRICAL SPECIFICATIONS
Parameter
Input Voltage
# of WLEDs
LED Current

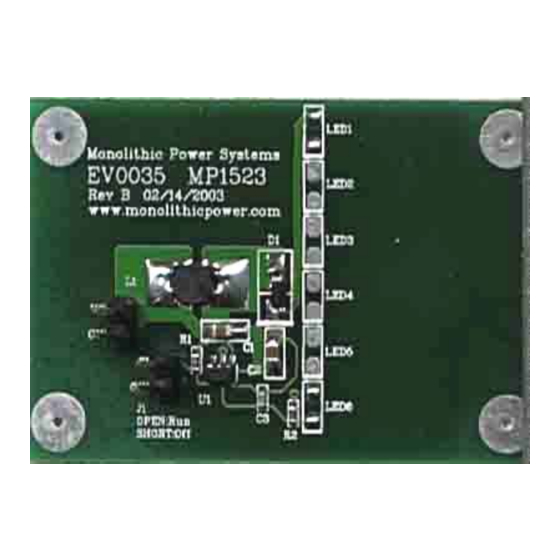

EV0035 EVALUATION BOARD
(L x W x H) 2.0" x 1.4" x 0.5"
Board Number
EV0035
EV0035 Rev. 1.2
3/30/2006
Downloaded from Elcodis.com electronic components distributor
Symbol Value
V 2.7 – 25
IN
up to 6
I 20
LED
(5.0cm x 3.5 x 1.2cm)
MPS IC Number
MP1523DT
MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
TM
6 White LEDs, 20mA Precision
WLED Driver Evaluation Board
TM
FEATURES
•
2.7V to 25V Input Voltage Range
•
Drives up to 6 Series White LEDs
•
Surface-Mount Components
•
Fully Assembled and Tested
APPLICATIONS
•
Cell Phones
•
Handheld Computers and PDAs
•
Digital Still and Video Cameras
•
Small LCD Displays
"MPS" and "The Future of Analog IC Technology" are Trademarks of Monolithic
Power Systems, Inc.
Units
V
mA
www.MonolithicPower.com
© 2006 MPS. All Rights Reserved.
EV0035
Efficiency vs V
IN
85
80
75
70
2.5 3.0 3.5 4.0
V (V)
IN
4.5
EV0035_AC01
1
