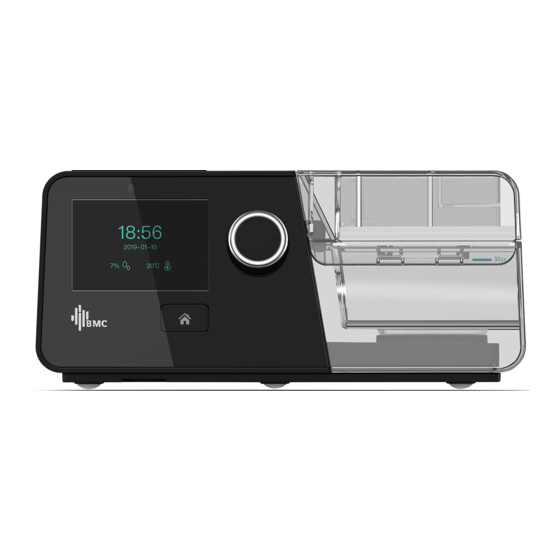

BMC G3 A20 Quick Operation Manual

Hide thumbs Also See for G3 A20:

G3 A20／G3 C20 Quick Operation Manual

1. Button Functions

Home Button: Return to the previous menu or main interface.

Knob: Adjust device settings.

Start / Stop Button: Start / Stop delivering air.

A. Connect one end of the tube to the assembled mask.

Connect one end of the tube to the air outlet of the device, as shown in the figure above. Or

Connect the heated tubing joint to the air outlet of the device, and then insert the power plug of

the heated tubing into the heated tubing port on the back of the device.

C. Connect the power adapter to the DC inlet of the main device.

D. Connect the power cord to the power adapter.

E. Plug the power cord into the power outlet.

A. When the device is powered on, the display screen will display the

the left figure below. If the heated tube is connected correctly, the icon

in the Main Interface on the screen of the device, as shown in the right figure below.

G3 A20／G3 C20 Quick Operation Manual V1.2

1 / 3

Main Interface, as

shown in

will

become a number

Table of Contents

Do you have a question about the G3 A20 and is the answer not in the manual?

Page 1 G3 A20／G3 C20 Quick Operation Manual V1.2 G3 A20／G3 C20 Quick Operation Manual 1. Button Functions Home Button: Return to the previous menu or main interface. Knob: Adjust device settings. Start / Stop Button: Start / Stop delivering air. 2. Setting up the Device A.
Page 2 G3 A20／G3 C20 Quick Operation Manual V1.2 Press the Knob to access the Initial Setup Interface of the Patient Menu, as shown in the figure below. Press the Knob to access the Setup Interface, as shown in the figure below.
Page 3 5. Usage score of G3 A20 / G3 C20 After each treatment, G3 A20 / G3 C20 will provide a Usage Score (for CPAP and AutoCPAP mode only) and Usage Summary on the screen for the user to get a quick understanding of the usage for the recent one day (from 12:00 noon of previous day to 12:00 noon of the day).
