BMC G3 Series Quick Operation Manual

G3 BPAP Series Quick Operation Manual
1. Button Functions
Home Button: Return to the previous menu or main interface.
Knob: Adjust device settings.
Start / Stop Button: Start / Stop delivering air.

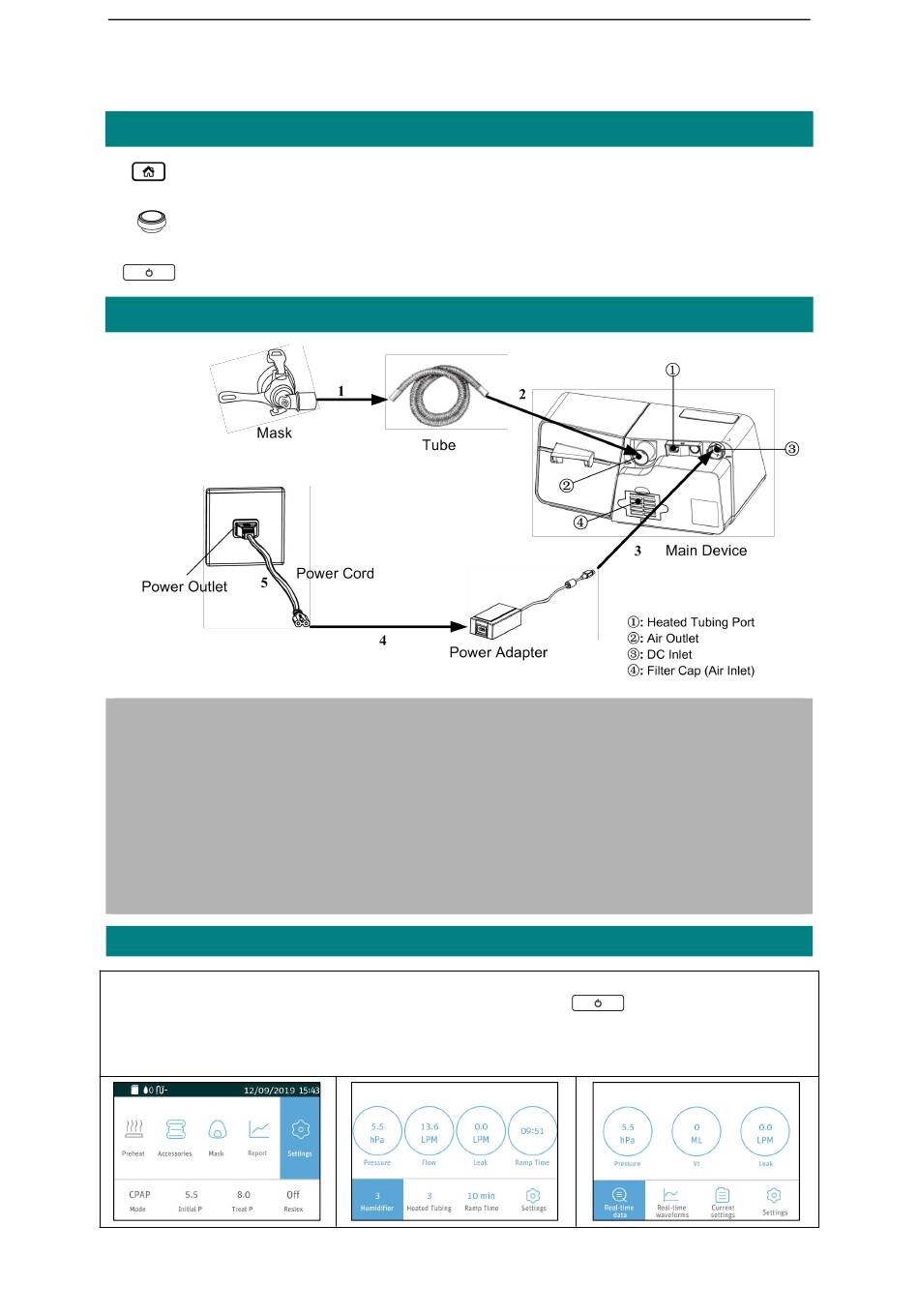

2. Setting up the Device
A. Connect one end of the tube to the assembled mask.
B. Connect one end of the tube to the air outlet of the device, as shown in the figure above. Or
Connect the heated tubing joint to the air outlet of the device, and then insert the power plug of
the heated tubing into the heated tubing port on the back of the device.
C. Connect the power adapter to the DC inlet of the main device.
D. Connect the power cord to the power adapter.
E. Plug the power cord into the power outlet.
3. Adjusting Device Settings
A. Connect the power cord and power adapter properly, The screen displays the Main Interface
shown in the figure left below,
delivering air, the screen displays the Main Interface shown the figure middle below (applicable to
G3 B20A, G3 B25S, G3 B25A models) or as shown in the figure right below (applicable to G3
B25VT, G3 B30VT, G3 B30SV, G3 LAB models).
G3 BPAP Series Quick Operation Manual V1.2
press the Start / Stop Button
1 / 3
, and the device will start
