3 Hardware Integration

The ATOMAS-MINI-DUAL has been designed to allow for flexible hardware integration to existing or new product
designs. The ATOMAS-MINI-DUAL proposes four (4) mounting holes for securing to your enclosure. In addition,
a slight clearance around the board's edge can also be used for extrusion-type enclosures.
When integrating the ATOMAS-MINI-DUAL into a product design, position the module to allow for air circulation
around the board in order to maximize the chances of heat dissipation.
Warning: Be careful not to damage the module when using mounting screws.

4 Temperature Considerations

The ATOMAS-MINI-DUAL has been designed with industrial temperature components (-40C to +85C); however,
reaching your temperature requirements may require that you add heatsinks to certain board-level components

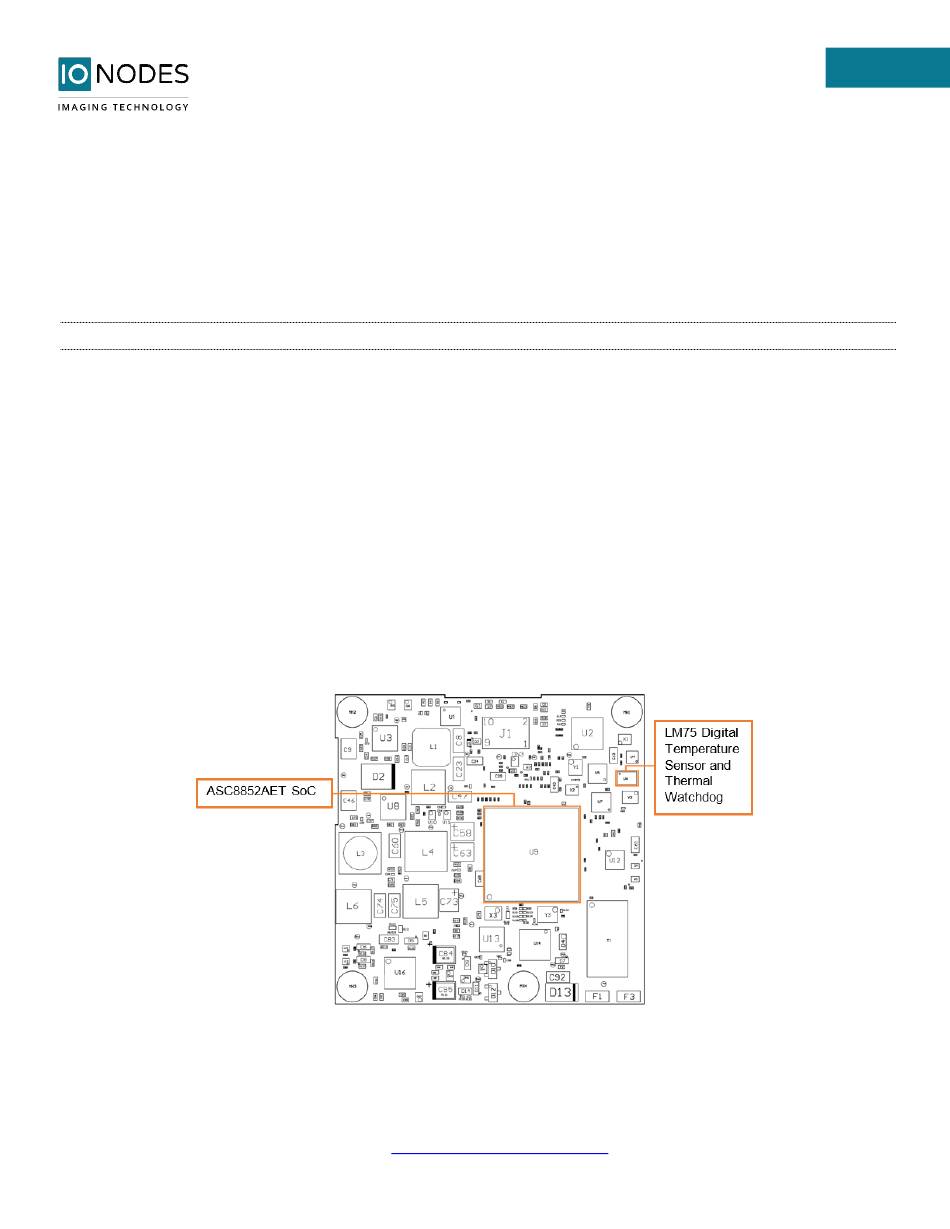

which generate substantial heat. The placement of the SoC and temperature sensor on the PCB are clearly
marked in the picture below.
