Serial Port 1 – This section allows you to configure serial port parameters for the serial port 1, exposed
•
on connector J6 (pins 1-4). This serial port is intended for connection to a PTZ controller. Configure the
serial port settings to match the serial port settings of your PTZ controller.

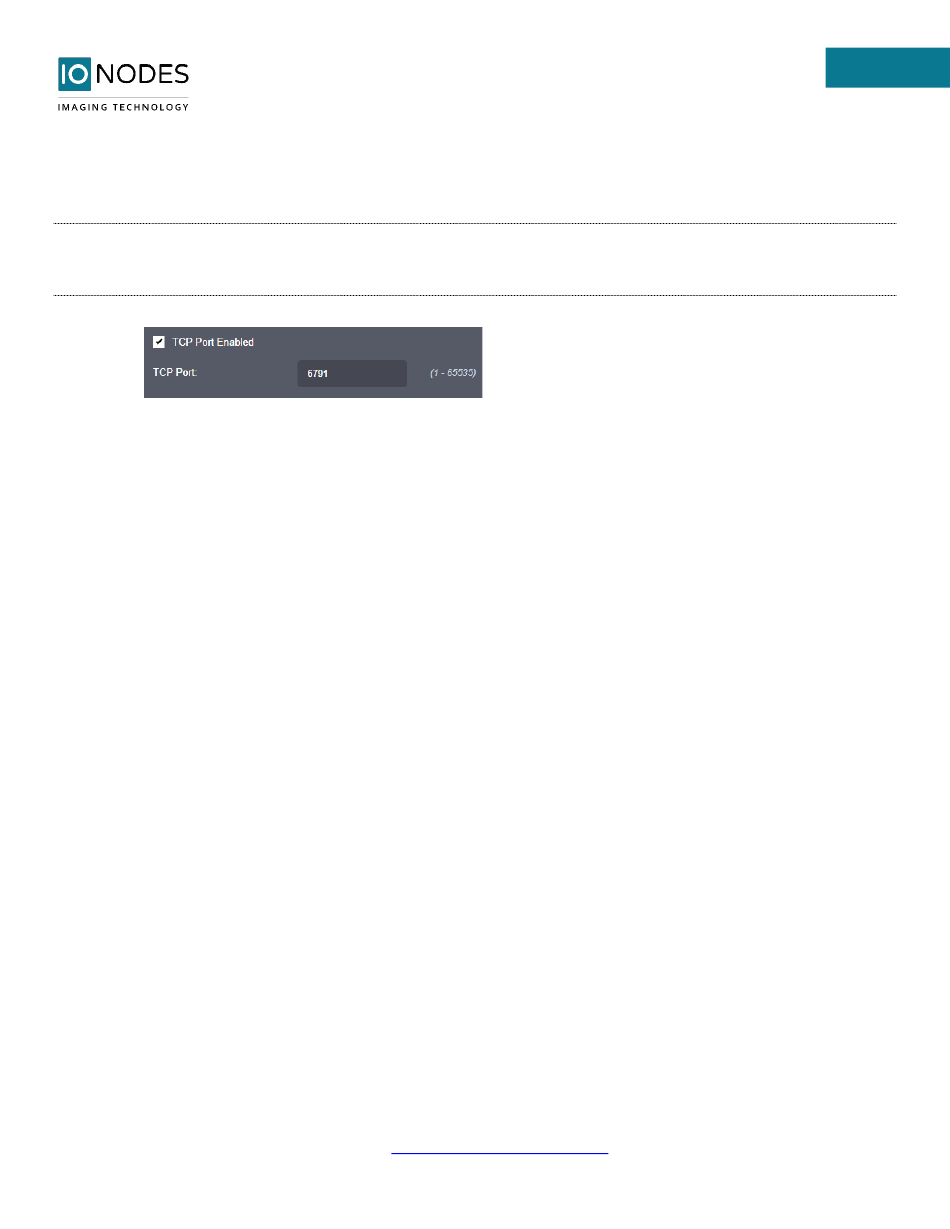

Note: The TCP port under Serial Port 1 allows the user to send data received on the Eth interface, on the
defined TCP port, directly to the serial port, without any alteration. If your application does not require
this functionality, there is the possibility of disabling it by unchecking the corresponding tick box.
Serial Port 1 Point to Point – This section allows you to configure a point to point serial port connection
•
for creating a persistent serial port connection with a network endpoint.
Serial Port 51 – This section will only appear if you have enabled the "Use Transparent Port" feature in
•
the Imaging > Digital Sensor Settings section in the Configuration menu. This serial port instance
represents the serial port connection between the encoder module and the camera sensor via the
corresponding video interface. This section allows you to configure the TCP port on which the encoder
module will accept transparent TCP connections – this connection allows external software / devices to
send command and control data directly to a camera sensor. When in Custom sensor mode, this section
will expose serial port settings to allow you to properly configure the serial port connection with your
custom camera sensor.
