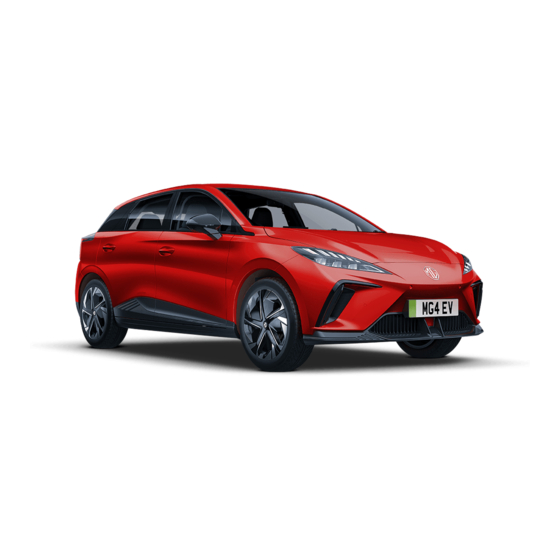

MG MG4 Owner's Handbook Manual
Hide thumbs Also See for MG4:
Table of Contents

Advertisement

Quick Links

1 Foreword....................................................................................................................... 15
Introduction .................................................................................................................................. 16
The Owner's Handbook ....................................................................................................................................................... 16
Status at Time of Printing ..................................................................................................................................................... 16
Symbols Used .......................................................................................................................................................................... 17
Identification Information ........................................................................................................... 18
Vehicle Identification .............................................................................................................................................................. 18
Vehicle Identification Label ................................................................................................................................................... 19
Instructions for Use of Electric Vehicle...................................................................................... 21
Effects of Ambient Temperature ......................................................................................................................................... 21
Instructions for High Voltage Battery Pack Recycling .................................................................................................... 21
Driving Range........................................................................................................................................................................... 22
Equalisation Charging............................................................................................................................................................. 23
Intelligent Charging................................................................................................................................................................. 23
Crash Outage Control .......................................................................................................................................................... 24
High Voltage System............................................................................................................................................................... 24
Precautions in the Event of an Accident ........................................................................................................................... 26
2 Instruments and Controls ........................................................................................... 29
CONTENTS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG4 and is the answer not in the manual?

Questions and answers

Mark Whitbread
March 31, 2025

I am using a totally standard USB to USB-C wire connector but the infotainment system does not seem to recognise my pretty new A14 Samsung Galaxy phone when I try to activate Android Auto. Any ideas?

2 comments:
Mr. Anderson
March 31, 2025

The MG4 infotainment system is not recognizing the Samsung Galaxy A14 phone when using a USB to USB-C cable for Android Auto because the MG4 only supports Android Auto through the USB-A port. The USB-C port in the MG4 is only for charging and does not support data transfer for Android Auto. Additionally, using a low-quality or non-genuine cable may prevent the device from connecting properly.

This answer is automatically generated

Mark Whitbread
April 1, 2025

@Mr. Anderson - tx. I was using USB-A to C but mustve been cable quality. Tried diff cables & found 1 that worked.

Zvi Buckman
January 26, 2025

How can I get the charging port open with the car dead and even opening the doors manually did not release the charging port door?

1 comments:
Mr. Anderson
May 14, 2025

If the MG MG4 is dead and the manual door release does not work, you can try the emergency release cable for the charging port. Be aware that it may require a very hard pull to activate. If that fails, you can attempt to jump start the car using a donor vehicle to restore power, which should allow normal unlocking of the charging port.

This answer is automatically generated

Zvi Buckman
January 26, 2025

The car is completely dead. Opened doors manually, but I cannot open the charging port in order to charge the car.

1 comments:
Mr. Anderson
May 14, 2025

To open the charging port on an MG MG4 when the car is completely dead, you must first restore power to the 12V battery. The charging port cover will not open if the central locking system is engaged, which requires 12V power. You can try jump-starting the 12V battery using a donor vehicle. Once the 12V system is powered and the central locking is disengaged, you can press on the charging port cover to open it.

This answer is automatically generated

Rosie
August 1, 2025

How to turn off hazard lights

Brian Shubrook
February 23, 2025

Unpair bluetooth phone when selling vehicle

Summary of Contents for MG MG4

  • Page 1: Table Of Contents

    CONTENTS 1 Foreword........................15 Introduction ..........................16 The Owner's Handbook ............................... 16 Status at Time of Printing ..............................16 Symbols Used ..................................17 Identification Information ......................18 Vehicle Identification ................................18 Vehicle Identification Label ..............................19 Instructions for Use of Electric Vehicle..................21 Effects of Ambient Temperature ............................
  • Page 2 CONTENTS Instrument Pack ........................... 30 Instrument Information Display Operation ........................30 Message Centre..................................32 Warning Message ..................................33 Warning Lamps and Indicators....................35 Lights and Switches........................49 Master Light Switch................................49 Headlamp Leveling Adjustment ............................51 Light Lever Switch .................................. 52 Direction Indicators ................................
  • Page 3 CONTENTS Horn............................... 61 Power Socket ..........................62 Front Console Power Socket............................... 62 Rear USB Port ..................................63 Wireless Charging System for Mobile Phones ................ 64 Wireless Charging of Mobile Phones..........................64 Rearview Mirrors .......................... 66 Exterior Rearview Mirrors ..............................66 Interior Rearview Mirror..............................
  • Page 4 CONTENTS Direct Driver Monitor System ............................76 Storage Devices ..........................78 Instructions for Use ................................78 Glove Box....................................78 Storage Box....................................79 Glasses Box ....................................80 Cup Holder............................ 82 Centre Console Cup Holder............................... 82 3 Air Conditioning and Audio Systems ................ 83 Ventilation .............................
  • Page 5 Temperature Control................................92 Infotainment System ......................... 93 Important Safety Information............................... 93 Privacy and Data Sharing............................... 94 Precautions for Screen Usage .............................. 94 Basic Operations..................................95 Bluetooth Phone ..................................99 Entertainment..................................101 Vehicle-Mobile Phone Interconnection..........................107 MG Touchpoint ..................................108 Vehicle Settings..................................108 Settings ....................................108...
  • Page 6 CONTENTS 4 Seats and Restraints ....................111 Seat .............................. 112 Seat Positions and Backrest Angle ............................112 Head Restraints..................................113 Front Seats .....................................114 Rear Seats....................................116 Front Seat Heating Function ............................117 Seat Belts ............................ 118 Protection Provided by Seat Belts ............................119 Wearing Seat Belts................................120 Children and Seat Belts ...............................123 Seat Belt Pre-tensioners..............................125 Seat Belt Checks, Maintenance and Replacement......................126...
  • Page 7 CONTENTS Child Restraints .......................... 140 Important Safety Instructions about Using Child Restraints ..................140 Fixing Child Restraints.................................144 Approved Child Restraint Positions ..........................147 5 Starting & Driving ...................... 153 Keys .............................. 154 Overview ....................................154 Replacing the Smart Key Battery ............................155 Child Proof Locks ........................158 Starting and Stopping the Power System................
  • Page 8 CONTENTS Charging Your Vehicle at Home ............................166 Installed Charging Points..............................166 Home Charging Guide.................................166 Charging and Medical Condition Awareness .........................167 Charging Port ..................................167 Electric Charging Identifier Label ...........................169 Rapid Charging ..................................172 Slow Charging..................................173 Charging Information ................................175 Equalisation Charging................................176 Charging Times ..................................176 Discharging .....................................180 Pedestrian Alert System......................
  • Page 9 CONTENTS Protection Mode...................................187 Brake System ..........................189 Overview ....................................189 Parking Brake System - Electronic Parking Brake ( EPB ) ..................190 Service Brake System................................192 Adaptive Cruise Control System....................199 Activation of Adaptive Cruise Control..........................199 Adaptive Cruise Target Following Distance Adjustment.....................201 Adaptive Cruise Target Speed Adjustment........................201 Adaptive Cruise Pause/Standby ............................202 Automatic Deactivation of Adaptive Cruise ........................202 Adaptive Cruise Override ..............................203...
  • Page 10 CONTENTS Speed Limit Assistance System............................212 Lane Assist System ................................217 Traffic Jam Assist System..............................220 Forward Collision System..............................223 Parking Aid..........................227 Ultrasonic Sensor Parking Aid............................227 360 Around View System ..............................229 Rear Driving Assistance System * .................... 230 System Overview..................................230 Switching the System Functions On/Off..........................231 Blind Zone Safety Assist..............................231 Rear Cross Traffic Assist..............................233 Rear Collision Warning ...............................235...
  • Page 11 CONTENTS Alarm System ..........................243 Power Immobiliser ................................243 Anti-theft System ..................................244 Manual Tailgate ..................................247 Emergency Tailgate Opening ..............................248 6 Emergency Information .................... 251 Hazard Warning Devices......................252 Warning Triangle ...................................252 Vehicle Recovery......................... 253 Towing for Recovery................................253 Transporter or Trailer .................................256 eCall - SOS Emergency Assistance ..................
  • Page 12 CONTENTS Fuse ......................................269 Passenger Compartment Fuse Box ..........................270 Front Compartment Fuse Box ............................273 Bulb Replacement ........................277 Bulb Specification..................................277 Replacement ..................................277 7 Service and Maintenance ..................285 Maintenance..........................286 Routine Servicing ..................................286 Bonnet ............................289 Opening the Bonnet................................289 Closing the Bonnet................................289 Bonnet Open Alarm................................289 Front Compartment ........................
  • Page 13 CONTENTS Coolant Check and Top Up ...............................293 Coolant Specification................................293 High Voltage Battery Pack ......................295 Precautions and restricted conditions for use of battery ...................295 Washer ............................298 Washer Fluid Check and Top Up............................298 Washer Nozzles..................................299 Wipers ............................300 Wiper Blades ..................................300 Replacing Front windscreen Wiper Blades........................301 Brake............................
  • Page 14 CONTENTS Cleaning and Vehicle Care......................310 Exterior....................................310 Cleaning the Interior................................313 8 Technical Data ......................315 Technical Data Dimensions ....................... 316 Weights............................318 Towing Weights ..................................319 Electric Drive Transmission....................... 320 Recommended Fluids and Capacities ..................321 Four-Wheel Alignment Parameter Table (Unladen).............. 322 Wheels and Tyres ........................
  • Page 15: Foreword

    Foreword 16 Introduction 18 Identification Information 21 Instructions for Use of Electric Vehicle...
  • Page 16: Introduction

    This handbook describes all of the vehicles and standard by the manufacturer or the MG Authorised Repairer who equipment specification within the model range. Some of supplied the publication, except in respect of personal...
  • Page 17: Symbols Used

    FOREWORD Symbols Used Asterisk An asterisk (*) appearing within the text identifies features Warning or items of equipment that are either optional, or that only This warning symbol identifies procedures some vehicles in the model range are equipped with. that must be followed precisely, information that must be considered with Illustration Information great care, in order to reduce the risk of...
  • Page 18: Identification Information

    1 Vehicle Identification Number (VIN) diagnostic equipment. 2 Drive Motor Number Drive Motor Number 3 Electric Drive Transmission Number Stamped on the lower part of the drive motor housing. Always quote the Vehicle Identification Number(VIN) when communicating with an MG Authorised Repairer. If...
  • Page 19: Vehicle Identification Label

    FOREWORD Vehicle Identification Label Electric Drive Transmission Number Stamped on the upper part of the electric drive The Vehicle Identification Label contains the following transmission housing. information: • Type Approval Number • Vehicle Identification Number (VIN) • Gross Vehicle Weight •...
  • Page 20 FOREWORD Location of Vehicle Identification Label The Vehicle Identification Label is located at the lower side of right side B pillar.
  • Page 21: Instructions For Use Of Electric Vehicle

    Arbitrary sources, such as flammable objects, heat and water disposal may cause pollution, hazard and damage to the sources. environment. The high voltage battery pack MUST be recycled by an MG Authorised Repairer or a professional...
  • Page 22: Driving Range

    MG Authorised Repairer. • The actual driving range of the vehicle will reduce with the increase of vehicle age.
  • Page 23: Equalisation Charging

    FOREWORD Equalisation Charging • Try and use the vehicle between the recommended ambient temperatures. In order to assist in extending the service life of the high • Do not park or store the vehicle for long periods with voltage battery pack it is recommended that an equalisation a low state of charge, where possible charge the vehicle charge is carried out at regular intervals.
  • Page 24: Crash Outage Control

    FOREWORD Crash Outage Control High Voltage System • The high voltage system used on If a crash or serious impact occurs, a signal from the SDM your vehicle features AC and DC (Airbag Control Module) will disconnect the relays within voltages up to about 452.4V.
  • Page 25 FOREWORD The high voltage system component layout is shown below: 1 Electric Heater 2 High Voltage Harness 3 High Voltage Battery (ESS) 4 Power Distribution Unit (PDU) 5 Electric Drive Transmission 6 Combined Charging Unit (CCU) 7 Charging Port 8 HV Battery Heater 9 Manual Service Disconnect (MSD) 10 Electric A/C Compressor...
  • Page 26: Precautions In The Event Of An Accident

    • If your car is being recovered by an immediately. independent recovery agent, please • If the vehicle is involved in a collision contact an MG Authorised Repairer for and cannot be re-started, the negative guidance. cable of 12V battery and Manual • The...
  • Page 27 FOREWORD Please show the card to the rescue personnel when they arrive.
  • Page 29: Instruments And Controls

    Instruments and Controls 30 Instrument Pack 75 Driver Monitor System 35 Warning Lamps and Indicators 78 Storage Devices 49 Lights and Switches 82 Cup Holder 57 Wipers and Washers 59 Steering System 61 Horn 62 Power Socket 64 Wireless Charging System for Mobile Phones 66 Rearview Mirrors 70 Sunvisor...
  • Page 30: Instrument Pack

    INSTRUMENTS AND CONTROLS Instrument Pack 1 Warning Lamps and Indicators 2 Active Safety 3 Time 4 Speedometer 5 Message Centre 6 Energy Regeneration Mode 7 Power Meter 8 Electricity Meter and Range to Empty 9 Driving Mode 10 Power System Status 11 Gear Display Instrument Information Display Operation The message centre function can be selected with the...
  • Page 31 INSTRUMENTS AND CONTROLS The function adjustment button ( 1 as shown) is a dual-purpose button. Pressing this button will switch control between the Infotainment or Instrument pack. 1 Function Adjustment Button (OK Button) • Push the button up, down, left or right to switch the message centre display items.
  • Page 32: Message Centre

    INSTRUMENTS AND CONTROLS Message Centre • Warning Information: Displays the warning information or important notes that are currently relevant to the The message centre provides the followings: vehicle. Trip Computer The trip computer function contains the following: • From Start: Displays the range, duration, average speed and average energy consumption since startup.
  • Page 33: Warning Message

    • Brake System Fault Warning Message When the following warning information appears, please contact an MG Authorised Repairer for service as soon as The message centre of instrument pack displays the possible: warning messages in pop-up windows. The warning •...
  • Page 34 INSTRUMENTS AND CONTROLS • Vehicle Control System Fault, Take Vehicle to MG • Traction Control Fault Dealer • Autohold Fault • Vehicle Control System Fault, Please drive carefully! • Park Brake Force Too Low • Cruise Control System Failure • RADAR Calibration Failed •...
  • Page 35: Warning Lamps And Indicators

    Please read the following instructions in detail for the meaning of the relevant warning lights and indicators. In case of failure, please take corresponding measures in time and contact an MG Authorised Repairer as soon as possible. Name...
  • Page 36 As soon as conditions permit,safely stop the vehicle and switch the vehicle power system to the OFF position and contact Airbag Warning Lamp an MG Authorised Repairer immediately. An SRS or seat belt fault may mean the components may not be deployed in the event of an accident.
  • Page 37 Please check the tyre pressures. Tyre Pressure Monitoring System If this lamp flashes first and then remains illuminated after a period (TPMS) Warning Lamp of time,it indicates the system has detected a fault. Please contact an MG Authorised Repairer as soon as possible.
  • Page 38 Please stop the car as soon as safety permits. If the lamp still illuminates after restarting the vehicle and driving for a short while, please contact an MG Authorised Repairer immediately. Electric Power Steering...
  • Page 39 INSTRUMENTS AND CONTROLS Dynamic Stability The dynamic stability control/traction control system has been Control/Traction Control System OFF turned off. Warning Lamp Auto Hold System The auto hold system is operating to assist the driver. Indicator The auto hold system has detected a fault. The auto hold system function is activated and in standby state.
  • Page 40 The brake system has failed. Please stop the vehicle as soon as Malfunction Warning safety permits, and power down the vehicle. Lamp The ABS has detected a fault. Please contact an MG Authorised Repairer immediately. ABS Malfunction If an ABS failure occurs while driving, the ABS function will be Warning Lamp disabled while normal braking will still be available.
  • Page 41 INSTRUMENTS AND CONTROLS The adaptive cruise control system is turned on, but not in standby state. Adaptive Cruise Control The adaptive cruise control system is in standby state. System Indicator * The adaptive cruise control system is activated. The manual speed limit assistance system is in standby state. If this lamp illuminates, it indicates that the manual speed limit assistance system is activated.
  • Page 42 INSTRUMENTS AND CONTROLS Adaptive Cruise Control/Speed Limit The adaptive cruise control system or speed limit assistance Assistance System system has detected a fault. Malfunction Warning Lamp "NNN" is the speed limit marking speed currently identified. Speed Limit Marking When the vehicle speed exceeds the speed limit value, the lamp Speed Indicator * flashes.
  • Page 43 The traffic jam assist system is in standby state. Traffic Jam Assist System Indicator * The traffic jam assist system is activated. The traffic jam assist system has detected a fault. Please contact an MG Authorised Repairer as soon as possible.
  • Page 44 Forward Collision When all of the forward collision system functions are enabled, Assistance System if the indicator remains on,it indicates the system is not able to Indicator * function normally. Please contact an MG Authorised Repairer as soon as possible.
  • Page 45 This lamp will flash if the high voltage battery temperature is too high. Please stop the car as soon as safety permits, power off the vehicle, and leave the vehicle immediately. Contact an MG Authorised Repairer at the earliest opportunity.
  • Page 46 If this lamp illuminates yellow,it indicates that the vehicle has Malfunction Indicator detected a fault and power is limited. Please contact an MG Authorised Repairer as soon as possible. If this lamp illuminates red, it indicates that the vehicle has detected a severe fault.
  • Page 47 MG Authorised Repairer immediately. When this lamp illuminates , the electric drive transmission motor or power electric box has detected a fault. Please contact an MG Authorised Repairer as soon as possible. High Voltage Battery...
  • Page 48 Note: There are some circumstances where a warning light may illuminate or a warning message is displayed as an indication of an issue with the associated system,this does not necessarily indicate a fault. If in doubt,please seek advice from an MG Authorised Repairer.
  • Page 49: Lights And Switches

    INSTRUMENTS AND CONTROLS Lights and Switches Headlamps Master Light Switch AUTO Lighting OFF AUTO Lightings When the vehicle is powered on, the AUTO lighting system is turned on by default, which will automatically switch the side lamps/switch illumination on and off according to the intensity of current ambient light.
  • Page 50 INSTRUMENTS AND CONTROLS Welcome Light When the vehicle is powered off if thelighting switch is in position 2 and the driver’s door is opened an audible When the car is unlocked, the system will automatically warning will sound to alert the driver. illuminate the dipped beams and side lamps according to the intensity of the current ambient light.
  • Page 51: Headlamp Leveling Adjustment

    INSTRUMENTS AND CONTROLS Headlamp Leveling Adjustment Location Load Only driver in the car, or there is a front passenger in addition to the driver in the car. All the seats occupied with no load in the Load space. All the seats occupied plus an evenly distributed load in the Load space.
  • Page 52: Light Lever Switch

    INSTRUMENTS AND CONTROLS Light Lever Switch time, the main beam indicator in the instrument pack will illuminate. Push or pull the light lever switch once again to Take care not to dazzle oncoming vehicles switch to the dipped beam. when switching between the main and dipped beams.
  • Page 53 INSTRUMENTS AND CONTROLS vehicle forward camera and switch the main beam on or IMPORTANT off when certain conditions are met. When the automatic The Automatic High Beam may not operate normally high beam is enabled , the automatic high beam indicator in the following cases, but not limited to them, so the in the instrument pack illuminates.
  • Page 54 INSTRUMENTS AND CONTROLS 3 Rear fog lamps are not switched on. IMPORTANT If the following conditions are met, the vehicle will The Automatic High Beam function uses data from automatically exit the automatic high beam system. If the the front view camera, always keep the windscreen system is disabled, pushing the main beam ON switch clean and free from residue in this area to maintain twice quickly towards the instrument panel can enable the...
  • Page 55: Direction Indicators

    INSTRUMENTS AND CONTROLS Direction Indicators a lane change, move the lever briefly and release, the indicators will flash three times and then cancel. If the light lever switch is gently moved this will activate the "lane change function". The light lever switch will reset immediately and the direction indicators will flash 3 times.
  • Page 56: Rear Fog Lamps

    INSTRUMENTS AND CONTROLS Rear Fog Lamps Fog lights should only be used when visibilityis below 100m - other road users could be dazzled in clear conditions. When the vehicle is powered on and the dipped beam lights are active, press the rear fog lamp switch which is located at the top left of the Infotainment screen to switch on the rear fog lamps.
  • Page 57: Wipers And Washers

    INSTRUMENTS AND CONTROLS Wipers and Washers • 1x: Single Wipe Automatic Wipe Front Windscreen Wiper and Washer By pushing the lever switch up to the automatic wipe Operation position ( INT position as shown), the wipers will operate When the vehicle is powered on, operate the lever switch automatically.
  • Page 58: Front Windscreen Wash And Wipe

    INSTRUMENTS AND CONTROLS Single Wipe a short interval, the wipers will commence operating in conjunction with the washers. By pressing the lever switch down to the single wipe Note: The wipers continue operating for three wipes position ( 1x position as shown) and releasing it, the after the lever switch is released.
  • Page 59: Steering System

    INSTRUMENTS AND CONTROLS Steering System 1 Fully release the locking lever (as indicated by the arrow). Steering Wheel Position Adjustment 2 Hold the steering wheel in both hands and tilt it up or DO NOT attempt to adjust the position down to move the wheel into the most comfortable of the steering wheel while the car is in position.
  • Page 60: Steering Mode Switching

    INSTRUMENTS AND CONTROLS IMPORTANT Holding the steering wheel on full lock for long periods will result in a reduction in power assistance causing a heavier feel to the steering for a short period time. Steering Mode Switching The electric power steering system provides 3 different steering modes: 1 Normal: provides moderate power assistance.
  • Page 61: Horn

    INSTRUMENTS AND CONTROLS Horn IMPORTANT To avoid possible SRS issues, please do not press with excessive force or hit the airbag cover when operating the horn. Press the horn button area (as indicated by the arrow) on the steering wheel to operate the horn. Note: The vehicle horn button areas and the driver's airbag are located in close proximity on the steering wheel.
  • Page 62: Power Socket

    INSTRUMENTS AND CONTROLS Power Socket The front power socket is located in the front of the centre console. When the vehicle is powered on, it can be used Extended use of the accessory power socket as a power supply. and USB socket when the vehicle power system is switched off will cause premature There are 2 USB ports (1 &...
  • Page 63: Rear Usb Port

    INSTRUMENTS AND CONTROLS Rear USB Port There is a USB port at the rear centre console, which can provide a 5V power source as a power outlet. Note: The vehicle's USB ports may not support some fast charging devices.
  • Page 64: Wireless Charging System For Mobile Phones

    INSTRUMENTS AND CONTROLS Wireless Charging System for Mobile Wireless Charging of Mobile Phones Phones The wireless charging function for a mobile phone is realized without the necessity for a connection cable. It is achieved using electromagnetic induction. Note: The wireless charging function does not apply to all mobile phones, only brands/models with wireless charging function.
  • Page 65 If the mobile phone cannot be charged properly, please make sure that there is no foreign matter in the wireless charging area or wait for the wireless charging area to cool down before further attempt. If it still fails, seek a local MG Authorised Repairer.
  • Page 66: Rearview Mirrors

    INSTRUMENTS AND CONTROLS Rearview Mirrors Note: Objects viewed in door mirrors may appear further away than they actually are. The rearview mirrors in the vehicle consist of the front door mirrors fitted to each door and the interior mirror mounted in the front of the passenger compartment. Rearview mirrors reflect situations directly behind or below or on both sides of the vehicle thus expanding the driver's field of vision.
  • Page 67 INSTRUMENTS AND CONTROLS • Move the knob in the desired direction to adjust the Mirror Glass Heating angle of the exterior mirror glass. The door mirrors have integral heating elements which Manual Folding * disperse ice or mist from the glass. The heating elements operate while the Heated Rear For vehicles fitted with the manual door mirror folding Window is switched on, that is, only when the vehicle is...
  • Page 68: Interior Rearview Mirror

    INSTRUMENTS AND CONTROLS Interior Rearview Mirror 1 Operation Indicator 3 Light Sensor Adjust the body of the interior rearview mirror to achieve 2 Automatic Anti-dazzle Function Switch the best possible view. The anti-dazzle function of the interior rearview mirror helps reduce glare from the After the car is powered on, the automatic anti-dazzle headlamps of following vehicles at night.
  • Page 69 INSTRUMENTS AND CONTROLS Manual Anti-dazzle Interior Rearview Mirror * Move the lever at the base of the interior rearview mirror to change its angle, so as to achieve the anti-dazzle function. Normal visibility is restored by pulling the lever back again. Note: In some circumstances, the view reflected in a 'dipped' manual mirror can confuse the driver as to the precise location of following vehicles.
  • Page 70: Sunvisor

    INSTRUMENTS AND CONTROLS Sunvisor front seat is active, serious injury or even death to the child may be caused. The vanity mirror on the driver side should only be used when the car is stationary. Sunvisor ( 1 ) and vanity mirror ( 2 , optional for some models) are arranged on the roof ahead of both the driver and the front passenger.
  • Page 71: Windows

    INSTRUMENTS AND CONTROLS Windows Power Operated Window Switch Please correctly operate the windows to avoid danger. The driver shall instruct passengers on how to use windows and tell them safety precautions. Ensure children are kept clear when raising or lowering a window. DO NOT operate the power window controls continuously several times in a short time frame, otherwise the power...
  • Page 72: Window Operation

    INSTRUMENTS AND CONTROLS Window Operation can be stopped at desired position at any time by operating the corresponding switch during descent. The electric windows can be operated when the vehicle is powered on (Doors should be closed during operation). “One-Touch” Up with “Anti-Trap” Depending on vehicle specification, some windows may have the "One-Touch"...
  • Page 73 INSTRUMENTS AND CONTROLS Note: If the battery is disconnected, the “One-Touch” Up and “Anti-Trap” features will lost. To restore this feature, fully close the window and hold the switch for 5 seconds in the closed position, fully open the window and press the switch for another 5 seconds.
  • Page 74: Interior Light

    INSTRUMENTS AND CONTROLS Interior Light When the automatic operation is enabled, interior lights will illuminate automatically whenever the following occur. • The car is unlocked. • Any door is opened. • When the vehicle equipped with light sensor detects that the ambient light is dark or the side lamp illuminates or turns off for 30 s, it will be powered off.
  • Page 75: Driver Monitor System

    INSTRUMENTS AND CONTROLS Driver Monitor System the driver is already in a fatigued state,a warning will be issued. Indirect Driver Fatigue Reminder System When the vehicle speed is over 37 mph(60 km/h), the The driver should always ensure that his/her driver attention warning system will operate.
  • Page 76: Direct Driver Monitor System

    INSTRUMENTS AND CONTROLS Direct Driver Monitor System System Settings The indirect driver fatigue reminder system can be set on The camera of the driver monitor system is located in front the infotainment display. of the steering wheel. Note: The driver attention warning system will not Note: Do not block the camera area, or the system trigger in the following conditions even if it is enabled: cannot function normally.
  • Page 77 INSTRUMENTS AND CONTROLS The driver monitor system can be set on the infotainment display.
  • Page 78: Storage Devices

    INSTRUMENTS AND CONTROLS Storage Devices Glove Box Instructions for Use • Please close all storage devices when the car is in motion. Leaving these storage devices open may cause personal injury in cases of a sudden start-off, emergency braking and a car accident. •...
  • Page 79: Storage Box

    INSTRUMENTS AND CONTROLS Storage Box Centre Console Rear Storage Box Centre Console Front Storage Box The centre console rear storage box is located at the rear of the centre console. The centre console front storage box is located in front of the centre console armrest box.
  • Page 80: Glasses Box

    INSTRUMENTS AND CONTROLS Glasses Box Centre Console Armrest Box The glasses box should only be used when the vehicle is stationary. Lift the centre console armrest (as indicated by the arrow) to open the centre console armrest box. Put the centre console armrest down gently to close the centre console The glasses box is located in the proximity of the front armrest box.
  • Page 81 INSTRUMENTS AND CONTROLS Only glasses with standard frames should be placed in the glasses box.
  • Page 82: Cup Holder

    INSTRUMENTS AND CONTROLS Cup Holder DO NOT place hot drinks in the cup holder whilst driving. Spillage may result in personal injury or damage. Centre Console Cup Holder The centre console cup holder is located in front of the centre console armrest assembly, where a cup or beverage bottle can be placed.
  • Page 83: Air Conditioning And Audio Systems

    Air Conditioning and Audio Systems 84 Ventilation 87 A/C Control Panel 89 Air Conditioning Control Interface 93 Infotainment System...
  • Page 84: Ventilation

    AIR CONDITIONING AND AUDIO SYSTEMS Ventilation 1 Side Vents 2 Windscreen/Defrost Vents 3 Centre Vents 4 Front Footwell Vents 5 Front Side Window Vents...
  • Page 85: A/C Filter

    AIR CONDITIONING AND AUDIO SYSTEMS Vents The A/C system is used to adjust the temperature, speed, humidity and cleanliness of the air in the vehicle. Fresh air is Centre Vents Adjustment drawn in through the air intake grille under the windscreen and the A/C filter.
  • Page 86 AIR CONDITIONING AND AUDIO SYSTEMS Side Vents Adjustment Slide the button in the centre of the louvres completely to the left or right to open or close the vent. Toggle the button at the centre of each vent up and down, left and right to regulate the air direction.
  • Page 87: A/C Control Panel

    AIR CONDITIONING AND AUDIO SYSTEMS A/C Control Panel Defrost/Demist Button Control Panel Press Defrost/Demist Button on the control panel, the indicators on the button and display illuminate, the A/C cooling and external circulation functions are switched on, and the system enters the defrost/demist function to clear the windshield and side windows.
  • Page 88: Heated Rear Window Button

    AIR CONDITIONING AND AUDIO SYSTEMS Heated Rear Window Button The heating elements on the inside of the rear window are easily damaged. DO NOT scrape or scratch the inside of the glass. DO NOT stick labels over the heating elements. Press the Heated Rear Window Button to switch the function on or off.
  • Page 89: Air Conditioning Control Interface

    AIR CONDITIONING AND AUDIO SYSTEMS Air Conditioning Control Interface Air Conditioning Control Interface - Connected Car * 1 System On/Off 2 Cooling On/Off 3 Auto Mode 4 A/C Setting 5 Air Recirculation Mode 6 Economy Mode 7 Air Distribution Mode 8 Blower Speed Control 9 Temperature Control 10 Defrost/Demist, Heated Rear...
  • Page 90: System On/Off

    AIR CONDITIONING AND AUDIO SYSTEMS System On/Off Air Recirculation Mode Touch the System On/Off Button on the control interface Touch the air recirculation mode touch button as needed to switch the system on or off. to adjust the air recirculation mode. Cooling On/Off During internal recirculation mode, the A/C Touch the A/C Cooling On/Off Touch Button to turn the...
  • Page 91: Economy Mode

    AIR CONDITIONING AND AUDIO SYSTEMS Economy Mode Feet Mode Touch the ECO touch button, the air conditioning system will enter Economy Mode, and the ECO indicator in Windscreen and the button illuminates. In the Economy Mode, the air Face Mode conditioning system will run at low energy consumption, so as to prolong the driving range.
  • Page 92: Blower Speed Control

    AIR CONDITIONING AND AUDIO SYSTEMS Temperature Control Face Mode: Directs air to the side and centre vents. Feet Mode: Directs air to the footwell vents. Touch the temperature control touch button to regulate the temperature of the air supplied by the vents. Note: In this mode, a small amount of airflow will be directed to the side, windscreen/defrost and front side window vents.
  • Page 93: Infotainment System

    If it does not at a safe place, immediately switch off the power and resume, please contact a local MG Authorised Repairer contact a local MG Authorised Repairer for service. for service.
  • Page 94: Privacy And Data Sharing

    AIR CONDITIONING AND AUDIO SYSTEMS • When using a mobile phone, keep the antenna of the • Please take care to protect the screen against direct mobile phone away from the screen to prevent the sunlight. Extended exposure to direct sunlight will disruption of video signal in the form of spots, colored result in screen malfunction due to high temperature.
  • Page 95: Basic Operations

    AIR CONDITIONING AND AUDIO SYSTEMS Basic Operations Main System Interface Page one Control Panel (HOME) Button Short press to return to the main interface; long press to restart the system. 2 Volume Down Button 1 Weather 3 Volume Up Button Touch to enter the weather interface.
  • Page 96 AIR CONDITIONING AND AUDIO SYSTEMS 4 Radio/Music Page Two Touch to enter the Radio/Music interface. 5 Navigation Touch to enter the Navigation interface. Refer to Infotainment System Manual for details. 6 Status Bar Displays the signal strength and other information. Pull down to enter the shortcut control screen to set the screen brightness, car control, etc.
  • Page 97 9 Rescue Call Touch to enter the Rescue Call interface. Please refer to the Infotainment System Manual for details. 10 MG Touchpoint Touch to enter the MG Touchpoint interface. 11 User Manual Touch to enter the User Manual interface.
  • Page 98 AIR CONDITIONING AND AUDIO SYSTEMS Steering Wheel Control Buttons between the Instrument display and the Infotainment system. 3 Phone Button Short press to answer an incoming call, Long press to end the call. 4 Function Adjustment Button When in the infotainment mode: Push up: Volume up; Push down: Volume down;...
  • Page 99: Bluetooth Phone

    AIR CONDITIONING AND AUDIO SYSTEMS Bluetooth Phone Volume Adjustment • The audio volume can be adjusted using the control Instructions for Use panel , the buttons on the steering wheel and the • Connection to all mobile phones featuring Bluetooth shortcut control page.
  • Page 100 AIR CONDITIONING AND AUDIO SYSTEMS At this time, it is recommended to clear the paired Ending a call devices in the device list on the mobile phone and the Calls can be ended using the following methods: infotainment system, and conduct pairing again. •...
  • Page 101: Entertainment

    AIR CONDITIONING AND AUDIO SYSTEMS Entertainment • Touch to enter the Private Mode. Touch restore the Speaker Mode. Precautions for Playing from a Storage Medium • Touch to switch to the Microphone mute or Enable Mode function. • The system supports USB drives and Bluetooth storage •...
  • Page 102 USB storage device. Note: If any data loss or breach occurs whilst the USB storage device is inserted or being used, it will generally be unrecoverable. MG Motor accepts no responsibility for any data loss or breach. Note:...
  • Page 103 AIR CONDITIONING AND AUDIO SYSTEMS 5 Click to enter the program list. 5 Short press to automatically search for the next valid station, and long press for quick FM. 6 Next Station. 6 Station list. 7 Station list. 7 Click to enter the station preferences setting interface. 8 Click to enter the station preferences setting interface.
  • Page 104 AIR CONDITIONING AND AUDIO SYSTEMS Music 2 Open/Close Play List. Touch the Radio/Music area in the main interface or 3 Previous Track. icon to enter the Music interface. 4 Pause/Play. Touch [BT music] / [Online music] / [USB music] on 5 Next Track.
  • Page 105 AIR CONDITIONING AND AUDIO SYSTEMS USB Music 8 Random play mode. Insert a USB storage device into the USB port, and the 9 Sound Settings. system automatically loads the music from the storage device. 1 Track List. 2 Single play mode or list play mode. 3 Previous Track.
  • Page 106 AIR CONDITIONING AND AUDIO SYSTEMS Video 6 Play List. Insert the USB storage device to the USB port. Touch [Video] on the main interface to enter Video Playback interface. 1 Touch to switch to full screen playback mode. 2 Short press to switch to the previous video, and long press to fast rewind.
  • Page 107: Vehicle-Mobile Phone Interconnection

    AIR CONDITIONING AND AUDIO SYSTEMS Vehicle-Mobile Phone Interconnection 5 Press the HOME button on the control panel to return to the main system interface. Note: Due to the differences of mobile phone models and system versions, some mobile phones may not be Android Auto able to use the vehicle-mobile phone interconnection function normally.
  • Page 108: Mg Touchpoint

    Touch [Vehicle] or icon on the main interface to enter Bluetooth Pairing and Connection the Vehicle Setting interface. You can set the MG Pilot, The steps of Bluetooth pairing and connection are as Light, etc. follows: •...
  • Page 109 AIR CONDITIONING AND AUDIO SYSTEMS them in [Other Devices]. You can also search for this Note: your information security, recommended to choose a high security wireless device in your mobile phone for pairing. After pairing, network with security of WPA2. the status bar will display the Bluetooth icon .
  • Page 110 Note: For software version, map and voice upgrade to enter the traffic management interface, you can turn the related functions, please contact a local MG online network switch on or off and view the traffic usage. Authorised Repairer for more details.
  • Page 111: Seats And Restraints

    Seats and Restraints 112 Seat 118 Seat Belts 129 Airbag Supplementary Restraint System 140 Child Restraints...
  • Page 112: Seat

    SEATS AND RESTRAINTS Seat Seat Positions and Backrest Angle To avoid personal injuries due to the loss of vehicle control, DO NOT adjust the seats while the vehicle is in motion. An ideal position of the seat should make sure your driving position is comfortable, which allows you to hold the steering wheel with your arms and legs slightly bent and control all the equipment.
  • Page 113: Head Restraints

    SEATS AND RESTRAINTS Head Restraints Adjust the height of the head restraint so that the top of it is in line with the top of the occupant's head. This location may reduce the risk of neck injuries in the event of a collision.
  • Page 114: Front Seats

    SEATS AND RESTRAINTS Front Seats height, and gently press the head restraint downward to make sure that it is locked in position. Note: The front seat functions of the vehicles are not completely the same depending on the model configurations. Manual Adjustment (With the driver side as an example) •...
  • Page 115 SEATS AND RESTRAINTS Lift the handle 1 to slide the seat into an appropriate Electric Adjustment (With the driver side as position, and release the handle to make sure that the an example) seat is locked in position. • Cushion Height Adjustment Lift the handle 2 repeatedly to raise the seat cushion, and press the handle 2 repeatedly downward to lower the seat cushion.
  • Page 116: Rear Seats

    SEATS AND RESTRAINTS Rear Seats • Backrest Angle Adjustment Move the switch 1 forward/backward to adjust the backrest until it reaches the desired angle. • Forward/Rearward Adjustment Push the switch 2 along the direction of A to move the seat forward/rearward. •...
  • Page 117: Front Seat Heating Function

    Front Seat Heating Function contact a local MG Authorised Repairer. • Over use of the driver's heated seat may cause If bare skin is in contact with the heated drowsiness and could affect safety.
  • Page 118: Seat Belts

    SEATS AND RESTRAINTS Seat Belts refer to "Warning Lamps and Indicators" in "Instruments and Controls" section. Incorrectly worn seat belts could cause injury or death in the event of an accident. While driving, all occupants must fasten their seat belt. Seat belts are designed for one person, DO Because: NOT share seat belts.
  • Page 119: Protection Provided By Seat Belts

    SEATS AND RESTRAINTS Protection Provided by Seat Belts Note: It is of equal importance for passengers in the rear seats to fasten their seat belts correctly. Otherwise, passengers with seat belts not correctly fastened will be thrown forward in accidents, and will endanger themselves as well as the driver and other passengers.
  • Page 120: Wearing Seat Belts

    SEATS AND RESTRAINTS Wearing Seat Belts The seat belts fitted to your vehicle are designed for use by normal sized adults. This part of the literature refers to Incorrectly worn seat belts could cause adult use. For advice on seat belt use with children, please injury or death in the event of an accident.
  • Page 121 SEATS AND RESTRAINTS 5 To release the seat belt, press the red button on the buckle. The seat belt will retract automatically to its original place. Correct Routing of the Seat Belts Ensure the seat belt is correctly positioned on the body, NEVER cross the neck or abdomen, NEVER pass the seat belt behind the back or under the arms.
  • Page 122 SEATS AND RESTRAINTS When wearing seat belts, the lap belt section should be above the belly. Please consult your physician for further positioned as low as possible across your hips, NEVER details. across the abdomen. In the event of a collision, the lap belt can apply a force on the hips and reduce the possibility of you slipping under the lap belt.
  • Page 123: Children And Seat Belts

    SEATS AND RESTRAINTS Children and Seat Belts accident or collision the children are not secure, it could cause death or serious injury. Proper protection measures must be taken Infants MUST use a suitable child restraint device. Please for children during driving. consult the child seat manufacturer’s guidelines when For safety reasons, children must ride in a child restraint selecting the correct seat.
  • Page 124 SEATS AND RESTRAINTS If the shoulder belt is too close to the child's face or neck, it may be necessary to use a child booster cushion (always ensure that it meets any relevant laws or standards). As children grow and become older/larger, it will get to the stage when they no longer require child seat restraints.
  • Page 125: Seat Belt Pre-Tensioners

    The vehicle is fitted with seat belt pre-tensioners. These replaced by an MG Authorised Repairer. are designed to retract the seat belts and work in conjunction with the airbags in the event of a severe collision.
  • Page 126: Seat Belt Checks, Maintenance And Replacement

    If the seat belt fails any of the above tests or inspections, Always ensure the red release button on the please contact an MG Authorised Repairer. seat belt buckle is pointing upwards ensure easy release in the event of an emergency.
  • Page 127 Please use a clean DO NOT attempt to remove, install, and dry cloth to remove any contaminants. modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by your MG Authorised Repairer. Inappropriate handling lead incorrect operation.
  • Page 128 After an accident, seat belts should be checked and replaced as needed immediately. Seat belts should not require change after minor collisions, however, some other parts of the seat belt system may require attention. Please consult an MG Authorised Repairer for advice.
  • Page 129: Airbag Supplementary Restraint System

    SEATS AND RESTRAINTS Airbag Supplementary Restraint • Seat Side Airbags (fitted to the outer side of the seat System backrest cushion) • Side Head Impact Protection Airbags (fitted behind the Overview headlining) The airbag SRS provides ADDITIONAL protection in a severe frontal impact only. It does not replace the need, or requirement to wear a seat belt.
  • Page 130 SRS fault or seat belt pre-tensioner fault has been detected. In this case, please contact an MG Authorised Repairer for service immediately. Otherwise there may be the risk that the SRS or the seat belt pre-tensioner cannot work properly in the event of a collision.
  • Page 131: Airbag Deployment

    SEATS AND RESTRAINTS Airbag Deployment An inflating airbag can cause facial abrasions and other injuries if the occupant Front seat passengers should not place is too close to the airbag at the time of its feet, knees or any other part of the body deployment.
  • Page 132 SEATS AND RESTRAINTS DO NOT knock or strike the position where Provided the front seat occupants are correctly seated and with seat belts properly worn, the airbags will provide the related parts of the airbags are located, so as to avoid accidental airbag deployment additional protection to the chest and facial areas in the event of the car receiving a severe frontal impact.
  • Page 133 SEATS AND RESTRAINTS Frontal Airbags IMPORTANT NEVER use a rearward facing child restraint • Airbags cannot protect lower body parts of on a seat protected by an ACTIVE AIRBAG passengers. in front of it, DEATH or SERIOUS INJURY • Airbags are not designed for rear collision, minor to the CHILD can occur.
  • Page 134 SEATS AND RESTRAINTS Seat Side Airbags and Side Head Impact • Conditions that can cause serious chassis damage, such as a collision with kerbstones, road edges, deep ravines Protection Airbags or holes. The structure and material of the seat is critical to the correct operation of side airbags.
  • Page 135: Conditions In Which Airbags Will Not Deploy

    SEATS AND RESTRAINTS Conditions in Which Airbags Will Not • The impact point is not central to the front of the Deploy vehicle. • The impact is with a solid utility pole or traffic sign post. The deployment of airbags does not depend on the vehicle •...
  • Page 136 SEATS AND RESTRAINTS Seat Side Airbags and Side Head Impact This switch can be used to deactivate the front passenger side airbag only when a Protection Airbags rearward-facing child restraint is installed Under conditions described below or similar ones, side on the front passenger side seat.
  • Page 137 SEATS AND RESTRAINTS IMPORTANT • If the OFF and ON indicator lights illuminate together, or the light is inconsistent with the passenger airbag switch position, Please contact an MG Authorised Repairer immediately.
  • Page 138: Service And Replacement Of Airbags

    This may affect the normal operation of the if there is any damage to the front or side of the vehicle, SRS. or the airbag covers show signs of damage, contact an MG DO NOT allow these areas to be flooded Authorised Repairer immediately.
  • Page 139: Disposal Of Airbags

    SEATS AND RESTRAINTS Replacement of SRS Components certain environment by a professional agency or an MG Authorised Repairer. Even if the airbag does not deploy, collisions may cause damage to SRS in the vehicle. Airbags may not function properly after...
  • Page 140: Child Restraints

    SEATS AND RESTRAINTS Child Restraints serious injury to the child in an event of a sudden stop or accident. Important Safety Instructions about Using The correct use of child restraints will greatly reduce Child Restraints children's injury risk in accidents or relieve their injury It is recommended that children below the age of 12 years severity.
  • Page 141 SEATS AND RESTRAINTS • If installing a rear facing child restraint to the rear seat, the corresponding front seat should be adjusted forward; if installing a forward facing child restraint to the rear seat, you may need to adjust the height of the headrest to the lowest.
  • Page 142 SEATS AND RESTRAINTS Warnings and Instructions on Use of Child In cases where there is a need to install a rear facing child restraint on the front Restraint on Front Passenger Seat passenger seat, use the key to deactivate the front passenger airbag function, or severe injury or even death can occur.
  • Page 143 SEATS AND RESTRAINTS Important Instructions on Children's Safety position is correct, there is enough space between the child and the side airbag deployment region for the airbag and Side Airbags to deploy without any hindrance, and thus provide the Children should not be allowed in areas best protection.
  • Page 144: Fixing Child Restraints

    SEATS AND RESTRAINTS Fixing Child Restraints It is recommended that children should always be seated in the rear of the vehicle in a child restraint or restraint Secured Using 3 Point Lap and Shoulder Belts systemand fixed with 3 point, lap diagonal seat belts. Please DO NOT put the rearward facing ISOFIX Child Restraint Systems child restraint on the front passenger seat...
  • Page 145 SEATS AND RESTRAINTS • Remove the fabric cover to reveal ISOFIX mounting • To fasten the top tether strap of the child restraint brackets. system, route the tether strap under the head restraint and attach to the anchorage hook, being careful not to •...
  • Page 146 SEATS AND RESTRAINTS • After installation apply suitable force to the child restraint to ensure the restraint is securely fastened.
  • Page 147: Approved Child Restraint Positions

    SEATS AND RESTRAINTS Approved Child Restraint Positions It is recommended that a child restraint system that complies with UN ECE-R44 or ECE-R129 standard are fitted in this vehicle. Check markings on the child restraint system. Approved Child Restraint Positions (for non ISOFIX Child Restraints) Seating Positions Front Passenger Front Passenger...
  • Page 148 SEATS AND RESTRAINTS Please remove the head restraint or adjust the head restraint to the highest position if the head restraint affects the installation of child restraint, ensure all removed head restraints are stowed safely. Please put the front passenger seat at fully rearward position. Approved Child Restraint Positions (for ISOFIX Child Restraints) Children Mass Group III group...
  • Page 149 SEATS AND RESTRAINTS Children Mass Group III group I group II group group group Securing Position Rearward Forward Rearward Forward Forward facing facing facing facing facing Up to 13 kg 9~18 kg 15~25 kg 22~36 kg Size Class Second-row No ISOFIX equipped Child Restraint Centre Type...
  • Page 150 SEATS AND RESTRAINTS I-Size Child Restraint Table Note: This table gives recommendations on the mounting Britax Baby Safe is recommended for a 1.5 years old position of the I-Size child restraints and the suitability for child and Duo Plus is recommended for a 3 years old the corresponding child size.
  • Page 151 SEATS AND RESTRAINTS 0/0+ group child restraints Group I Child Restraint Never place a rearward facing child Never place a rearward facing child restraint on the front passenger seat with restraint on the front passenger seat with the front passenger airbag activated. the front passenger airbag activated.
  • Page 152 SEATS AND RESTRAINTS Group II Child Restraint Group III Child Restraint The diagonal section of the seat belt The diagonal section of the seat belt should should pass across the shoulder and upper pass across the shoulder and upper body, body,away from the neck.
  • Page 153: Starting & Driving

    Starting & Driving 154 Keys 238 Tyre Pressure Monitoring System (TPMS) 158 Child Proof Locks 240 Load Carrying 159 Starting and Stopping the Power System 243 Alarm System 161 Economical and Environmental Driving 164 Charging and Discharging Requirements 182 Pedestrian Alert System 183 Electric Drive Transmission 189 Brake System 199 Adaptive Cruise Control System...
  • Page 154: Keys

    STARTING & DRIVING Keys The smart keys provided to you have been programmed to the security system on your vehicle, any key that is not Overview programmed to the car will not operate the keyless entry function or the vehicle immobiliser. Please keep the spare key in a safe place - The smart key only works within a certain range.
  • Page 155: Replacing The Smart Key Battery

    Please replace the smart key battery if any of the following obtained from an MG Authorised Repairer. The lost/stolen conditions occur: key can be deactivated. If the lost key is found, an MG • The locking/unlocking function range of the smart key Authorised Repairer can reactivate it.
  • Page 156 STARTING & DRIVING Note: Make sure that the polarity of battery is correct ('+' side facing down). Note: It is recommended to use a CR2032 battery. 4 Remove the old battery from the slot. 5 Put the new battery in the slot, and make sure it is in full contact with the slot.
  • Page 157 STARTING & DRIVING IMPORTANT • Use of an incorrect or inappropriate battery may damage the smart key. The new replacement's rated voltage, sizes and specifications must be the same as the old one. • Incorrect fitting of the battery may damage the key. •...
  • Page 158: Child Proof Locks

    STARTING & DRIVING Child Proof Locks • Move the lever to the unlock position in the reverse direction of the arrow to disable the child proof lock. NEVER leave children unsupervised in the With the child proof lock locked, the rear door on the car.
  • Page 159: Starting And Stopping The Power System

    STARTING & DRIVING Starting and Stopping the Power condition is low, please use the following steps to attempt System to start the car: Starting the Power System Starting Procedure When you open the driver door and sit on the driver seat, the instrument panel and touch screen will be powered on.
  • Page 160: Switching The Power System Off

    STARTING & DRIVING the smart key battery replaced please consult an MG 3 After leaving the driver seat with the key, press the Authorised Repairer. lock button on the remote key (Refer to "Keys" in this section) to power off.
  • Page 161: Economical And Environmental Driving

    STARTING & DRIVING Economical and Environmental Driving Economic Driving The way in which you drive your car has a significant Running-in bearing on the life span of the car and battery. The brakes and tyres need time to 'bed-in' and adjust to Drive Smoothly the demands of everyday motoring.
  • Page 162: Driving In Special Environment

    STARTING & DRIVING Driving in Special Environment Use of Electrical Equipment Use of electrical equipment will reduce the power available Driving in Rain or Snow from the battery. Whilst it is essential to maintain a Emergency braking, accelerating comfortable interior environment, excessive use of system steering on slippery roads will reduce the such as A/C will increase power consumption and reduce vehicle's handling performance and grip.
  • Page 163: Check And Service

    STARTING & DRIVING Check and Service Check Tyre Pressures Regularly Under-inflated tyres increase the rolling resistance of the car which, in turn, increases power consumption. Over or under-inflated tyres wear out more rapidly and also have a detrimental effect on the car’s handling characteristics. Do not Carry Unnecessary Loads The additional weight of unnecessary loads wastes power, especially in stop/start conditions where the car is...
  • Page 164: Charging And Discharging Requirements

    STARTING & DRIVING Charging and Discharging After charging completion, switch off the Requirements charger (where necessary), disconnect the cable from the vehicle, fit the waterproof Under normal circumstances it is strongly blanking plugs, close the charging point recommended that you use a slow charging door.
  • Page 165 STARTING & DRIVING Always hold the charging connector handle DO NOT attempt to charge when the or plug when connecting or removing the charging connector and plug are wet. charging cable, if you pull the cable itself (without using the handle), the internal Always keep the charging connector wires may disconnect or get damaged.
  • Page 166: Charging Your Vehicle At Home

    Whilst your MG has been supplied with an emergency home charging kit, it is essential that you check with a NEVER allow water or fluids to enter or contaminate your qualified electrician that the infrastructure of your property charger or vehicle charging sockets.
  • Page 167: Charging And Medical Condition Awareness

    STARTING & DRIVING Charging and Medical Condition Awareness Charging Port High voltage charging equipment can The charging port is located behind the charging port door create areas of strong electromagnetic located rear left of the vehicle. It is incorporated into the interference, this may cause operational master locking system.
  • Page 168 STARTING & DRIVING ALWAYS ensure that any excess water is removed from the port area before connecting any charging device. Charging Port Electronic Lock In order to prevent the charging connector and cable being disconnected inadvertently during charging, the charging socket features an electronic locking mechanism.
  • Page 169: Electric Charging Identifier Label

    Identifier Label on Slow Charging Kit Pull the release cable handle, remove the connector plug whilst maintaining tension on the cable this will release the 1 AC charging identifier label locking device. Note: Users can purchase a slow charging kit from an MG Authorised Repairer.
  • Page 170 STARTING & DRIVING Identifier Labels on Charging Port Precautions for AC or DC charging After opening the charging port door, check the charging identifier symbol on the plug cover. Check the charging connector identifier symbol on the AC or DC charger cable.
  • Page 171 STARTING & DRIVING Electric charging identifier label symbol table Supply Type Configuration Type of Accessory Voltage range Identifier Vehicle connector ≤480V and vehicle inlet Vehicle connector 7P+2P 50V–500V and vehicle inlet...
  • Page 172: Rapid Charging

    STARTING & DRIVING Rapid Charging Note: Considering the safety and service life of the high voltage battery, when using a rapid charging Note: Please read any equipment operating station to charge the vehicle the battery will not instructions carefully prior to using the rapid charging become fully charged, and therefore the instrument station.
  • Page 173: Slow Charging

    STARTING & DRIVING Slow Charging AC Charging Points Note: Carrying out a full slow charge is the only way IMPORTANT for the high voltage battery to reach the optimal equilibrium state (equalisation charge). Please ensure that only charge points that meet IEC 61851 and IEC 62196 are used to connect to your High voltage battery chargers are available with various vehicle.
  • Page 174 STARTING & DRIVING Note: If at any time during the charging process you 6 Ensure the charge socket is free from debris. Close should want to check the state of charge, please the charging point door. power on the vehicle. The high voltage battery state Note: If at any time during the charging process you of charge will be displayed in the message centre in should want to check the state of charge, please...
  • Page 175: Charging Information

    STARTING & DRIVING Charging Information At the beginning of the charging process, the following information will be displayed within the instrument pack message centre. 1 High voltage battery pack status 2 Current time 3 Driving range 4 Remaining charging time 5 Charging status Note: The information displayed on the instrument pack may be different based on vehicle configuration.
  • Page 176: Equalisation Charging

    STARTING & DRIVING Equalisation Charging Charging Times Equalisation charging means that after a normal charging Charging times of the high voltage battery can vary process the battery management system will enter a mode depending upon numerous factors, these include: current where it will attempt to equalise the charge of every capacity, charging mode, ambient temperature and device battery cell.
  • Page 177 STARTING & DRIVING On average it takes approximately 7 hours (single phase power) to charge the high voltage battery from low battery warning to 100% for battery pack type 2 (charge quantity can be checked using the instrument pack). • At low temperatures the charging time will be extended. •...
  • Page 178 STARTING & DRIVING Indicative Charging Times for Battery Pack Type 1 Rapid charging From alarm status to 80%, it takes almost 45 minutes. For first use after From alarm status parked or stored From alarm status to Residential to 100% and status to 100% and 100%, it takes almost electricity...
  • Page 179 STARTING & DRIVING Indicative Charging Times for Battery Pack Type 2 Rapid charging From alarm status to 80%, it takes almost 43 minutes. For first use after From alarm status parked or stored From alarm status to Residential to 100% and status to 100% and 100%, it takes almost electricity...
  • Page 180: Discharging

    Note: Users have the opportunity to purchase the can be removed. discharge kit from an MG Authorised Repairer. 5 Make sure there is no debris or foreign matter in the To use the discharge function, follow the instructions...
  • Page 181 STARTING & DRIVING IMPORTANT • Before beginning the discharge operation, check the condition of the discharge connector and gun. • If it is necessary to use the discharge function on wet days, please pay particular attention in protecting the discharge port area and discharge gun from water, rain or snow.
  • Page 182: Pedestrian Alert System

    STARTING & DRIVING Pedestrian Alert System In order to improve the safety, your car is fitted with a Pedestrian Alert System. When the vehicle is travelling at a low speed, the system controls a speaker that sounds to remind pedestrians in the vicinity of your presence. Strategies of sounding warnings The speaker sounds when all of the following conditions are met:...
  • Page 183: Electric Drive Transmission

    STARTING & DRIVING Electric Drive Transmission Gear Shift Control Instructions for Use The following information is very important, please read carefully before use: • The electric drive transmission consists of a high voltage unit. DO NOT touch any drive components unless you have the correct training and qualifications.
  • Page 184 STARTING & DRIVING • P Park In Reverse, turn the shift control knob clockwise to the first non-steady state position and release. The vehicle In this position, the transmission is mechanically locked, will enter Neutral. and the EPB is applied. Please use this gear when the vehicle is stationary.
  • Page 185: Driving Mode

    STARTING & DRIVING Driving Mode Normal Mode The driver can select 5 driving modes through the The vehicle is balanced for daily driving. infotaiment display: SNOW , ECO , NORMAL , SPORT Sport Mode and CUSTOM . Sport Mode concentrates on providing more power to Selecting different driving modes will automatically change enhance the performance.
  • Page 186: Energy Regeneration

    STARTING & DRIVING Energy Regeneration " Weak " Mode Deceleration caused energy In "Weak" mode, minimum energy is regenerated, the regeneration is NOT a substitute for vehicle exhibits longer coasting distances and no significant braking safely. The driver must ALWAYS be sensation of over-run drag or motor braking.
  • Page 187: Energy Saving Mode

    STARTING & DRIVING Energy Saving Mode Protection Mode When parking the vehicle, please ensure the When the high voltage battery is low on power, a message vehicle is parked safely and that all traffic will appear on the infotainment display, prompting the by-laws are observed.
  • Page 188 For severe functional malfunction, the warning indicator will illuminate in red. Please park the vehicle safely and contact an MG Authorised Repairer for service as soon as possible.
  • Page 189: Brake System

    • If the braking efficiency decreases due to vehicle failure, convert the vehicle's kinetic energy into electrical energy, please contact an MG Authorised Repairer for service which is stored in the high voltage battery when the vehicle as soon as possible.
  • Page 190: Parking Brake System - Electronic Parking Brake ( Epb )

    STARTING & DRIVING Parking Brake System - Electronic Parking consists of Electronic Brake Force Distribution System ( Brake ( EPB ) EBD ) and Electronic Brake Assistance System ( EBA ). EBD system can automatically distribute the braking force When the EPB system cannot be turned between the front and rear wheels, so that the vehicle off due to malfunction, do not move the can have good braking performance under different load...
  • Page 191 STARTING & DRIVING • Manual operation: Pull up the EPB switch to turn on the IMPORTANT EPB system after the vehicle is parked safely. When the • DO NOT leave the vehicle before the indicator lamp vehicle is powered on, press the brake pedal and press in the EPB switch illuminates and the gear indicator the EPB switch to turn off the EPB system.
  • Page 192: Service Brake System

    STARTING & DRIVING Service Brake System Start Assist If the driver's seat belt is fastened, and the accelerator pedal Anti-lock Brake System ( ABS ) is pressed for start off, the EPB system will be automatically The effect of ABS to accelerate the vehicle turned off.
  • Page 193 STARTING & DRIVING This system enables the driver to maintain control over the Stability Control System ( SCS ) and Traction steering in case of emergency braking, keeps the vehicle Control System ( TCS ) stable, and improves the safety factor. SCS is designed to assist the driver in control of driving Under normal braking conditions, ABS will not be direction.
  • Page 194 STARTING & DRIVING Auto Hold Note: Disabling SCS and TCS will not affect the operation of ABS . Always disable SCS and TCS when The auto hold function cannot guarantee driving with snow chains fitted. the stability of the vehicle when starting off or braking on hills especially on slippery or icy surfaces.
  • Page 195 STARTING & DRIVING the Auto Hold switch on the Infotainment display to Auto hold cannot guarantee the electronic parking brake operation in all cases where switch the Auto Hold function from Off to Standby the power system is turned off. Please state.
  • Page 196 STARTING & DRIVING Hill Hold Control ( HHC ) The Auto Hold will exit the parking state under some circumstances such as releasing the seat belt, turning off HHC has limitations when subject to the power system, remaining static for a length of time or adverse conditions such as wet or icy operating the Auto Hold switch.
  • Page 197 STARTING & DRIVING • EPB is fault free and released. Active Rollover Protection ( ARP ) • Power system is in READY mode. The ARP system is a driver aid to assist the stability of the • D or R gear is selected. vehicle under extreme conditions.
  • Page 198 STARTING & DRIVING When the emergency braking manoeuvre is exited, the • SCS is fault free. HAZ function will be switched off after a few seconds. If the driver firmly presses the accelerator pedal after a collision, the system will not be triggered. Note: As the vehicle speed drops to below 6 mph ( 10 km/h) and the brake lamps no longer flash, the hazard If the driver firmly presses the accelerator pedal after the...
  • Page 199: Adaptive Cruise Control System

    STARTING & DRIVING Adaptive Cruise Control System accelerate or gently apply the brakes of the car to maintain the set following distance. The adaptive cruise control system is Note: The adaptive cruise control system is designed designed as a comfort system enabling the for highways and roads in good condition.
  • Page 200 STARTING & DRIVING DO NOT exit the vehicle when the adaptive cruise control system car following cruise function has stopped the car, or is keeping the car stationary. Before exiting the car the shift control knob should be in the Park position and the power system is OFF.
  • Page 201: Adaptive Cruise Target Following Distance Adjustment

    STARTING & DRIVING 2 When the switch on the infotainment display is ON, Note: Manual deactivation of either the Traction Control System ( TCS ) or Stability Control System ( and the pilot switch ( 2 ) is pressed briefly, the adaptive SCS ) will inhibit the operation of the adaptive cruise cruise control system indicator on the instrument will control system.
  • Page 202: Adaptive Cruise Pause/Standby

    STARTING & DRIVING • Use the accelerator pedal to reach the desired speed, Note: If the vehicle ahead continuously makes hard acceleration or deceleration, the ACC system may not press the adjustment switch ( 1 ), and then release the be able to keep the following distance accurately, the adjustment switch and accelerator pedal, so that the driver must pay attention and perform the operations...
  • Page 203: Adaptive Cruise Override

    STARTING & DRIVING • Press and hold the accelerator pedal beyond a preset adaptive cruise control system will resume to operate at time period. previously set cruise speed. • Open any door, bonnet or tailgate. Adaptive Cruise Resume • Pull the EPB switch up to apply the parking brake. •...
  • Page 204: Special Driving Environments

    STARTING & DRIVING Special Driving Environments • Approaching the vehicle ahead too fast, and the system cannot apply sufficient braking force. The adaptive cruise control system has it's limitations. • The vehicle ahead is an oncoming vehicle, or makes an Listed below are some conditions that may be beyond the emergency braking manoeuvre.
  • Page 205 STARTING & DRIVING 2 If the vehicle ahead changes lanes, but does not drive into the lane completely, the adaptive cruise control system may be unable to detect the vehicle. If the vehicle ahead changes lanes, but does not exit the lane completely, the adaptive cruise control system may determine that the vehicle ahead has exited the lane and accelerate to any preset speed.
  • Page 206 STARTING & DRIVING 4 When driving behind a vehicle that is only partially overlapping your vehicle, ‘ A ' in the graphic, the adaptive cruise control system may be unable to Note: Please DO NOT use the adaptive cruise control detect anything.
  • Page 207: Driving Assist System

    If calibration is cover, the front detection radar is located at the lower required, please seek an MG Authorised Repairer. middle of the front bumper. Obstruction of the front view camera Note: DO NOT operate any infotainment switches whilst driving.
  • Page 208: Description Of Front Detection Radar

    (rain), frost or water spray from professional knowledge and tools. If calibration is the road on the windscreen. required, please seek an MG Authorised Repairer. • The windscreen in view is damaged. • Not calibrated after removing/refitting the front view camera or the windscreen.
  • Page 209 STARTING & DRIVING Front radar performance will be effected in the Note: Avoid any collision or contact with the front radar module, this may cause misalignment. following situations: • When the front detection radar is covered by mud, snow, excessive water (rain) or water spray from the road.
  • Page 210: Speed Sign Recognition

    STARTING & DRIVING Speed Sign Recognition speed exceeds the speed in the speed limit sign speed indicator, the speed limit sign speed indicator will flash, The intelligent speed assist system is an and the driver is reminded to reduce the vehicle speed auxiliary function.
  • Page 211 STARTING & DRIVING Note: When the vehicle needs to change lane, make a camera can only recognise the speed limit signs for the turn or turn around at an intersection and the driver lane in which the vehicle is being driven. uses an indicator in advance and slows down, the 6 Non standard speed limit signs or signs that contain original speed limit value on the instrument pack will...
  • Page 212: Speed Limit Assistance System

    STARTING & DRIVING Speed Limit Assistance System IMPORTANT Speed limit assistance system is only an • In poor lighting conditions or poor weather, or in auxiliary function. Due to that the speed case the speed limit signs are irregular or being limit sign is not standardized or the front sheltered, the camera may not identify all speed limit view camera is blocked, the wrong speed...
  • Page 213 STARTING & DRIVING 1 Intelligent: Intelligent speed limit. The vehicle detects the speed limit sign (such as ) at the roadside When the manual speed limit is enabled, with the front view camera, and intervenes the speed it enters the standby state, and the speed limit control to keep the vehicle speed in the permitted assistance system indicator on the instrument pack maximum speed limit.
  • Page 214 STARTING & DRIVING 2 After the manual speed limit is activated, the system will actively limit the vehicle to not exceed the target speed limit; when the actual vehicle speed exceeds the target speed limit set by the driver, the system will gradually reduce the vehicle speed below the target speed limit.
  • Page 215 STARTING & DRIVING value, the speed limit value in the speed limit sign speed mode) or the speed limit sign on the instrument pack indicator will not be updated. flashes (at intelligent speed limit mode); Note: After the car identifies a speed limit sign, if no 2 Briefly pressing the Pilot switch ( 2 as shown above) new signs (same or different) are identified beyond a can temporarily exit the speed limit assistance system...
  • Page 216 STARTING & DRIVING Intelligent speed limit may not work properly 9 The vehicle is driven in non-sales area or the units selected on the infotainment display does not match in the following situations: with the current country. 1 The detection performance of the front view camera is affected.
  • Page 217: Lane Assist System

    STARTING & DRIVING Lane Assist System Alert The lane assist system is an auxiliary system The system uses the front view camera to detect the lane that provides assistance to the driver. It lines ahead of the vehicle. The system will be activated does NOT remove the responsibility of safe when the following detection conditions are met: driving from the driver.
  • Page 218 STARTING & DRIVING • Lane line markings are clear and the system recognises When a wheel is about to cross the lane line or kerb, at least one lane line. or has already crossed the line or kerb, or the vehicle in the adjacent lane is nearing the vehicle and the vehicle When a wheel is about to cross the lane line, or has is leaning to the middle lane line simultaneously, the...
  • Page 219 STARTING & DRIVING • During system intervention the steering wheel is IMPORTANT operated (in the mode of lane departure assist and • In cases where the number of lanes increase or lanes emergency lane keeping). merge, the driver MUST take full control of the •...
  • Page 220: Traffic Jam Assist System

    STARTING & DRIVING Traffic Jam Assist System • Driving on rough or poor road surfaces. • Driving through roadworks or construction sites. Traffic jam assist system is an auxiliary system that provides assistance the driver. It does NOT remove the responsibility of safe driving from the driver.
  • Page 221 STARTING & DRIVING • The system detects lane lines on both sides of the vehicle. • The vehicle is in Drive gear. Short press the pilot switch to activate the traffic jam assist system. The traffic jam assist system works on the basis of the adaptive cruise control system.
  • Page 222 STARTING & DRIVING Note: The driver should adjust the vehicle speed and • The system detects that the driver has not moved the the following distance according to the road visibility, steering wheel for a preset time period. weather and road conditions. The traffic jam assist •...
  • Page 223: Forward Collision System

    STARTING & DRIVING Forward Collision System • Driving in bad weather conditions. • Driving on rough or poor road surfaces. The driver remains responsible for the • Driving through roadworks or construction sites. safety of the entire driving process, even if the vehicle is equipped with a forward •...
  • Page 224 STARTING & DRIVING Emergency braking Ensure the forward collision system or vehicle power system is switched off when When the system detects that there is a risk of collision being towed. If the forward collision system between the vehicle and the vehicle directly in front of the is enabled when the vehicle is being towed, vehicle, the brake system will automatically intervene to adverse effects may affect the safety of...
  • Page 225 STARTING & DRIVING Note: In some cases, the driver may not have • The vehicle ahead is a large vehicle at close range (such anticipated any braking intervention and does as tractor, trailer, towing vehicle, mud truck, sanitation not want to apply the brakes whilst the forward truck, sprinkler truck etc.).
  • Page 226 STARTING & DRIVING • Objects such as special-shaped ground obstacles (e.g. roadblocks, isolation piles, isolation strips, large stones, other scattered objects etc.) are detected in front of the vehicle. • Objects such as signs, guardrails, bridges, buildings or other are detected in front of the vehicle. •...
  • Page 227: Parking Aid

    In this case seek assistance from water jets directly at the ultrasonic sensors your MG Authorised Repairer. from close range. Rear Parking Aid The ultrasonic sensors on the rear bumper monitor the...
  • Page 228 STARTING & DRIVING Rear Parking Aid • Once the obstacle is within a 30 cm range of the rear bumper, the alarm sound will merge into a continuous With the parking aid function enabled, if an obstacle is warning. detected, the audible sounds in different frequencies are transmitted (there might be blind zones).
  • Page 229: 360 Around View System

    STARTING & DRIVING 360 Around View System The 360 around view system can be enabled using the following methods: The purpose of the 360 around view system • Selecting Reverse gear. is to assist the driver during parking, The • Operating the 360 button. cameras have a limited field of view and cannot detect obstructions outside the field •...
  • Page 230: Rear Driving Assistance System

    STARTING & DRIVING Rear Driving Assistance System * The rear driving assistance system will not operate correctly whilst towing a trailer or System Overview caravan. The rear driving assistance function is The correct operation of the radar sensors only an aid, it is NOT a substitute for will be compromised if they are misaligned the attention of the driver.
  • Page 231: Switching The System Functions On/Off

    STARTING & DRIVING Switching the System Functions On/Off Blind Zone Safety Assist The rear driver assist system function and sub system Blind Spot Detection switches can be accessed via the infotainment screen. Blind Zone Safety Assist consists of two active safety assist Select ON/OFF to activate/deactivate the system.
  • Page 232 STARTING & DRIVING Alarm Mode When the system detects that there is a vehicle in the blind zone of the exterior rearview mirror or a vehicle approaching behind in the adjacent lane while the vehicle speed exceeds 10 mph (15 km/h), the warning lamp on the corresponding side will illuminate.
  • Page 233: Rear Cross Traffic Assist

    STARTING & DRIVING Rear Cross Traffic Assist lamp will flash to remind the driver that it is dangerous to continue changing lanes. Rear Cross Traffic Functions Note: The warning lamps will not be illuminated Rear Traffic Assist includes the Rear Cross Traffic Alert ( when the vehicle speed is significantly faster than the overtaking of the motor vehicle in the blind zone.
  • Page 234 STARTING & DRIVING Alarm Mode If there is a risk while reversing, the warning lamp on the corresponding side will illuminate, and a warning triangle is displayed on the infotainment display. If the driver does not take safety measures, the system will perform emergency braking.
  • Page 235: Rear Collision Warning

    STARTING & DRIVING Rear Collision Warning Alarm Mode When there is a risk of collision, the instrument pack Rear Collision Warning Functions interface will give prompt warning message along with an When there is another vehicle or object in the same lane, alarm sound.
  • Page 236: Door Opening Warning

    STARTING & DRIVING Door Opening Warning Door Opening Warning Functions Whilst the vehicle is stationary, the door opening warning system monitors the surrounding area for approaching vehicles, motorcycles and bicycles. If the approaching object meets the conditions programmed into the system the corresponding warning lamps will illuminate, subsequently, if the door is opened, the corresponding warning lamps will flash accompanied with an alarm sound...
  • Page 237 STARTING & DRIVING Alarm Mode When there is a risk of collision, the warning lamp on the corresponding side will illuminate. If the door continues to be opened at this time, the warning lamp will flash with an alarm sound.
  • Page 238: Tyre Pressure Monitoring System (Tpms)

    STARTING & DRIVING Tyre Pressure Monitoring System maintenance. For tyre maintenance, please refer to ‘Tyres’ (TPMS) in ‘Maintenance’ chapter. Note: TPMS only warns of low tyre pressures, it does TPMS can not replace routine maintenance not re-inflate the tyre. and checks of the tyre condition and pressure.
  • Page 239 STARTING & DRIVING TPMS Self-learning When replacing a TPMS sensor and receiver, or performing tyre rotation, the TPMS self-learning is required, please consult a local MG Authorised Repairer for details.
  • Page 240: Load Carrying

    STARTING & DRIVING Load Carrying IMPORTANT DO NOT exceed the gross vehicle weight Traffic regulations must be observed when loading or the permitted front and rear axle loads. cargo, if the cargo extrudes the loadspace appropriate Failure may result in vehicle damage or warning measures must be taken to warn other road serious injury.
  • Page 241: Internal Loading

    Note: Exceeding any load limits advised by MG Motor is dangerous. Consult the recommended load limits Folding the rear seats can increase luggage space, and loading prior to any journey.
  • Page 242 Only genuine MG approved tow bars should be fitted to your vehicle. Only use the attachment method specified by the vehicle manufacturer for securing the towing hitch. Contact your authorised MG dealer for more information. Safety chains: Safety chains must be used as a precautionary measure should the trailer become unintentionally unhitched.
  • Page 243: Alarm System

    STARTING & DRIVING Alarm System If the car can still not be started, please contact MG Authorised Repairer. Your car is fitted with an electronic anti-theft alarm and power immobilisation system. To ensure maximum safety and operation convenience, we strongly recommend you to carefully read this chapter to fully understand the activation and deactivation of anti-theft systems.
  • Page 244: Anti-Theft System

    STARTING & DRIVING Anti-theft System • Using the mechanical key to unlock: partially operate the door release handle, using a suitable flat blade Locking and Unlocking tool, insert the tool into the underside of the trim and carefully remove the driver door lock trim cover, insert When the vehicle is locked, the remove indicator lamps flash three times;...
  • Page 245 Note: Keep the distance between the smart key and vehicle can not be unlocked or locked normally, please the door handle within 1.5 m range in order to lock contact a local MG Authorised Repairer. and unlock the doors in a keyless way.
  • Page 246 STARTING & DRIVING Mislock Interior Lock and Unlock Switch If the driver's door is not fully closed when the smart key lock button is pressed, the vehicle horn will sound once,indicating a mislock. In this case, none of the doors will lock, the alarm system will not be armed.
  • Page 247: Manual Tailgate

    STARTING & DRIVING Manual Tailgate Note: If the vehicle anti-theft system is set, pressing the lock/unlock switch of interior locks will not If the tailgate can not be closed or the lock/unlock doors but will trigger the alarm system. weatherstrip between the body and tailgate If the doors, bonnet and tailgate are closed, press the is fractured, be sure to close all windows interior lock switch, the yellow indicator on the lock switch...
  • Page 248: Emergency Tailgate Opening

    STARTING & DRIVING 2 Long press the tailgate open button on the key (Figure B ) for more than 2 seconds to unlock the tailgate. Then the tailgate can be lifted open. Emergency Tailgate Opening Tailgate emergency open switch is located in the inner side of tailgate lock.
  • Page 249 STARTING & DRIVING...
  • Page 251: Emergency Information

    Emergency Information 252 Hazard Warning Devices 253 Vehicle Recovery 257 eCall - SOS Emergency Assistance 259 Emergency Starting 262 Tyre Repair 269 Fuse Replacement 277 Bulb Replacement...
  • Page 252: Hazard Warning Devices

    EMERGENCY INFORMATION Hazard Warning Devices if possible, and press the hazard warning switch to warn other road users of your position. Warning Triangle The warning triangle supplied with your vehicle is stowed in the loadspace. If you have to stop your vehicle on the road in an emergency, you must place a warning triangle approximately 50 ~ 150 metres directly behind the vehicle...
  • Page 253: Vehicle Recovery

    EMERGENCY INFORMATION Vehicle Recovery Towing for Recovery DO NOT tow the vehicle with any of the driving wheels in contact with the road surface, this will avoid electric drive transmission damage. When it is necessary to temporarily push or tow the vehicle from a dangerous situation or onto the transporter, the speed must remain below 3 mph and be completed with in 3 minutes.
  • Page 254 EMERGENCY INFORMATION Your vehicle is equipped with 2 towing eyes (located at the front and the rear of the vehicle), which are used for fitting the towing hook in the tool kit. The tool kit is placed beneath the loadspace floor. To fit the towing hook, remove the small cover set into the bumper, first press one end of the small cover plate, then open the small cover plate after the other end is lifted, then screw in the towing hook via the small hole into the threaded hole in the bumper beam (see illustration).
  • Page 255 EMERGENCY INFORMATION Towing for Recovery When towing, DO NOT accelerate or brake suddenly, this can cause accidents. Suspended Towing When using suspended towing, be careful not to let the high voltage battery pack touch the ground. Suspended towing is the best method for recovering a vehicle that needs to be towed.
  • Page 256: Transporter Or Trailer

    EMERGENCY INFORMATION Transporter or Trailer 3 Fit the lashing straps ( 3 ) around the wheels and secure them to the transporter or trailer. Tighten the straps If your vehicle needs to be transported on the back of a until the vehicle is securely held. trailer or a transporter, it must be secured as illustrated: 1 Apply the parking brake and place the electric drive transmission in park.
  • Page 257: Ecall - Sos Emergency Assistance

    EMERGENCY INFORMATION eCall - SOS Emergency Assistance When the eCall triggers, the system will only transmit the data information to the relevant public safety answering In an accident, your vehicle’s eCall – SOS Emergency points designated by the respective public authorities of Assistance can either be triggered manually or in severe the country on which territory they are located, which cases automatically upon detection by vehicle’s sensors.
  • Page 258 Assistance relies on cellular coverage and may be affected by signal outages or low signal strength. Note: The automatic emergency services call (eCall) function may be disabled by a local MG Authorised Repairer upon request. Note: It is strongly recommended the eCall function is not disabled, any action requested by the owner must be accompanied by a signed request.
  • Page 259: Emergency Starting

    EMERGENCY INFORMATION Emergency Starting Ensure the vehicle power system is turned off and switch off ALL electrical equipment on the vehicle, then follow the NEVER attempt to power the vehicle by instructions as below: pushing or towing. 1 Connect a RED booster cable between the positive ( + ) terminals of both batteries.
  • Page 260 2 Power up or start the donor vehicle and allow it to run for a few minutes. 3 Power up or start the disabled vehicle. If the disabled vehicle does not power up or start after several attempts, it may need to be repaired. Please contact an MG Authorised Repairer.
  • Page 261 1~2 hours after it is started, in order to recover the battery power. If the vehicle still fails to start/power normally after full charging, please contact an MG Authorised Repairer.
  • Page 262: Tyre Repair

    EMERGENCY INFORMATION Tyre Repair Note: If the pulling force required to remove the wheel trim cover is large, use a suitable tool to pull it out. The vehicle is equipped with low wind resistance wheel trim covers, which are fixed by snaps. If you need to remove or install the wheel trim cover, please pay attention to the following precautions: 1 When removing the trim cover, it's better to pull the...
  • Page 263: Tool Identification (Including Tyre Repair Tool)

    EMERGENCY INFORMATION Tool Identification (including tyre repair tool) Tyre Repair 1 Remove the label at the bottom of the repair fluid reservoir and attach it to the steering wheel to remind the driver not to exceed 50 mph. 1 Electric Air Pump 2 Wheel Bolt Cap Removal Tool 3 Repair Fluid 2 Connect the air hose of the electric air pump to the...
  • Page 264 If the required pressure can still not be reached, the tyre is severely damaged and you should seek assistance from the Roadside Assistance company or an MG Authorised Repairer. Note: To avoid battery discharge,...
  • Page 265 EMERGENCY INFORMATION tyre valve. Then remove the plug of the electric air Note: DO NOT remove foreign objects (eg. screws, nails) from the tyre. The tyre repair system must only pump from the centre console power socket, return be used when the foreign object is in the tread pattern the tyre repair kit to its stowage tray.
  • Page 266: Changing A Wheel

    EMERGENCY INFORMATION Changing a Wheel Positioning the Jack DO NOT work underneath the car with a If you need to change the wheel during the journey, choose wheel changing jack as the only means of a safe place to stop away from the main road if possible. support.
  • Page 267 EMERGENCY INFORMATION Fitting the Spare Wheel Regularly check the spare wheel tyre pressure, it may be underpressure due to unused for long periods of time. Always check the tyre pressure after changing a wheel. The wheel bolts must be tightened to the specified torque after changing a wheel ( 120 ~ 130 Nm).
  • Page 268 Note: DO NOT stand on the handle of the wheel bolt spanner or use extension tube on the handle of the spanner. Note: When replacing the wheel, please fully tighten the bolts in the diagonal sequence twice. Note: Please contact an MG Authorised Repairer to replace with a new tyre.
  • Page 269: Fuse Replacement

    • If a replaced fuse fails immediately, please contact a local MG Authorised Repairer for service as soon as possible. 1 Passenger compartment fuse box (behind the driver...
  • Page 270: Passenger Compartment Fuse Box

    EMERGENCY INFORMATION Passenger Compartment Fuse Box 3 Clamp the fuse head with a fuse extraction tool in the fuse box cover of the front compartment, pull and remove the fuse, and check whether the fuse is blown. 4 If a fuse is blown, replace it with another fuse of the same type and same ampere value.
  • Page 271 EMERGENCY INFORMATION Code Specs Function Code Specs Function Driver door Digital radio, combination central display, 7.5A switch, exterior front view rearview camera module mirrors and Charging Port headlamp leveling switch, EPB switch, Driver seat infortainment control module, control panel, driver seat clock spring adjustment Pedestrian...
  • Page 272 EMERGENCY INFORMATION Code Specs Function Code Specs Function Rear Driving Super Lock Assistance F16-F17 Radar Electronic F26-F43 Steering Column Lock Front Console Power Socket Rear USB port, wireless charging module of Automatic mobile phone Temperature Control Infortainment Mainframe...
  • Page 273: Front Compartment Fuse Box

    EMERGENCY INFORMATION Front Compartment Fuse Box 3 Clamp the fuse head with a fuse extraction tool in the upper cover, pull and remove the fuse, and check whether the fuse is blown. 4 If a fuse is blown, replace it with another fuse of the same type and same ampere value.
  • Page 274 EMERGENCY INFORMATION Code Specs Function Code Specs Function Electric Exterior Rearview Electric Parking Motor Control Unit Mirror Body Control Module Electric Parking Motor Control Unit Heated Rear Window Collision Power Module Integrated Braking System Integrated braking system, Power Window Regulator electric power steering, Motor second axis motor controller,...
  • Page 275 EMERGENCY INFORMATION Code Specs Function Code Specs Function PEB Cooling Water Pump Electric air conditioning compressor, battery pack High Voltage Battery Pack heater System Interior rearview mirror, Air Conditioning Inlet Box exterior rearview mirrors and headlamp leveling switch, left Second axis motor control headlamp, right headlamp unit, intelligent electronic control unit...
  • Page 276 EMERGENCY INFORMATION Code Specs Function Passenger compartment fuse 100A Cooling Fan Power Supply Integrated Braking System...
  • Page 277: Bulb Replacement

    Before replacing any bulb, be ensure the vehicle and lighting switch are both powered OFF to avoid any possibility of a short circuit. When replacing the bulb,actions should be gentle so as not to damage the lamp. MG only recommends...
  • Page 278 EMERGENCY INFORMATION Front Reading Lamp 6 Reconnect the battery negative terminal. 7 Test lamp operation. 1 Disconnect the battery negative terminal. 2 Gently pry the lens from the lamp assembly with flat-bladed screwdriver. 3 Remove the bulb from its mounting to remove. 4 Install new bulb.
  • Page 279 EMERGENCY INFORMATION Front Direction Indicator Lamp * 5 Insert bulb holder in lamp assembly, rotate clockwise until fully secure. 1 Open the bonnet. 6 Reconnect the battery negative terminal. 2 Disconnect the battery negative terminal. 7 Test lamp operation. 3 Rotate the front direction indicator bulb holder anti-clockwise to remove from the lamp unit and 8 Close the bonnet.
  • Page 280 EMERGENCY INFORMATION Rear Direction Indicator Lamp & Reverse Lamp 1 Open tailgate. 2 Disconnect the battery negative terminal. 3 Carefully remove the two covers on tail lamp trim panel with a suitable pry bar or lever, . 5 Disconnect the harness connector and remove the tail lamp.
  • Page 281 EMERGENCY INFORMATION 12 Reconnect the battery negative terminal. 13 Test lamp operation. 14 Close tailgate. 7 Fit new bulb to bulb holder. 8 Insert the bulb holder in tail lamp assembly, rotate clockwise until fully secure. 9 Ensure lamp seal is correctly located. 10 Connect the harness connector, position lamp to body, start 2 bolts fixings, and tighten to 3 - 5 Nm.
  • Page 282 ( 2 ), when replacing the rear fog lamp. lamp bulb. Note: If there are any signs of damage to high-voltage component ( 2 ), please contact your MG Authorised Repairer before replacing the bulb.
  • Page 283 EMERGENCY INFORMATION 9 Connect the battery negative terminal. 10 Test lamp operation. 1 High-voltage Component 2 Rear Fog Lamp 6 Fit new bulb to bulb holder. 7 Insert bulb holder in lamp assembly, rotate clockwise until fully secure. 8 Refit the rear bottom deflector.
  • Page 285: Service And Maintenance

    Service and Maintenance 286 Maintenance 289 Bonnet 290 Front Compartment 291 Battery 293 Cooling System 295 High Voltage Battery Pack 298 Washer 300 Wipers 302 Brake 304 Tyre 310 Cleaning and Vehicle Care...
  • Page 286: Maintenance

    Service History a number of simple checks must be carried out more frequently. Advice is given on the pages that follow. Ensure MG Authorised Repairer registers the Service History after each service. Daily Check • Operation of lights, horn, wipers, washers and warning Brake Fluid Replacement lamps.
  • Page 287 • Brake fluid level. You need to carry out special maintenance operations (refer to Service Schedule) or contact an MG Authorised • Windscreen washer fluid level. Repairer. • Operate air conditioning.
  • Page 288 SERVICE AND MAINTENANCE • DO NOT work underneath the car with a wheel changing jack as the only means of support. • Wear protective clothing and work gloves. • Remove watches and jewelery before working in the front compartment. • DO NOT allow tools or metal parts of the car to make contact with the battery leads or terminals.
  • Page 289: Bonnet

    SERVICE AND MAINTENANCE Bonnet 2 Move the safety catch release handle on the bonnet lock assembly in the direction of the arrow ( B ) to Opening the Bonnet release the bonnet safety catch. 3 Raise the bonnet and hold it up with the support rod DO NOT drive when the bonnet is not firmly.
  • Page 290: Front Compartment

    SERVICE AND MAINTENANCE Front Compartment When operating the components in the front compartment, the safety precautions listed in "Safety in Garage" should be observed, and please refer to "Maintenance" in this section. 1 High Voltage Battery Pack Coolant Expansion Tank (Black Cap) 2 Electric Drive Transmission Coolant Expansion Tank (Black Cap)
  • Page 291: Battery

    SERVICE AND MAINTENANCE Battery Battery Maintenance on-board electrical appliances for an extended period of time when the vehicle is not started, otherwise the battery may become flat, resulting in the failure to start the vehicle or the reduction of battery life. Always store batteries upright, and never attempt to dismantle a battery.
  • Page 292: Battery Replacement

    Battery Replacement The battery contains sulphuric acid, which is corrosive. Please contact an MG Authorised Repairer to remove and refit the battery. In order to maintain the correct vehicle functionality, it is recommended to fit a replacement battery of the same type and specification as the original.
  • Page 293: Cooling System

    SERVICE AND MAINTENANCE Cooling System 2 Electric drive transmission coolant expansion tank The cooling system should be checked weekly when the Coolant Check and Top Up cooling system is cold and with the car resting on level DO NOT remove the coolant pressure cap ground.
  • Page 294 SERVICE AND MAINTENANCE Prevent the coolant from coming into contact with the skin or eyes. If this occurs, rinse immediately with plenty of water. If eyes are still red, painful or uncomfortable, seek medical attention immediately. Please use the coolant which is recommended and certified.
  • Page 295: High Voltage Battery Pack

    SERVICE AND MAINTENANCE High Voltage Battery Pack If the battery is in a low state of charge and the instrument pack displays no valid Precautions and restricted conditions for driving range, the vehicle MUST NOT be use of battery left in a stored state for more than 7 days without being charged to above 50%.
  • Page 296 MG emergencies. Authorised Repairer. 3 It is recommended using the vehicle at least once a 6 In the event of any accident or body repairs being month.
  • Page 297 SERVICE AND MAINTENANCE voltage battery isolation or specialist HV component removal. IMPORTANT Only fully trained and qualified personel are allowed to work on the high voltage systems and components of this vehicle. Any disassembly of such systems or components is strictly prohibited.
  • Page 298: Washer

    SERVICE AND MAINTENANCE Washer Washer Fluid Check and Top Up Windscreen washer fluid is flammable. DO NOT allow windscreen washer fluid to come into contact with naked flames or sources of ignition. When filling the washer fluid, DO NOT let the washer fluid spill on parts around the Note: DO NOT use an anti-freeze or vinegar/water engine,motor, electric drive transmission or...
  • Page 299: Washer Nozzles

    SERVICE AND MAINTENANCE Washer Nozzles IMPORTANT • Use the washer fluid recommended and certified by the manufacturer. Misuse of washer fluid in winter may cause damage to the washer motor due to freezing. • Turning on the washer switch when there is no washer fluid may cause damage to the washer motor.
  • Page 300: Wipers

    SERVICE AND MAINTENANCE Wipers Wiper Blades IMPORTANT • Grease, silicon and petroleum products impair the blade's wiping capability. Clean the wiper blades in warm soap water, and check their status periodically. • Clean the windscreen frequently. DO NOT use wiper blades to remove stubborn or ingrained dirt, it will reduce their effect and their life span.
  • Page 301: Replacing Front Windscreen Wiper Blades

    SERVICE AND MAINTENANCE Replacing Front windscreen Wiper Blades 2 Lift the wiper arm away from the windscreen. 3 Press the button on the wiper arm (as illustrated), and pull the upper end of the wiper blade outward to disengage from the wiper arm. 4 Unhook the blade from the wiper arm and discard it.
  • Page 302: Brake

    SERVICE AND MAINTENANCE Brake Brake Fluid Check and Top Up DO NOT rest your foot on the brake pedal Brake fluid is highly toxic, keep the brake while driving; this may overheat the brakes, fluid sealed and stored out of reach of reduce their efficiency and cause excessive children.
  • Page 303: Brake Fluid Specification

    SERVICE AND MAINTENANCE IMPORTANT Replace brake fluid regularly according to the Service Portfolio. Note: Brake fluid will damage painted surfaces. If you accidentally spill the brake fluid on the painted surface, soak up any spillage with an absorbent cloth immediately and wash the area with water or car shampoo.
  • Page 304: Tyre

    If you can't see the damage from the outside, continue driving the vehicle • New tyres may not have the best adhesive ability at the slowly to a nearest MG Authorised Repairer for inspection beginning. Therefore, driving your vehicle at moderate and service.
  • Page 305 If the tyres show signs of abnormal Tyre Pressures wear, check the wheel alignment in time and seek advice from an MG Authorised repairer. Incorrect pressure will cause the abnormal wear of the tyre, greatly shorten the service life, and have an adverse effect on the driving characteristics of the vehicle.
  • Page 306: Caring For Your Tyres

    Keep the valve caps firmly secured to prevent dirt from you consult an MG Authorised Repairer. entering the valve. Check the valve for leaks (listen for a Always drive with consideration for the condition of the tell-tale hissing) when you check the tyre pressure.
  • Page 307: Tyre Wear Indicators

    SERVICE AND MAINTENANCE immediately and drive with caution until the spare wheel can be fitted, or repairs undertaken. Note: If the sidewall of the tyre is damaged or distorted, replace the tyre immediately, do not attempt to repair it. Tyre Wear Indicators The tyres fitted as original equipment have 1.6 mm-high wear indicators at their tread pattern bottom, vertical with the wheel rolling direction and evenly distributed around...
  • Page 308: Tyre Rotation

    This can prevent tyres from uneven wear, prolong the life Note: TPMS coding is required after changing wheel span and balance tyre fatigue. positions, please consult a local MG Authorised Repairer for details. It is favorable to swap the driving wheels from front to rear and exchange non-driving wheels across.
  • Page 309 Tyres Supporting Tyre/Snow Chains for This Vehicle Wheel Rim Size 7.0J×17 Tyre Size 215/50 R17 Note: If you often drive on the snowy and icy roads, it is recommended to use winter tyres. Consult an MG Authorised Repairer for details.
  • Page 310: Cleaning And Vehicle Care

    SERVICE AND MAINTENANCE Cleaning and Vehicle Care • In hot weather, DO NOT wash the car in direct sunlight. • When using a hose, DO NOT aim the water directly Observe all safety precautions on cleaning at window, door or sunroof seals, or through wheel products;...
  • Page 311 SERVICE AND MAINTENANCE Paint Damage IMPORTANT Any paint damage or stonechips should be treated with • Always read manufacturers operating suitable paint/lacquer materials immediately to avoid instructions. invalidating the Anti Corrosion Warranty. • DO NOT direct the pressure washer nozzle directly toward the high voltage charging point or high Wiper Blades voltage battery connections on the underside of the...
  • Page 312 SERVICE AND MAINTENANCE Plastic Components Cleaning the underside DO NOT use a high pressure hose to clean Any plastic components should be cleaned using the front compartment – damage to the conventional cleaning methods and not be treated with car’s electronicsystems may occur. abrasive materials.
  • Page 313: Cleaning The Interior

    SERVICE AND MAINTENANCE Cleaning the Interior Airbag Module Covers DO NOT allow these areas to be flooded Plastic materials with liquid and DO NOT use petrol, Clean plastic-faced materials with diluted upholstery detergent, furniture cream or polishes. cleaner, then wipe with a damp cloth. To protect damage to the airbag SRS, the following Note: DO NOT polish dashboard components –...
  • Page 315: Technical Data

    Technical Data 316 Technical Data Dimensions 318 Weights 320 Electric Drive Transmission 321 Recommended Fluids and Capacities 322 Four-Wheel Alignment Parameter Table (Unladen) 323 Wheels and Tyres 324 Tyre Pressure (Cold)
  • Page 316: Technical Data Dimensions

    TECHNICAL DATA Technical Data Dimensions Item, Units Parameter Overall length A , mm 4287 Overall width B , mm 1836 Overall height C unladen, mm 1504 Wheelbase D , mm 2705 Front overhang E , mm...
  • Page 317 TECHNICAL DATA Item, Units Parameter Rear overhang F , mm Front wheel track, mm 1550 Rear wheel track, mm 1551 Minimum ground clearance, mm Note: Vehicle length not including the license plate. Note: Rearview mirrors and the deformed portion of tyre wall directly above the touchdown point are not included in the total width...
  • Page 318: Weights

    TECHNICAL DATA Weights Parameters Item, Units COM-11KW COM-6.6KW LUK-11KW COM-6.6KW Person in cab, person Unladen vehicle weight (kerb), kg 1635 1651 1648 1665 1662 Gross vehicle weight, kg 2083 2113 2113 2113 2113 Unladen front axle weight, kg Unladen rear axle weight, kg Gross front axle weight, kg Gross rear axle weight, kg 1163...
  • Page 319: Towing Weights

    TECHNICAL DATA Towing Weights Item, Units Parameters Towing limit unbraked, kg Towing limit braked, kg Towing hitch load, kg Note: When towing a trailer, the vehicle speed MUST not exceed 60 mph. Note: Prior to towing a trailer, please check the rear tyre pressures, inflate to at least 20 kPa ( 0.2 bar, 3 psi) above the recommended pressure - DO NOT allow the tyre pressure to exceed 300 kPa ( 3.0 bar, 44 psi), this can be dangerous.
  • Page 320: Electric Drive Transmission

    TECHNICAL DATA Electric Drive Transmission Item, Units Type 1 Type 2 Three-phase permanent magnet Three-phase permanent magnet Traction motor type synchronous motor synchronous motor Continuous Power/Maximum 68/150 54/125 NetPower, kW Peak Torque, Nm Rated Speed/Maximum Speed, rpm 8000/17000 8000/17000 Waterproof Grade IP67 IP67...
  • Page 321: Recommended Fluids And Capacities

    TECHNICAL DATA Recommended Fluids and Capacities Name Grade Capacity High voltage battery pack coolant, L Glycol ( OAT ) Electric drive transmission coolant, L Electric drive transmission fluid, L Shell E-Fluids E6 iX (SL2808) Brake fluid, L DOT 4 Washer fluid, L ZY-VIII Air conditioning refrigerant, g R-1234yf...
  • Page 322: Four-Wheel Alignment Parameter Table (Unladen)

    TECHNICAL DATA Four-Wheel Alignment Parameter Table (Unladen) Items Parameters Camber -12¢±45¢ King Pin Caster Angle 6°50¢±45¢ Front Wheel Toe in (Total) 6¢±12¢ King Pin Inclination 12°45¢±45¢ Camber -1°±45¢ Rear Wheel Toe in (Total) 12¢±12¢...
  • Page 323: Wheels And Tyres

    TECHNICAL DATA Wheels and Tyres Wheel Rim Size 7.0JX17 Tyre Size 215/50 R17 95V...
  • Page 324: Tyre Pressure (Cold)

    TECHNICAL DATA Tyre Pressure (Cold) Wheels Half-load Laden Front Wheels 250kPa/2.5bar/37psi 250kPa/2.5bar/37psi Rear Wheels 250kPa/2.5bar/37psi 280kPa/2.8bar/41psi...

Table of Contents

Save PDF
