OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
637427-XX for fl uid section repair (see page 4).
637428 for air section repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . Air Operated Double Diaphragm
Material . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.74 lbs (3.96 kgs)
Maximum Air Inlet Pressure . . . . . . . . 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 100 p.s.i.g. (6.9 bar)
Air Consumption @ 40 p.s.i. . . . . . . . 1 c.f.m. / gallon (approx.)
Maximum Flow Rate
(fl ooded inlet)
Displacement / Cycle @ 100 p.s.i.g. . 0.030 gal. (0.11 lit.)
Maximum Particle Size . . . . . . . . . . . . . 3/32" dia. (2.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . . 75.0 db(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET -- BRYAN, OHIO 43506
(800) 495-0276 FAX (800) 892-6276
www.ingersollrandproducts.com
3/4" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . 13.6 g.p.m. (51.5 l.p.m.)
) to meet the intent of ANSI
Aeq
© 2010 CCN 15275290
MODEL DESCRIPTION CHART
Center Section Material
R - Polypropylene
Fluid Connection
A - 3/4 - 14 N.P.T.F. - 2
B - Rp 3/4 (3/4 - 14 BSP, parallel)
Fluid Cap & Manifold Material
A - Aluminum
Hardware Material
S - Stainless Steel
Seat Material
F - Aluminum
P - Polypropylene
Ball Material
A - Santoprene
C - Hytrel
T - PTFE
Diaphragm Material
A - Santoprene
C - Hytrel
T - PTFE / Santoprene
Fluid Section Service Kit Selection
EXAMPLE: Model #PD07R-AAS-PCC
Fluid Section Service Kit # 637427-CC
PD07X-X-X
RELEASED: 2-20-07
REVISED: 5-21-10
(REV. 04)

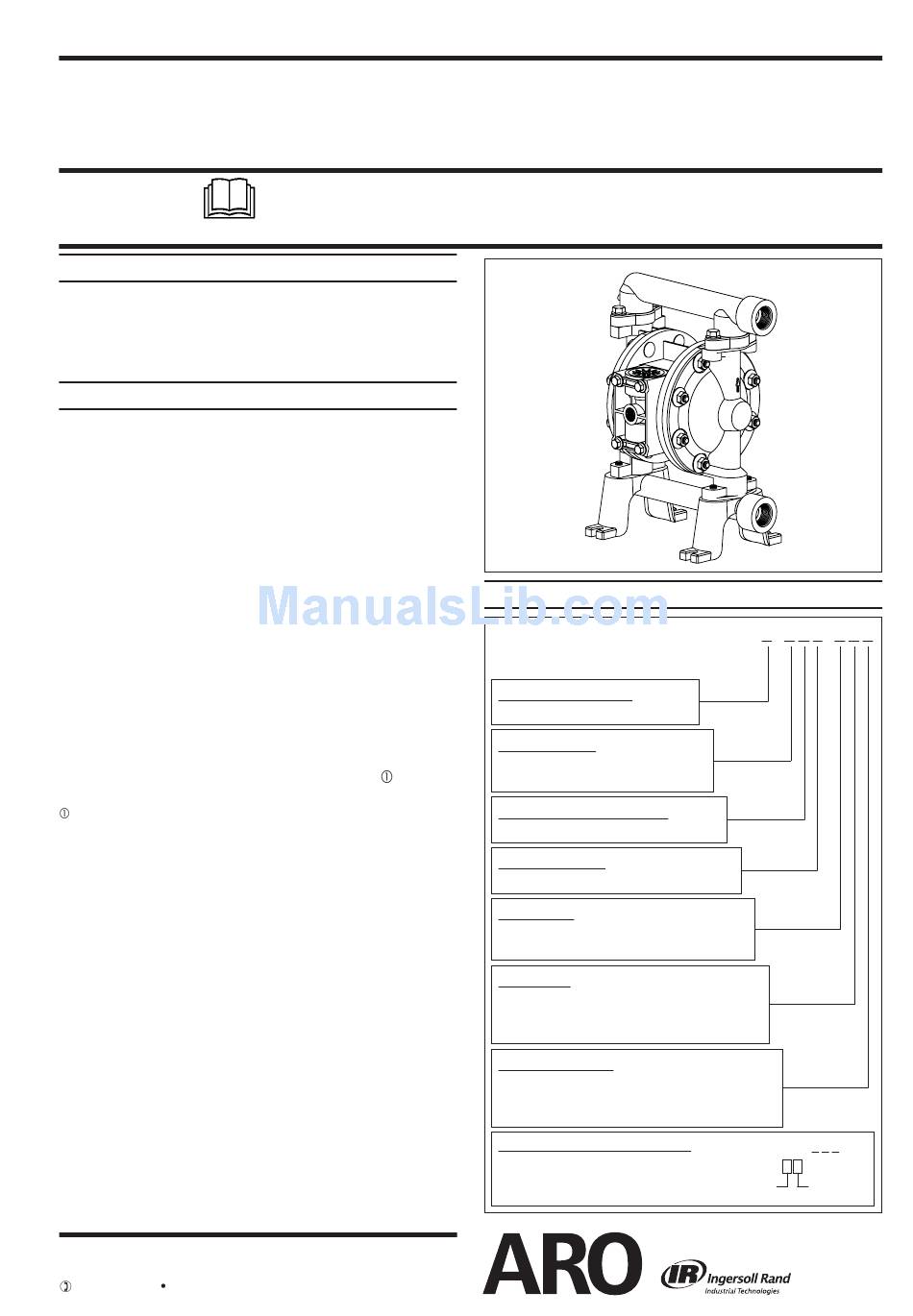

Figure 1
PD07R - X A S - X X X
PD07R - XAS - X X X
637427 - X X
Ball Diaphragm
