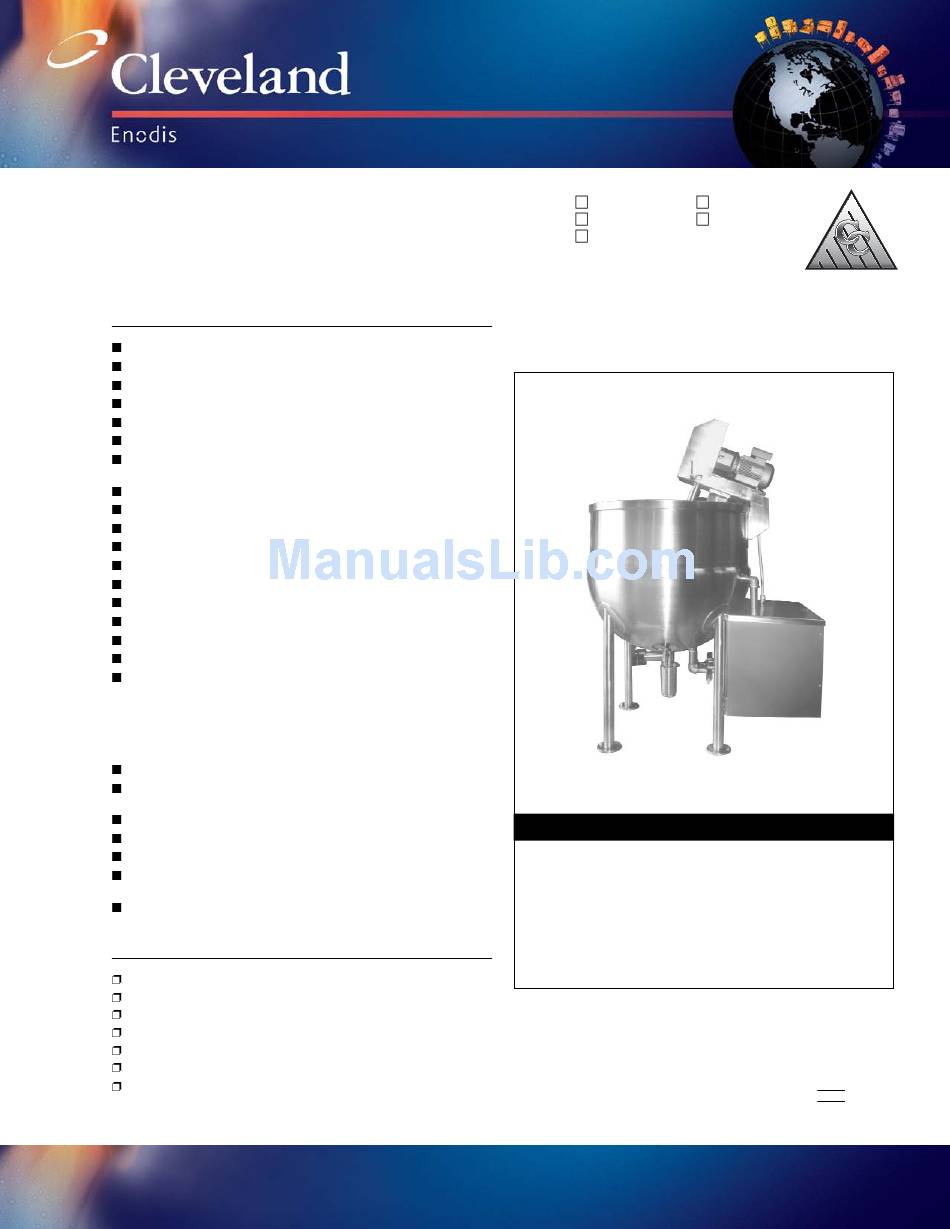

COOK/CHILL
INCLINED AGITATOR
STATIONARY MIXER KETTLES
Cleveland Standard Features
Full 60,100,150,200 or 300 gallon working capacity
Electrically driven, Inclined Agitator Mixer Arm
Variable mixer speed control
Heavy duty, removable breaker bar
Flush mounted, easily removable temperature probe
Simmer control for cooking delicate products
3" diameter air operated, flush mounted piston draw-off valve
(requires air compressor)
Spiral flights for even water cooling
Motor protection shield
Easily removable agitator without the use of tools
Spring loaded scraper blades
Kettle mounted valve box for single point utility connections
Heavy duty rim bar
100 psi steam jacket rating and safety valve
Type 316 stainless steel for all food contact surfaces
Water fill faucet with swing spout
NSF approved
Accepted for use in USDA inspected facilities
Note: This COOK/CHILL mixer kettle requires a control panel for oper-
ation which must be specified separately.
Standard Features for Kettle Control Center:
Solid state temperature control with digital read-out
Time/Temperature Chart Recorder to provide permanent
record of Batch Processing
Automatic and manual steam control
Automatic and manual water cooling
Simmer control for delicate products
Automatic water meter with accumulative "add on" button
and digital readout
U.L. approved
Options & Accessories
Single or dual remote control center
Stainless steel lift-off cover
Tilt-out agitator
Larger models, up to 800 gallons available
3" flush mounted ball valve
Loading bucket and dolly
Electric chain hoist for lifting the product load
Cleveland Range Inc.
MODELS:
IA-MKDL-60-CC
IA-MKDL-100-CC
IA-MKDL-150-CC
ITEM NUMBER __________________________________________
JOB NAME / NUMBER __________________________________
Short Form Specifications
Shall be CLEVELAND Model IA-MKDL-___-CC; COOK/CHILL STA-
TIONARY INCLINED MIXER KETTLE, ___ gallons; leg mounted;
2/3 jacketed, direct steam; 100 psi Steam Jacket Pressure Rating;
316 Stainless Steel Liner; electrically driven Inclined Agitator;
Variable Mixer Speed Control; 3" diameter air operated, flush
mounted Piston Draw-Off Valve; spring loaded Scraper Blades;
flush mounted Temperature Probe; Automatic Water Meter; Water
Fill Faucet with swing spout; Time/Temperature Chart Recorder
(located in Control Center).
1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Ph: 1-216-481-4900 Fx: 1-216-481-3782
Visit our Web Site at www.clevelandrange.com
IA-MKDL-200-CC
IA-MKDL-300-CC
Cook/Chill Systems
XIV
11
SECT.
PAGE
1201
