Cleveland IA-MKDL-100-CC Specifications

™
Cleveland
COOK CHILL SYSTEMS

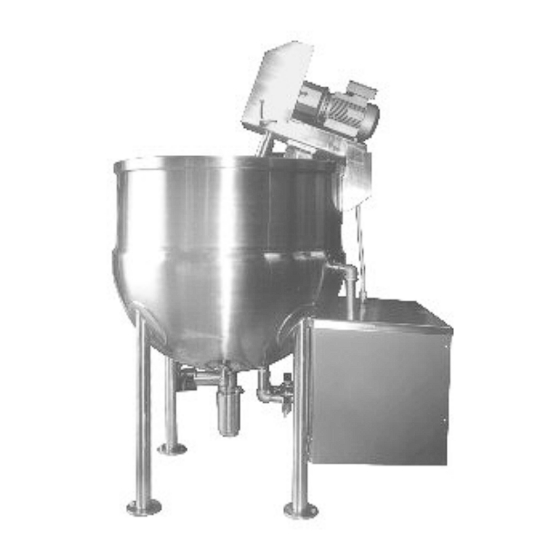

COOK/CHILL
INCLINED AGITATOR
STATIONARY MIXER KETTLES
Cleveland Standard Features
I Full 60,100,150,200 or 300 gallon working capacity
I Electrically driven, Inclined Agitator Mixer Arm
I Variable mixer speed control
I Heavy duty, removable breaker bar
I Flush mounted, easily removable temperature probe
I Simmer control for cooking delicate products
I 3" diameter air operated, flush mounted piston draw-off valve
(requires air compressor)
I Spiral flights for even water cooling
I Motor protection shield
I Easily removable agitator without the use of tools
I Spring loaded scraper blades
I Kettle mounted valve box for single point utility connections
I Heavy duty rim bar
I 100 psi steam jacket rating and safety valve
I Type 316 stainless steel for all food contact surfaces
I Water fill faucet with swing spout
I NSF approved
I Accepted for use in USDA inspected facilities
Note: This COOK/CHILL mixer kettle requires a control panel for opera-
tion which must be specified separately.
Standard Features for Kettle Control Center:
I Solid state temperature control with digital read-out
I Time/Temperature Chart Recorder to provide permanent record
of Batch Processing
I Automatic and manual steam control
I Automatic and manual water cooling
I Simmer control for delicate products
I Automatic water meter with accumulative "add on" button and
digital readout
I U.L. approved
Options & Accessories
Ë Water meter for hot and cold kettle fill
Ë Single or dual remote control center
Ë Two piece stainless steel lift-off cover
Ë Tilt-out agitator
Ë Larger models, up to 800 gallons available
Ë 3" flush mounted ball valve
Ë Loading bucket and dolly
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
Cook/Chill Systems
MODELS: IA-MKDL-60-CC
IA-MKDL-100-CC
IA-MKDL-150-CC
Short Form Specifications
Shall be CLEVELAND Model IA-MKDL-___-CC; COOK/CHILL STA-
TIONARY INCLINED MIXER KETTLE, ___ gallons; leg mounted;
2/3 jacketed, direct steam; 100 psi Steam Jacket Pressure Rating;
316 Stainless Steel Liner; electrically driven Inclined Agitator;
Variable Mixer Speed Control; 3" diameter air operated, flush
mounted Piston Draw-Off Valve; spring loaded Scraper Blades;
flush mounted Temperature Probe; Automatic Water Meter; Water
Fill Faucet with swing spout; Time/Temperature Chart Recorder
(located in Control Center).
Ë Electric chain hoist for lifting the product load
Ë 3", 90° Elbow
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
IA-MKDL-200-CC
IA-MKDL-300-CC
XIV 11
SECT. PAGE
0707
