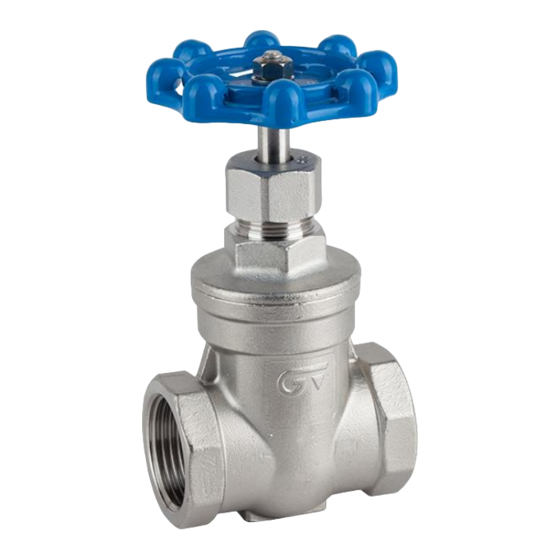

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Gate Valves with threaded ends GENEBRE Ref.: 2220 – 2220N GENEBRE S.A. LAST UPDATE: 24/03/2020 UPDATE NUMBER: 0...
- Page 2 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Product description....................... 3 2. Transport and Storage conditions ................. 3 3. Installation instructions ....................4 3.1) Preparation ......................4 3.2) Assembling ......................
- Page 3 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1. Product description. Genebre, S.A. offers a wide range of valves designed and assembled to handwheel and drive fluids in industrial procedures. The compatibility of materials used to build the valves (see technical specifications) and the application of valves to the different industrial processes is at user's risk.
- Page 4 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 3. Installation instructions 3.1) Preparation Remove any material remains of the valve wrapping. Serious problems may arise with the installation of a valve in a dirty pipe.
- Page 5 4. Operating instructions 4.1) Usage GENEBRE valves provide a leakproof lock when used adjusted to the pressure and temperature values for which they have been designed. Valve materials have to be fully compatible with the fluid circulating through the valve.
- Page 6 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Before disassembling the pipe's valve to clean or replace it, make sure that line has been closed and depressurized because a bad operational procedure could...
