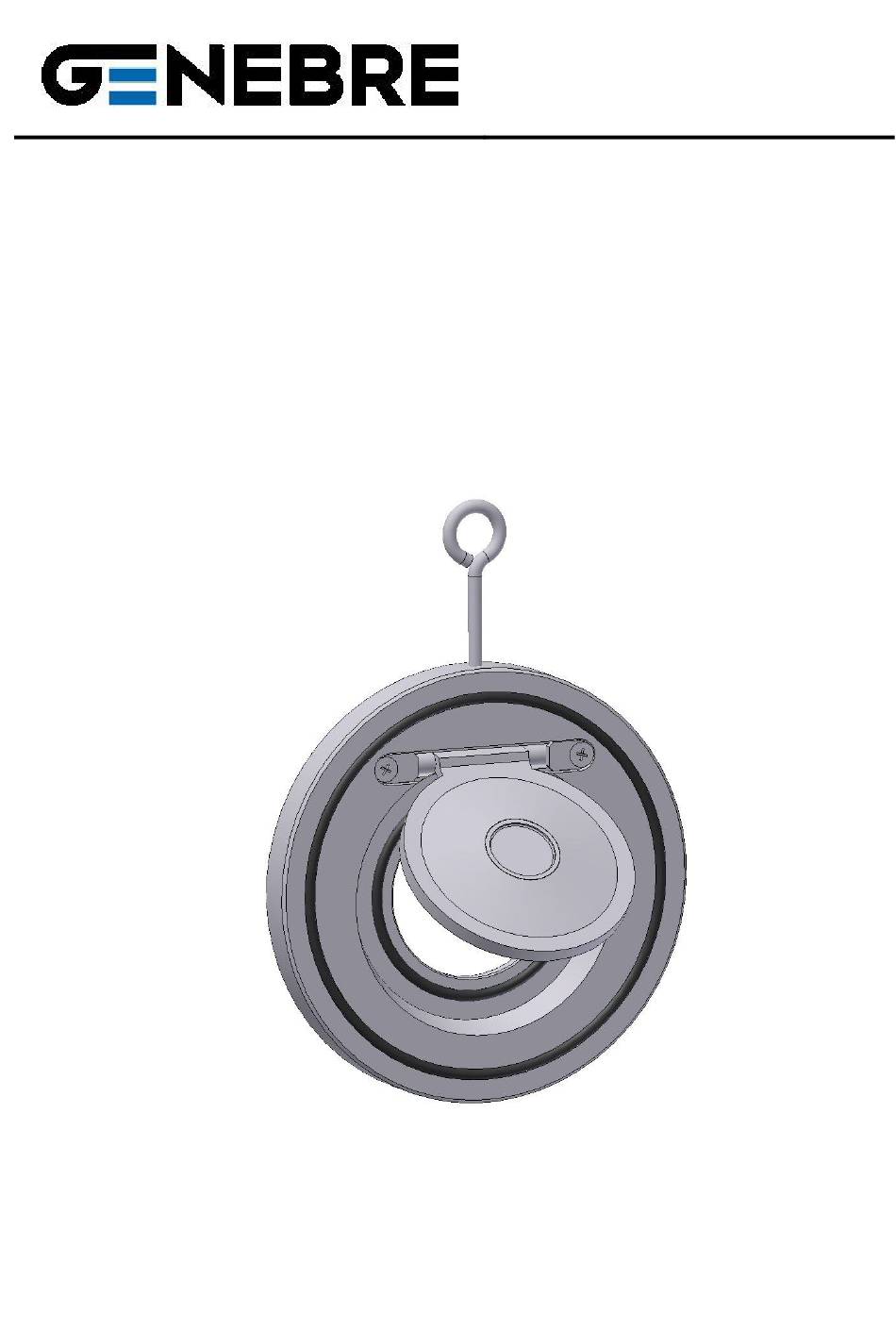

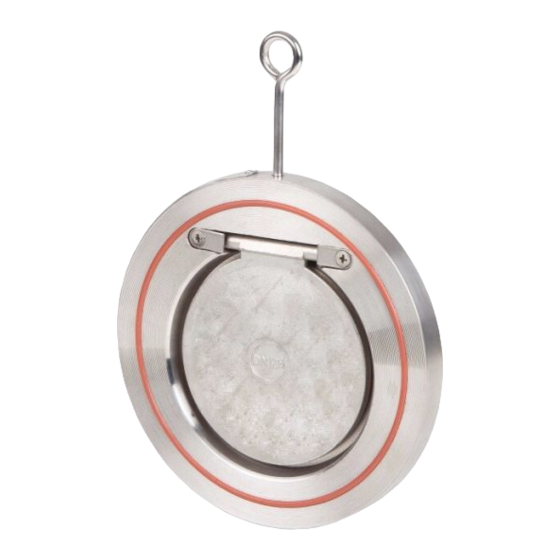

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Disk check valve GENEBRE Reference: 2406 GENEBRE S.A. LAST UPDATE: 19/08/2013 UPDATE NUMBER: 1...
- Page 2 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Breakdown drawing ..................3 1.1) List of valve components ................3 2. Storage ......................4 3. Installation instructions..................4 3.1) Preparation ....................
- Page 3 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Breakdown drawing 1.1) List of valve components PART NUM. NAME QUANT. MATERIAL FINISHING BODY CF8M PICKLING + BLASTING DISK CF8M PICKLING + BLASTING...
- Page 4 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 2) Storage In case valve is not immediately installed, it is recommended to keep it inside the included protective wrapping to avoid damages or dirt accumulation.The wrap must not be removed until valve is to be installed.
- Page 5 - www.genebre.es IMPORTANT: - Check disk valves by Genebre, S.A. (art.2406) are designed to be assembled between flanges DIN PN10, DIN PN16 and ANSI 150 (except DN40 only DIN). - Be extremely cautious when placing the valve in the center of the pipe axis to assure tightness between the body and the flange.
- Page 6 If this is the case, GENEBRE, S.A. has spare joints (part. 4) and seats (part. 3). However, it may be the case that (for example, in an area difficult to access) due to financial reasons it is not recommended to repair the valve but directly replace it.
- Page 7 Reinstall again the valve between flanges. See Installation instructions on page 4. 7) Pressure for opening Disk check valve by GENEBRE, S.A. (art.2406) has been designed to work with minimal operational pressures (to obtain more information, please consult the technical specifications).
