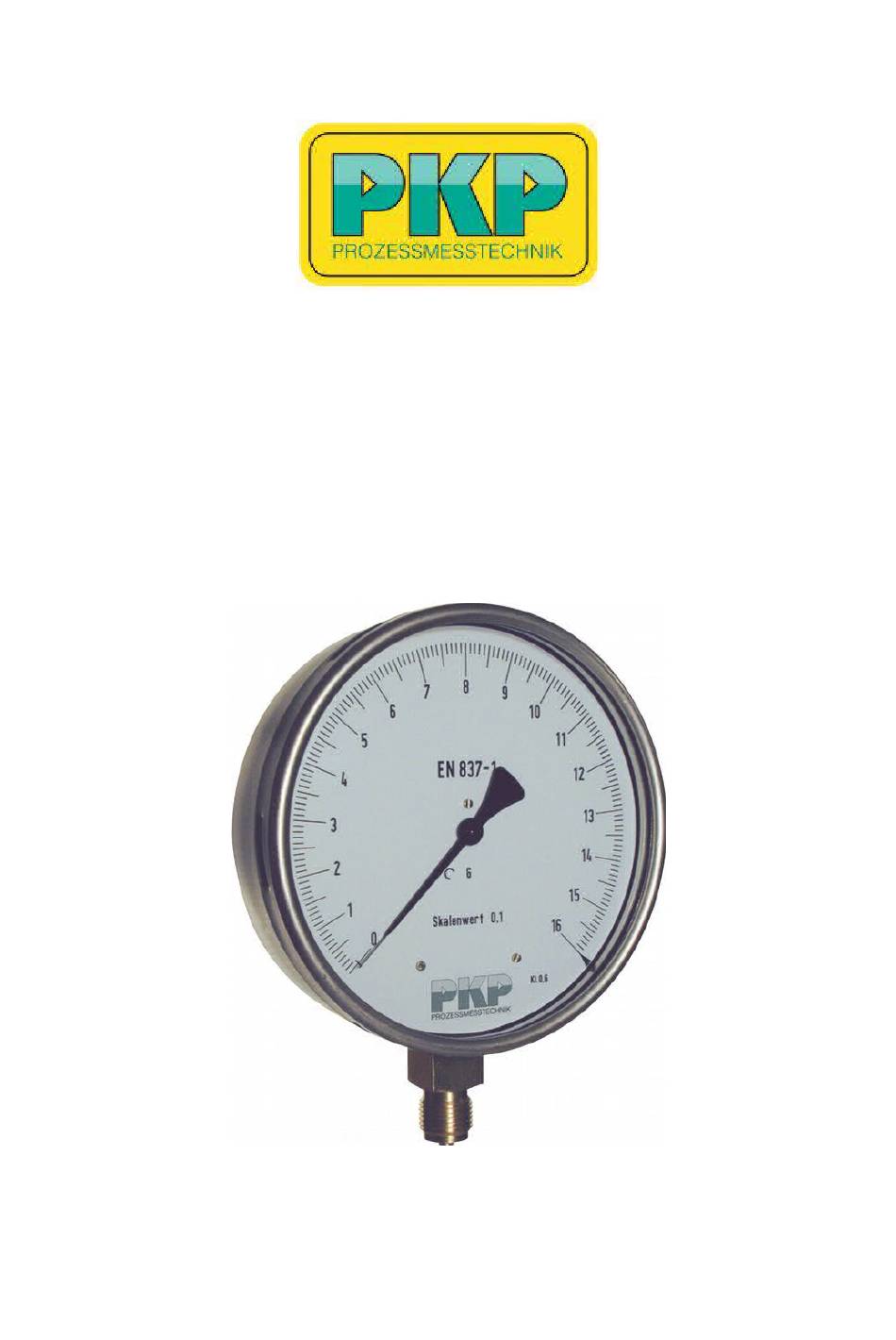

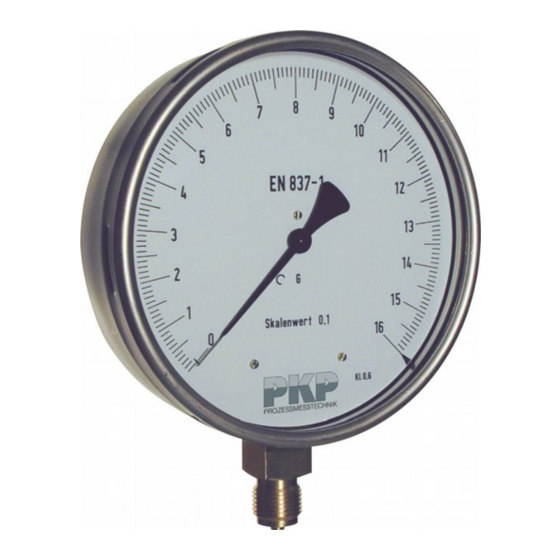

- Page 1 Instruction Manual PMR06 Precision Bourdon Tube Pressure Gauge PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de...
-
Page 2: Safety Information
Series PMR06 pressure gauges are designed for measuring different process pressures. Any application extending beyond this specific intended use does not constitute proper usage. Series PMR06 must not be employed as the sole means of avoiding hazardous conditions in machinery and installations. -
Page 3: Functional Description
Exposure to residue and deposits of materials being measured may pose a Caution: danger to people, the environment and the apparatus. Be sure to follow proper safety procedures. Pressure gauges with measuring elements filled with water or mixtures containing water must be protected against frost. PMR06-~1.SAM 18.05.06 Page 3... -
Page 4: Maintenance
Be sure to take appropriate precautions and follow proper safety procedures. PMR06-~1.SAM 18.05.06 Page 4... - Page 5 -1200...0 mbar to 0...1600 bar Description: Typical applications: The pressure gauges of the PMR06 series operate according The PMR06 pressure gauges are used wherever precise to the bourdon tube principle. They can be supplied in brass pressure measurements are required.
- Page 6 0...4 Measuring element: 0...6 PMR06.xx.M: bourdon tube, up to 60 bar copper 0...10 alloy, soft-soldered, from 100 bar 0...16 stainless steel 1.4571, hard soldered 0...25 PMR06.xx.E: stainless steel bourdon tube 1.4571 0...40...
- Page 7 Options and Accessories: Models: Description: Code for type PMR06… Design for increased safety x.E…, unfilled, (break-proof partition wall and not for NG 250, blow-out rear wall) only model A, B Front ring polished models B,E,F Tropical-proof housing only unfilled devices Pointer movement stainless steel x.M…...
- Page 8 Precision Gauge Manometer in Test Case: Version...TK For mobile use, types PMR06.16… can be supplied in a service case complete with installation accessories. The mounting accessories include: • shut-off valve • clamping sleeve M20x1,5 - LH /RH acc. to DIN 16238 •...
