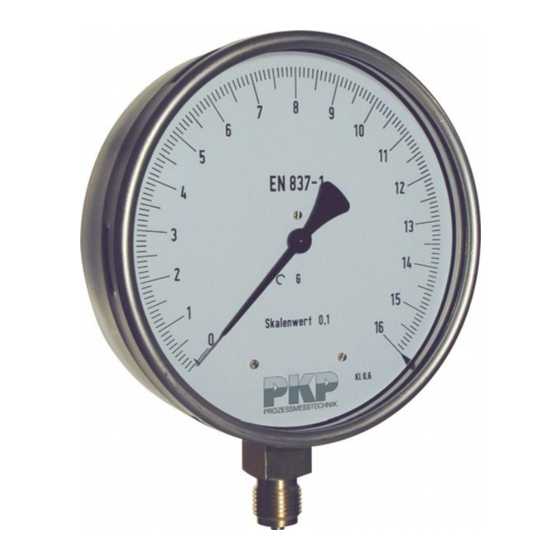

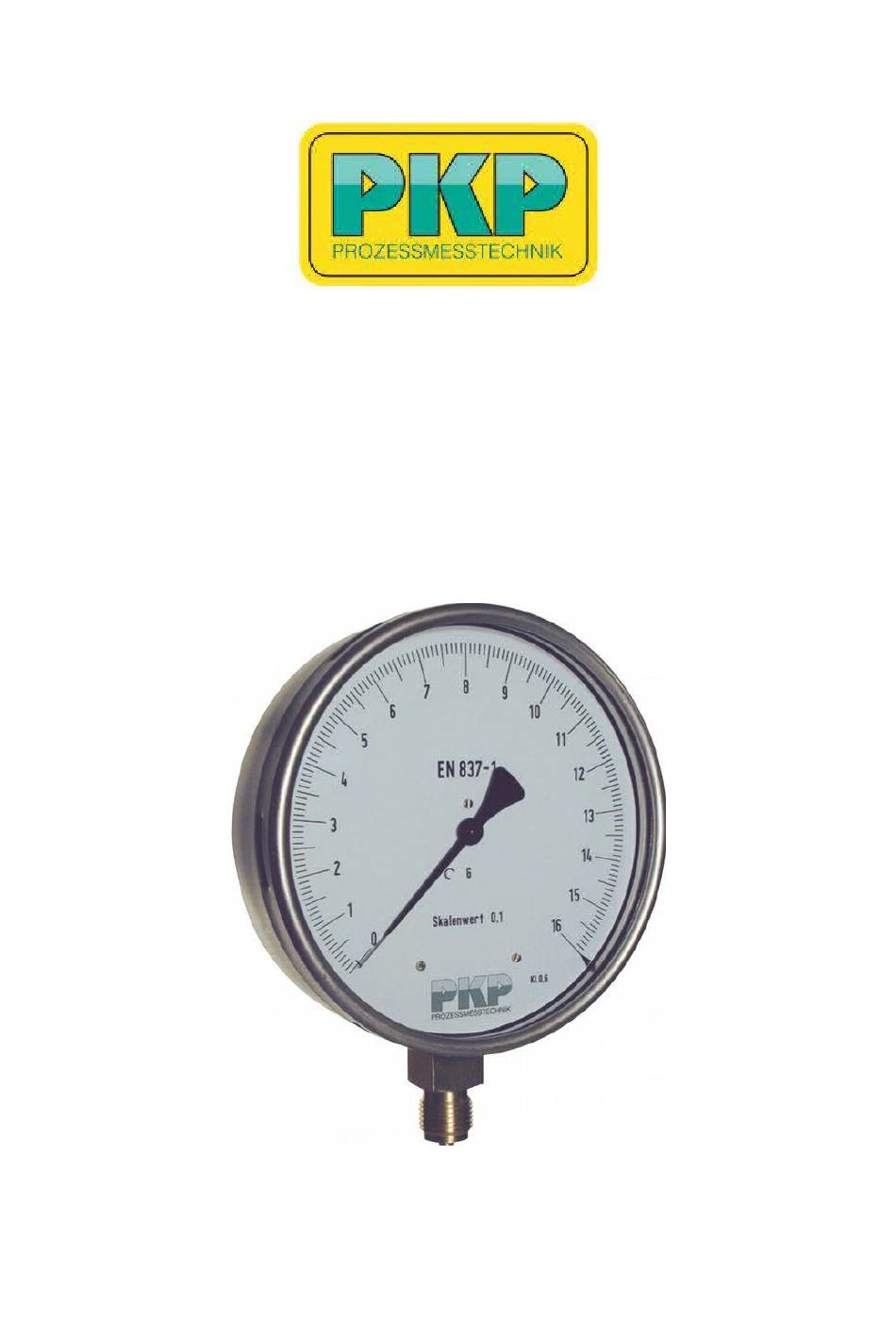

- Page 1 Instruction Manual PMR06 Precision Bourdon Tube Pressure Gauge PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de...
-
Page 2: Safety Information
Series PMR06 pressure gauges are designed for measuring different process pressures. Any application extending beyond this specific intended use does not constitute proper usage. Series PMR06 must not be employed as the sole means of avoiding hazardous conditions in machinery and installations. -
Page 3: Functional Description
Exposure to residue and deposits of materials being measured may pose a Caution: danger to people, the environment and the apparatus. Be sure to follow proper safety procedures. Pressure gauges with measuring elements filled with water or mixtures containing water must be protected against frost. PMR06-~1.SAM 18.05.06 Page 3... - Page 4 Be sure to take appropriate precautions and follow proper safety procedures. PMR06-~1.SAM 18.05.06 Page 4...
- Page 5 Description: Applications: Model series PMR06 precision pressure gauges operate Model series PMR06 precision pressure gauges are used according to the Bourdon tube principle. They can be sup- wherever precise pressure measurements have to be per- plied in brass or stainless steel versions, with filled or unfil- formed.
- Page 6 (optional for increased safety with 0...1.6 solid baffle wall and blow-out back) 0...2.5 Pressure responsive element: PMR06.xx.M: Bourdon tube, up to 60 bar copper alloy, 0...4 soft soldered As of 100 bar, stainless 0...6 steel 1.4571, brazed 0...10 PMR06.xx.E: Bourdon tube of stainless steel 1.4571 0...16...
-
Page 7: Options And Accessories
Weight (kg) and retaining clip PKP Prozessmesstechnik GmbH · Siemensstraße 7 · D-65205 Wiesbaden-Nordenstadt Tel.: + 49 (0) 61 22 - 70 55 - 0 · Fax: +49 (0) 61 22 - 70 55 - 50 e-mail: info@pkp.de · homepage: www.pkp.de... - Page 8 • Transition piece with test flange and accessories • Branched connection for test flange • Sturdy carrying case • Test log Dimensions Stainless steel PMR06.16... with shut-off angle valve and socket clamp Branched connection for test flange Test flange Mounting screw Brass Spacing bushing...
