Kramer VM-50AN User Manual
1:5 audio distributor
Hide thumbs
Also See for VM-50AN:
- User manual (12 pages) ,
- User manual (16 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer VM-50AN
Summary of Contents for Kramer VM-50AN
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VM-50AN 1:5 Audio Distributor... -
Page 2: Table Of Contents
Figures Figure 1: VM-50AN 1:5 Audio Distributor Figure 2: Connecting the VM-50AN as a Balanced Stereo 1:5 Audio Distributor Figure 3: Connecting the VM-50AN as an Unbalanced Stereo 1:5 Audio Distributor Figure 4: Connecting the VM-50AN as a 1:10 Audio Distributor... -
Page 3: Introduction
15Volts, thus enabling full broadcast audio levels 3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors” in the Products section) -
Page 4: Overview
Avoiding interference from neighboring electrical appliances and positioning your VM-50AN away from excessive sunlight, moisture and dust Your Audio Distributor Figure 1 illustrates the front and rear panels of the VM-50AN. Tables 1 and 2 define the front and rear panels of the VM-50AN, respectively. Overview... -
Page 5: Using Your Vm-50An 1:5 Audio Distributor

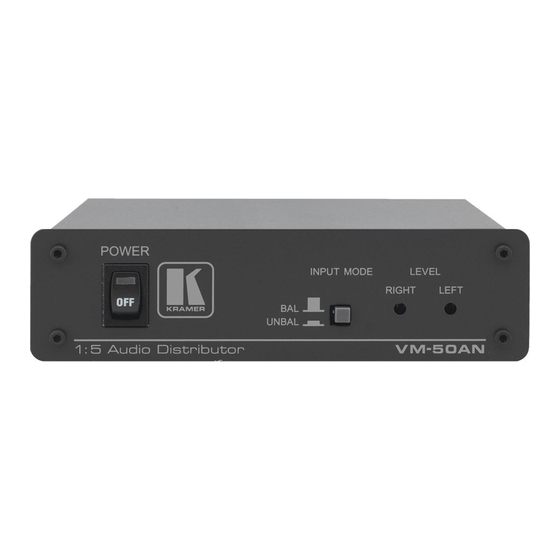

Using Your VM-50AN 1:5 Audio Distributor Figure 1: VM-50AN 1:5 Audio Distributor Table 1: Front Panel VM-50AN 1:5 Audio Distributor Features Feature POWER Switch BAL/UNBAL INPUT MODE Button Right LEVEL Trimmer Left LEVEL Trimmer Table 2: Rear Panel VM-50AN 1:5 Audio Distributor Features Feature INPUT Mini 3.5 mm Socket... -
Page 6: Connecting Your Vm-50An Balanced Stereo 1:5 Audio Distributor
Figure 2: Connecting the VM-50AN as a Balanced Stereo 1:5 Audio Distributor 1 Switch OFF the power on each device before connecting it to your VM-50AN. After connecting your VM-50AN, switch on its power and then switch on the power on each device... -
Page 7: Connecting Your Vm-50An Unbalanced Stereo 1:5 Audio Distributor
Figure 3: Connecting the VM-50AN as an Unbalanced Stereo 1:5 Audio Distributor 1 Switch OFF the power on each device before connecting it to your VM-50AN. After connecting your VM-50AN, switch on its power and then switch on the power on each device... -
Page 8: Connecting Your Vm-50An 1:10 Audio Distributor
Figure 4: Connecting the VM-50AN as a 1:10 Audio Distributor 1 Switch OFF the power on each device before connecting it to your VM-50AN. After connecting your VM-50AN, switch on its power and then switch on the power on each device... -
Page 9: Technical Specifications
0.6kg (1.3lbs.) approx. ACCESSORIES: 12 VDC power supply OPTIONS: 19" rack adapter RK-50RN kit (holds 2 units in a vertical space of a standard 19” rack) 1 Specifications are subject to change without notice Technical Specifications of the VM-50AN 1:5 Audio Distributor... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
